AquaForce® 5200 Solids-Handling Pond Pump

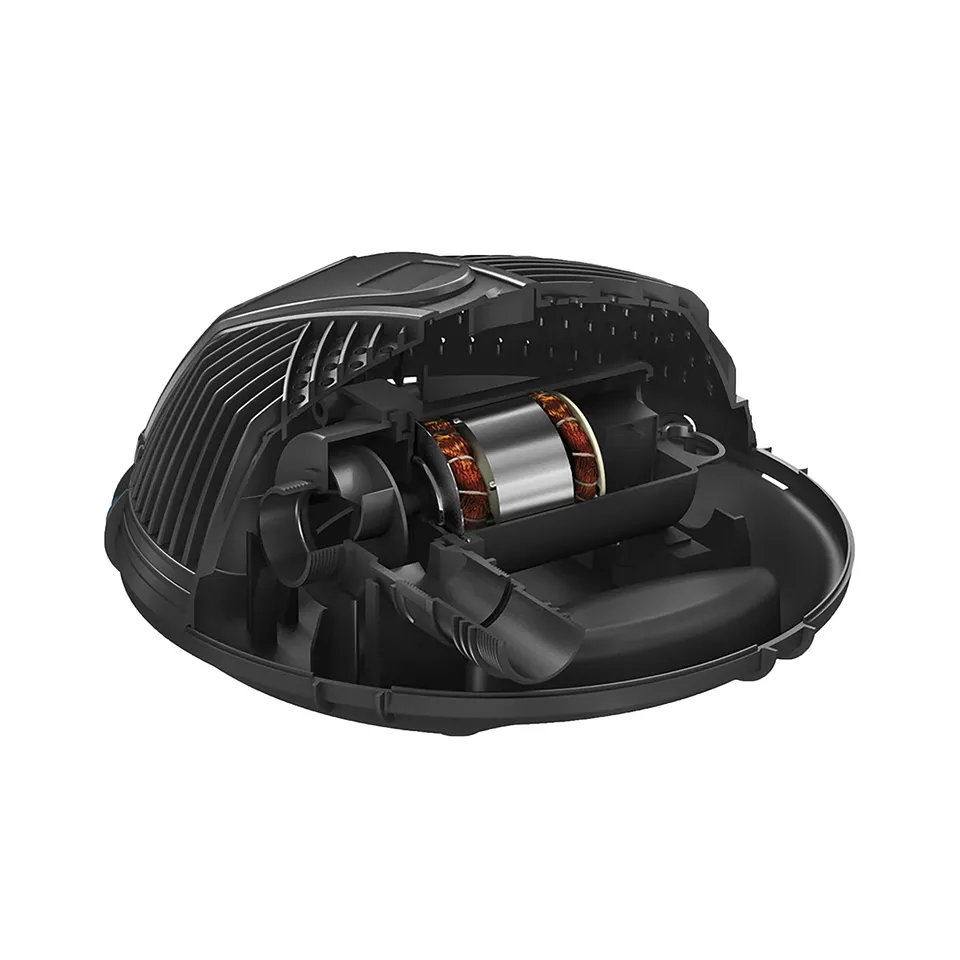

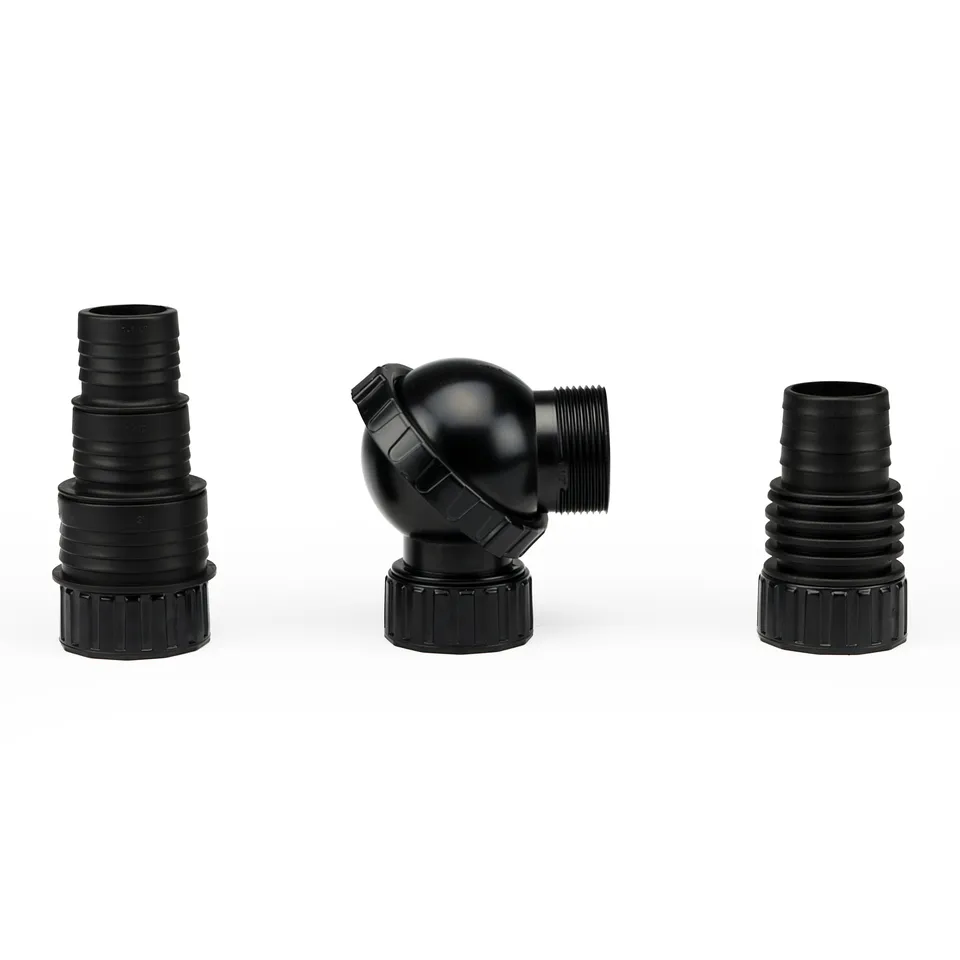

The Aquaforce 5200 Pond Pump provides flow-rates up to 5,284 gallons per hour and is ideal for use in ponds, waterfalls, and other water feature applications. A protective pre-filter cage and wide, flat base allows the pump to be placed directly into the pond. The pump’s asynchronous motor technology is extremely energy efficient, saving hundreds of dollars over traditional water pumps. Its oil-free design and high-torque performance will provide years of trouble-free operation, while the protective pump cage will handle solids up to one quarter of an inch, preventing clogging and reducing maintenance. A variety of fittings is included for simple installation, including a rotational ball output which allows the discharge position to be easily adjusted for simple installation. The AquaForce 5200 is backed by a 3-Year Limited Warranty. Aquascape is passionate about the products we produce, providing unique products, designs, and features that stand above the competition.

SKU: 91013 Category:


  • Ideal for use with ponds, external pressure filters, and waterfalls
  • Protective cage allows the pump to be placed directly into the pond
  • Extremely energy-efficient, saving hundreds of dollars
  • Comes complete with fittings for quick and easy installation
  • 3-Year Limited Warranty

AquaForce® Instructions

 AquaForce 5200
Model Number 91013
Flow Rate (GPH)
Adjustable FlowNo
Head Height
24 feet
Motor Type Asynchronous
Wattage 360
Amperage 3
Power Cord
25 feet
Pump Discharge
1.5-inch MPT
Pipe Diameter
1.25 – 2 inch

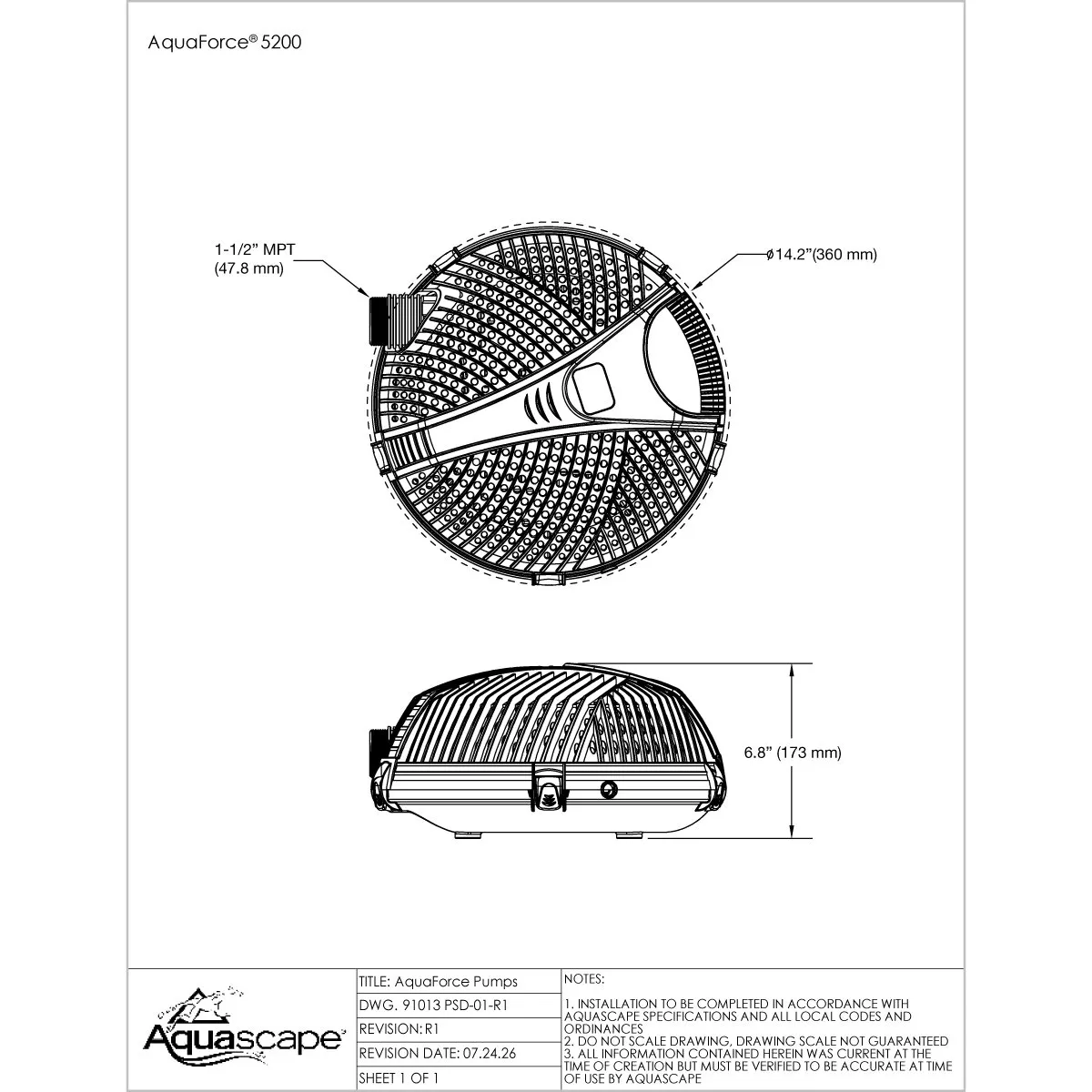

14 x 14 x 6.5 inches
Remote & ReceiverNo
Warranty (Limited) 3 years
