EcoWave® Pond Pumps

Ideal for use in pond skimmers and Pondless® Waterfall Vaults

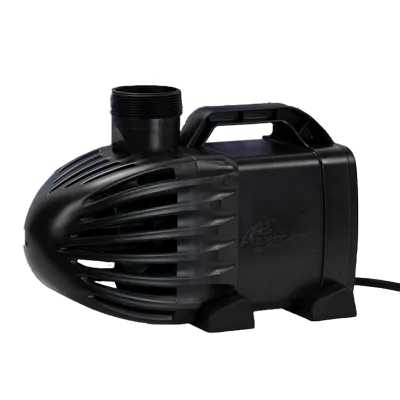

Aquascape EcoWave® Pumps

Aquascape EcoWave® Pond Pumps are magnetically-driven (mag-drive) pond and waterfall pumps developed to provide high flow rates at low head heights. The internal, smart mag-drive motor technology and vortex style impeller ensure unmatched electrical efficiency, minimizing the electrical consumption of your pond or waterfall. EcoWave Pond Pumps are ideal for use in pond skimmers and Pondless® Waterfall Vault applications.

Features of EcoWave® Pond Pumps

Learn the many features and benefits of EcoWave Pond Pumps. EcoWave Pond Pumps are ideal for use in pond skimmers and Pondless® Waterfall Vault applications.

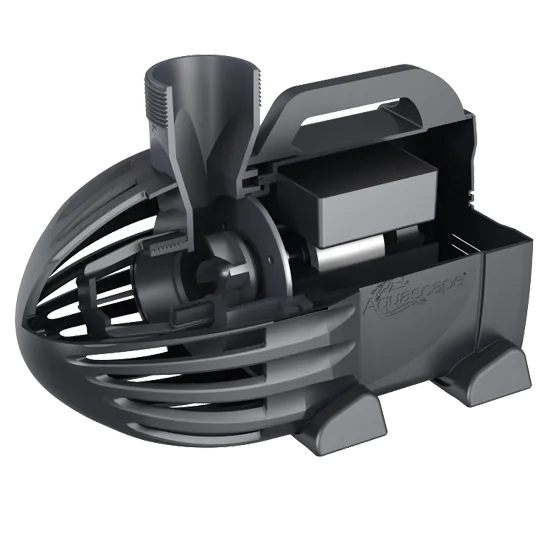

EcoWave Pump Cutaway

1

2

3

4

5

6

7

1

Protective Filter

Protective filter screen reduces maintenance and prevents damage to the pump.

2

Durable Housing

Durable thermoplastic housing will not corrode or rust.

3

High-flow

High-flow vortex impeller maximizes water flow.

4

Smart Mag-drive Motor

Smart mag-drive motor provides significant electrical cost savings.

5

Energy Efficient

Internal PC board provides high flow rates with unmatched electrical efficiency.

6

Overload Sensor

Built-in overload sensor prevents pump damage.

7

Quiet Operation

The wide, flat base and rubber feet make the pump stable and reduce vibration.

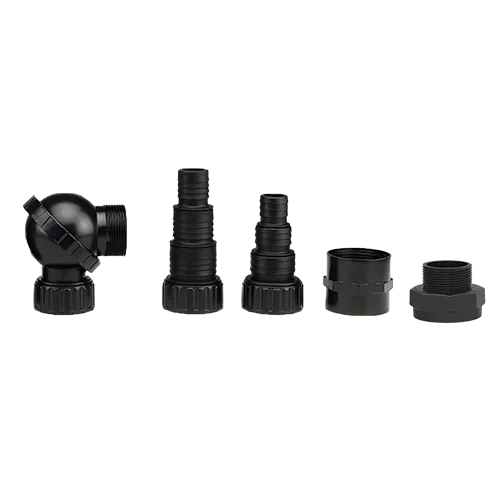

Included Fittings

1 x 1.5″ Rotational Ball Output,
2 x 1″, 1.25″, 1.5″ Multi-Hose Fittings,
1 x 1.5″ Female Coupling,
1 x 2″ FPT x 1.5″ MPT

EcoWave® Pond and Pondless Waterfall Applications

EcoWave Pump Application
Pond
Pondless Waterfall

Compare EcoWave® Pumps

EcoWave 2000EcoWave 3000EcoWave 4000EcoWave 5000
Model Number91131911329113391134
Maximum Flow Rate (GPH)2,0202,9604,0005,000
Maximum Head Height14.4 feet17.5 feet20 feet21 feet
Motor TypeMag-driveMag-driveMag-driveMag-drive
Wattage6590130150
Amperage0.540.751.081.25
Power Cord Length20 feet20 feet20 feet20 feet
Pump Discharge Diameter2" MPT2" MPT2" MPT2" MPT
Ideal Pipe Diameter1.5 - 2 inch1.5 - 2 inch1.5 - 2 inch2 inch
Pump Dimensions11 x 5.75 x 7.5 inches (LxWxH)11 x 5.75 x 7.5 inches (LxWxH)11 x 5.75 x 7.5 inches (LxWxH)11 x 5.75 x 7.5 inches (LxWxH)
Warranty (Limited)3 years3 years3 years3 years
View Product

View Product

View Product

View Product

Selecting the Proper Pump Size

Once you’ve determined which Aquascape pump family best suits your water feature application, you’ll need to select the proper size pump.

Length in Feet
Width in Feet
Avg Depth in Feet
Width in Inches
Elevation in Feet
Pipe Length in Feet
Pipe Diameter

Confirm your Water Feature Type

What type of water feature do you have? Select where the pump will be used, either in a "Pond" or "Pondless" water feature.

Pump Application
Pond
Pondless

Pond Volume

A basic pond pump will have the capability of turning the total volume of water over once per hour. Therefore, before choosing a pond pump, you need to know the number of gallons of water in your feature. You can find the volume of your pond in gallons with this useful equation:

(Length x Width x Average Depth x 7.48) x 0.8 = Pond Volume*

*Length, Width and Depth are measured in feet. We multiply by 0.8 to account for rocks in the pond.

Stream Volume

Before choosing a pump for your Pondless Waterfall, it would help to know approximately how many gallons of water your basin needs to hold. To do that, we will need to determine how much water is in the stream. You can find the volume of your stream in gallons with this useful equation:

(Stream Length x Stream Width x (Average Stream Depth x 0.25) x 7.48 = Stream Volume*

*Length and Width are measured in feet. For the purposes of this calculator we are assuming an average depth of 1 inch.


Your pump needs to remain fully submerged while running and the stream is full. We recommend the basin is large enough to hold double the amount of water found in the stream.

Stream Volume x 2 = Gallons in Basin

Flow Rate

Most pond pumps are rated by the gallons of water they're able to pump per hour (gph). As a general rule of thumb, a pump with a flow rate of 125 gph is needed for every inch of your waterfall width. So if the widest point in the waterfall is two feet wide, you'll need a pump with a flow rate of 3000 gph. Higher flow rates can be used if you want to produce a stronger, more dramatic water flow.

Waterfall Width x 125 = Apprx. Flow Rate*

*Waterfall width measured in inches

Head Height

Head height, also known as total dynamic head, represents the height water needs to be lifted (static head) plus the friction experienced by the water as it runs through the pipes (dynamic head).

Dynamic head is the amount of resistance caused by the plumbing. Water velocity (flow rate), pipe diameter, length and pipe material all play a role in dynamic head. Additional resistance will also be caused by fittings such as elbows and valves. Since this equipment is typically buried in the ground, sometimes an estimation of dynamic head needs to be used.

The calculation below is a simple way to estimate the approximate head height.

Static Head in feet + (Pipe Length in feet x 0.1) = Apprx. Head Height*

*Static head: The height difference between the surface of the pond and the waterfall
Pipe length: We're calculating 1 ft head per 10 ft tubing
Fittings: additional fittings would add 1 ft of head each


The pond calculator is designed to help you find the pump you need for your project. Be advised that variables outside of this calculator, such as pipe diameter or number of elbows used, can influence proper pump selection. If your pond project exceeds the performance from a single pump, please contact Aquascape Customer Care for additional help.

EcoWave® Pump Flow Chart (GPH)

Pump Flow Chart -  EcoWave
ModelPurchaseMax Head Height0'2.5'5'7.5'10'12.5'15'17.5'20'
20001308514.4'20201350860650400150
30001308717.5'2960215014701100850550300
40001308820'400029502210165012501000750400
50001308921'5000405032052450185014501100750300
