Ultra Water Pumps

The complete solution for small ponds, fountains, ornamental spitters, and water features

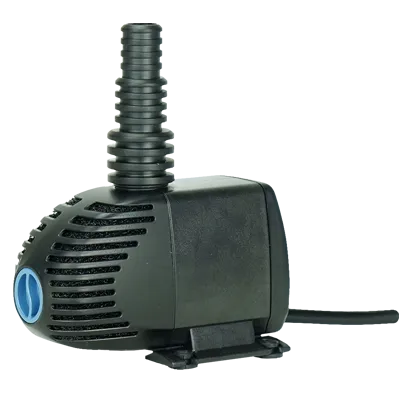

Ultra Pump 2000

Aquascape Ultra Pump Series

A complete solution for supplying water to run fountains, water features, external filters and spitting ornaments, Aquascape Ultra Pumps feature a three-way splitter with valve and multi-hose adapter that makes it simple to connection to almost all hose sizes.

The Ultra Pump’s magnetically driven (mag drive) motor technology makes this pump extremely energy efficient — saving hundreds of dollars over traditional pumps — and the oil-free design helps prevent pond contamination.

Features of Ultra Pumps

Learn the many features and benefits of Aquascape Ultra Pumps. This energy-efficient pump is ideal for use with fountains, external filters, small ponds, and other various water feature applications.

Ultra Pump Cutaway

1

2

3

1

Protective Cover

Protective pump input strainer cover and sponge filter prevents debris from damaging pump,thereby reducing maintenance and prolonging pump life.

2

Simple and Efficient

Mag-drive motor technology makes this pump energy efficient and simple to maintain.

3

Stable

The wide, flat base and rubber feet make the pump stable and reduce vibration.

Included Accessories

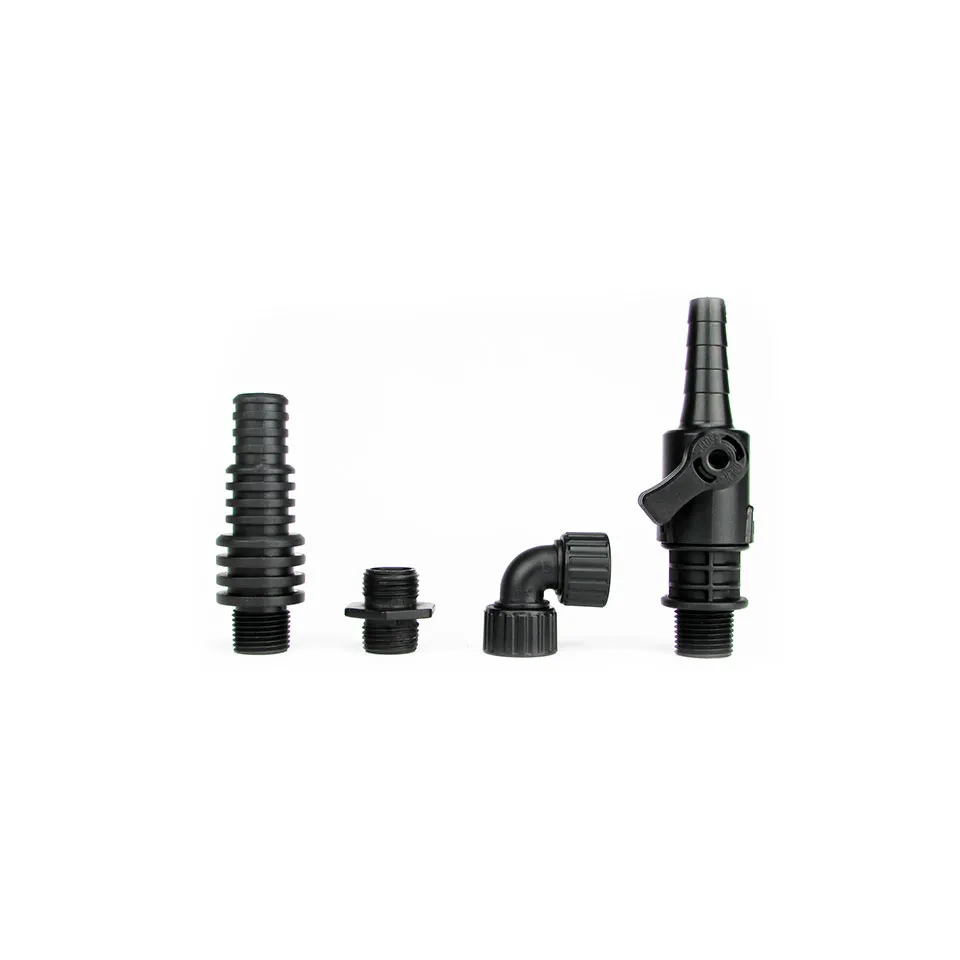

Included in the Ultra 400, 550 & 800

3/4″, 1″, 11/4″ Multi-Hose Adapter, 1/2″ MPT Coupling, FPT 90° Elbow 1/2″, 1/2″ Valve

Included in the Ultra 1100, 1500 & 2000

3/4″, 1″, 11/4″ Multi-Hose Adapter, 1″, 11/4″, 11/2″ Mulit-Hose Adapter, 3/4″ MPT Coupling, FPT 90° Elbow 3/4″, 3/4″ 3-Way
Valve

Optional Accessories

Add a new dimension to the Ultra Water Pump with the addition of the optional Ultra Pump Fountain Head Kit. Each kit
includes three fountain heads and diverter valve to adjust the fountain height and allow for the diversion of water to
an external filter or waterfall.

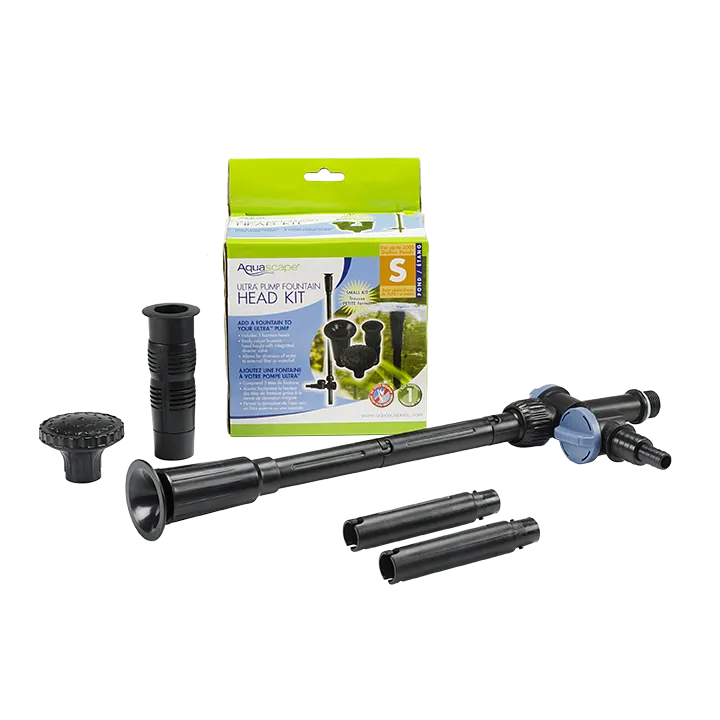

Small Ultra Pump Fountain Head Kit

Add a fountain to your Aquascape Ultra 400, 500, or 800 Pump (2012 to present), using its ½ inch male-threaded connection.

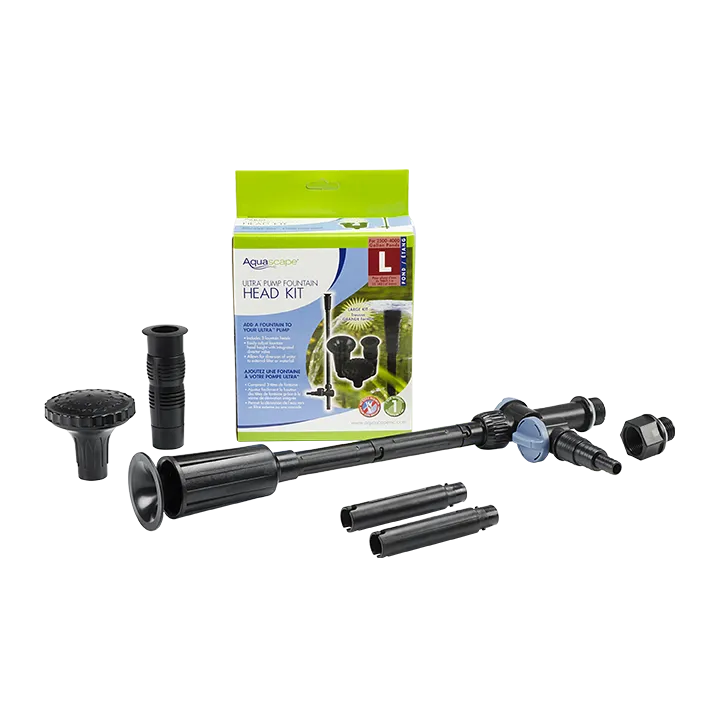

Large Ultra Pump Fountain Head Kit

Add a fountain to your Aquascape Ultra 1100, 1500, or 2000 Pump (2012 to present), using its ¾ inch male-threaded connection.

Compare Ultra Pumps


  Ultra Pump 400 Ultra Pump 550 Ultra Pump 800 Ultra Pump 1100 Ultra Pump 1500 Ultra Pump 2000
  View Product View Product View Product View Product View Product View Product
Model Number 91005 91006 91007 91008 91009 91010
Maximum
Flow Rate (GPH)
370 528 793 1,110 1,480 1,982
Maximum
Head Height
7.5 feet 8 feet 9 feet 12 feet 16.5 feet 20 feet
Motor Type Mag-drive Mag-drive Mag-drive Mag-drive Mag-drive Mag-drive
Wattage 24 33 58 92 153 250
Amperage 0.40 0.55 0.80 0.85 1.46 2.60
Power Cord
Length
12 feet 12 feet 25 feet 25 feet 25 feet 25 feet
Pump Discharge
Diameter
1/2", 3/4", 1", and 1-1/4" 1/2", 3/4", 1", and 1-1/4" 1/2", 3/4", 1", and 1-1/4" 3/4", 1", and 1-1/4" 3/4", 1", and 1-1/4" 3/4", 1", and 1-1/4"
Optimum
Pipe Diameter
1/2 - 1 inch 1/2 - 1 inch 1/2 - 1 inch 3/4 - 1.25 inch 3/4 - 1.25 inch 3/4 - 1.25 inch
Pump
Dimensions
5.5 x 4 x 3.5 inches
(LxWxH)
6 x 4 x 4 inches
(LxWxH)
6 x 4 x 4 inches
(LxWxH)
9 x 5 x 6 inches
(LxWxH)
9.5 x 6 x 7 inches
(LxWxH)
9.5 x 6 x 7 inches
(LxWxH)
Warranty (Limited) 3 years 3 years 3 years 3 years 3 years 3 years

Ultra Pump Flow Chart (GPH)

Ultra Pump Chart

Documents

Instruction Manuals
