AquaJet® Pond Pumps

Ideal for ponds up to 2,000 gallons

AquaJet Pump Series

AquaJet Pond Pump Series

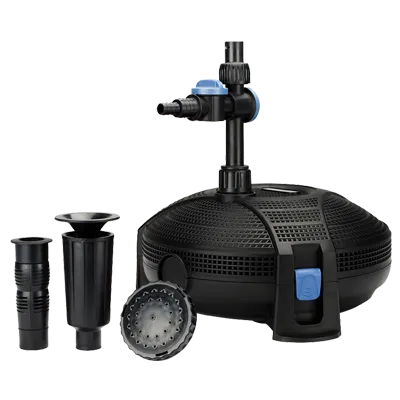

AquaJet® Pond Pumps are ideal for ponds up to 2,000 gallons. These all-in-one kits provide a stunning water fountain with the choice of three included fountain heads and an integrated diverter valve to supply water to a small waterfall, external filters, or spitting ornaments.

Features of AquaJet Pond Pumps

Learn the many features and benefits of AquaJet Pond Pumps.

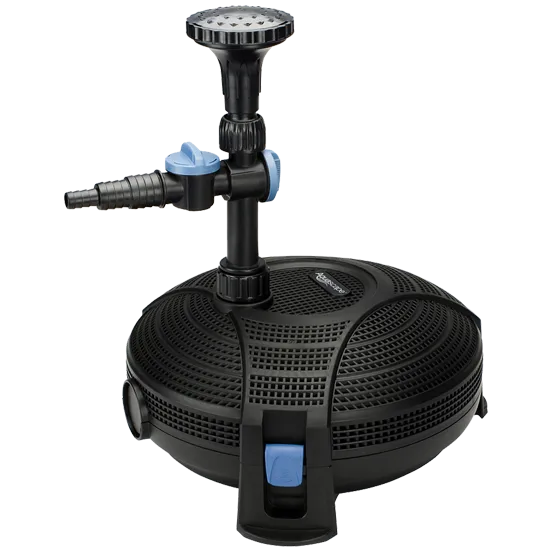

AquaJet Cutaway

1

2

3

4

5

6

1

Adjustable Height

The adjustable riser stem allows for easy height adjustment from 10 to 20 inches

2

Diverter and Flow Control

Adjustable diverter and flow control allows water to be used for fountainhead, circulation, and additional equipment like spitters or external filters and waterfalls

3

Threaded Disconnect

Simple and secure-threaded disconnect allows for the pump to be easily removed from the pond for maintenance or winterization without removing hose clamps or plumbing assemblies

4

Protective Pump Cage

Protective pump cage prevents debris from clogging or damaging pump, thereby reducing maintenance

5

Energy Efficient

Mag-drive motor technology makes this pump energy efficient and simple to maintain

6

Pump Cage Clips

Pump cage clips make it easy to open to perform pump maintenance or remove debris

Add a New Dimension to Your Pond

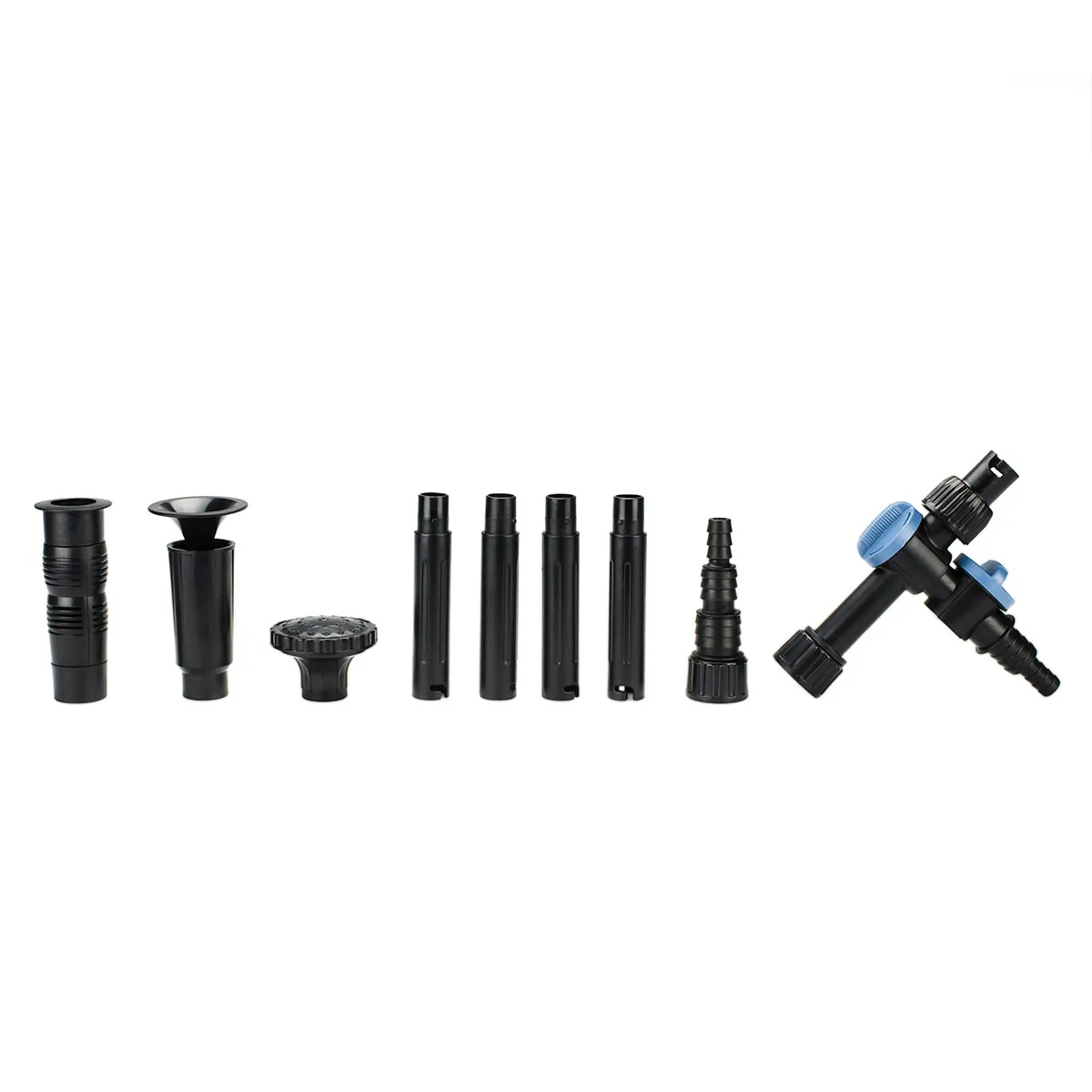

Each AquaJet pump comes complete with three fountain heads, including foaming jet, daisy, and waterbell

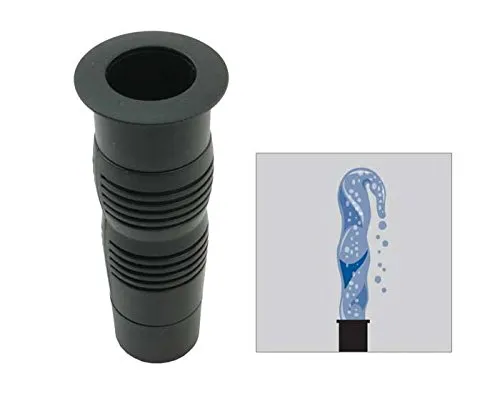

AquaJet Foaming Jet

Foaming Jet

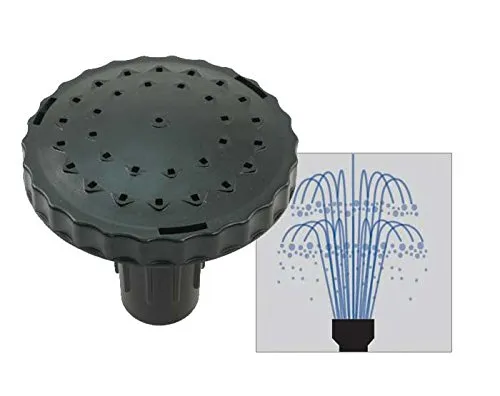

AquaJet Daisy

Daisy

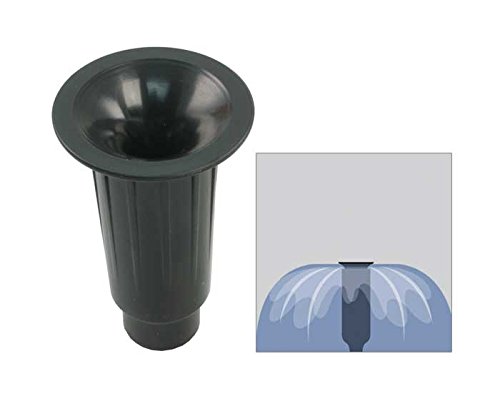

AquaJet Waterbell

Waterbell

AquaJet Pond Applications

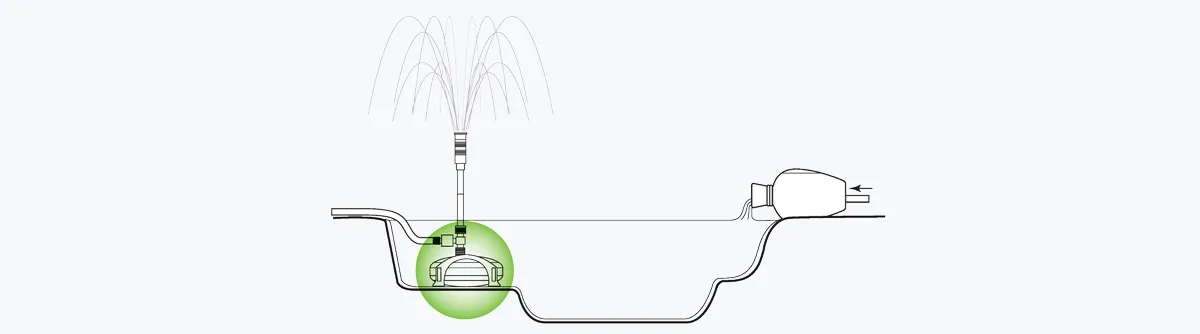

The AquaJet® protective pre-filter cage allows the pump to be placed directly into the pond.

Compare AquaJet Pond Pumps


  AquaJet 600 AquaJet 1300 AquaJet 2000
  View Product View Product View Product
Model Number 91014 91015 91016
Pond Size Recommendation 1,200 gal 1,300 gal 2,000 gal
Maximum Fountain Height
(Daisy Fountain)
up to 47 inches up to 62 inches up to 65 inches
Motor Type Mag-drive Mag-drive Mag-drive
Wattage 33 110 250
Amperage 0.55 1.00 2.60
Power Cord Length 25 feet 25 feet 25 feet
Pump Discharge Diameter on Diverter 1/2", 3/4" 1/2", 3/4" 1/2", 3/4", 1"
Pump Dimensions 12 x 12 x 6 inches
(LxWxH)
12 x 12 x 6 inches
(LxWxH)
12 x 12 x 6 inches
(LxWxH)
Warranty (Limited) 3 years 3 years 3 years

Selecting the Proper Pump Size

Once you’ve determined which Aquascape pump family best suits your water feature application, you’ll need to select the proper size pump.

Length in Feet
Width in Feet
Avg Depth in Feet
Width in Inches
Elevation in Feet (Static Head)
Pipe Length in Feet

Pond Volume

A basic pond pump will have the capability of turning the total volume of water over once per hour. Therefore, before choosing a pond pump, you need to know the number of gallons of water in your feature. You can find the volume of your pond in gallons with this useful equation:

(Length x Width x Average Depth x 7.48) x 0.8 = US Gallons*

*Length, Width and Depth are measured in feet

Pond Volume

A basic pond pump will have the capability of turning the total volume of water over once per hour. Therefore, before choosing a pond pump, you need to know the number of gallons of water in your feature. You can find the volume of your pond in gallons with this useful equation:

(Length x Width x Average Depth x 7.48) x 0.8 = US Gallons*

*Length, Width and Depth are measured in feet. We multiply by 0.8 to account for rocks in the pond.

Flow Rate

Most pond pumps are rated by the gallons of water they're able to pump per hour (GPH). As a general rule of thumb, a pump with a flow rate of 1500 GPH is needed for every foot of the length of the spillway (the weir, which is the horizontal width of the waterfall opening). So if your waterfall spillway is two feet wide, you'll need a pump with a flow rate of 3000 GPH.

Waterfall Width x 125 = Apprx. Flow Rate*

*Waterfall width measured in inches

Head Height

Head height, also known as total dynamic head, represents the height water needs to be lifted (static head) plus the friction experienced by the water as it runs through the pipes (dynamic head).

Dynamic head is the amount of resistance caused by the plumbing. Water velocity (flow rate), pipe diameter, length and pipe material all play a role in dynamic head. Additional resistance will also be caused by fittings such as elbows and valves. Since this equipment is typically buried in the ground, sometimes an estimation of dynamic head needs to be used.

The calculation below is a simple way to estimate the approximate head height.

Static Head in feet + (Pipe Length in feet x 0.1) = Apprx. Head Height*

*Static head: The height difference between the surface of the pond and the waterfall
Pipe length: We're calculating 1 ft head per 10 ft tubing
Fittings: additional fittings would add 1 ft of head each

The pond calculator is designed to help you find the pump you need for your project. Be advised that variables outside of this calculator, such as pipe diameter or number of elbows used, can influence proper pump selection. If your pond project exceeds the performance from a single pump, please contact Aquascape Customer Care for additional help.

AquaJet Pond Pump Flow Chart (GPH)
