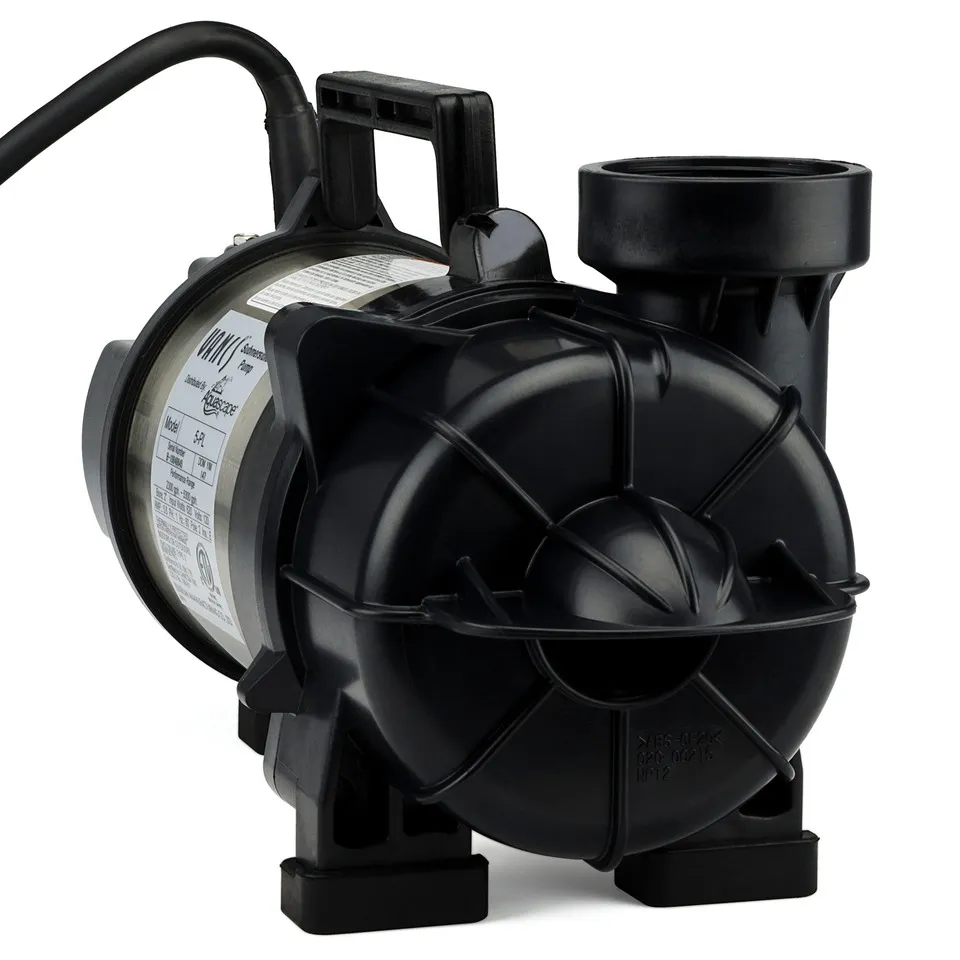

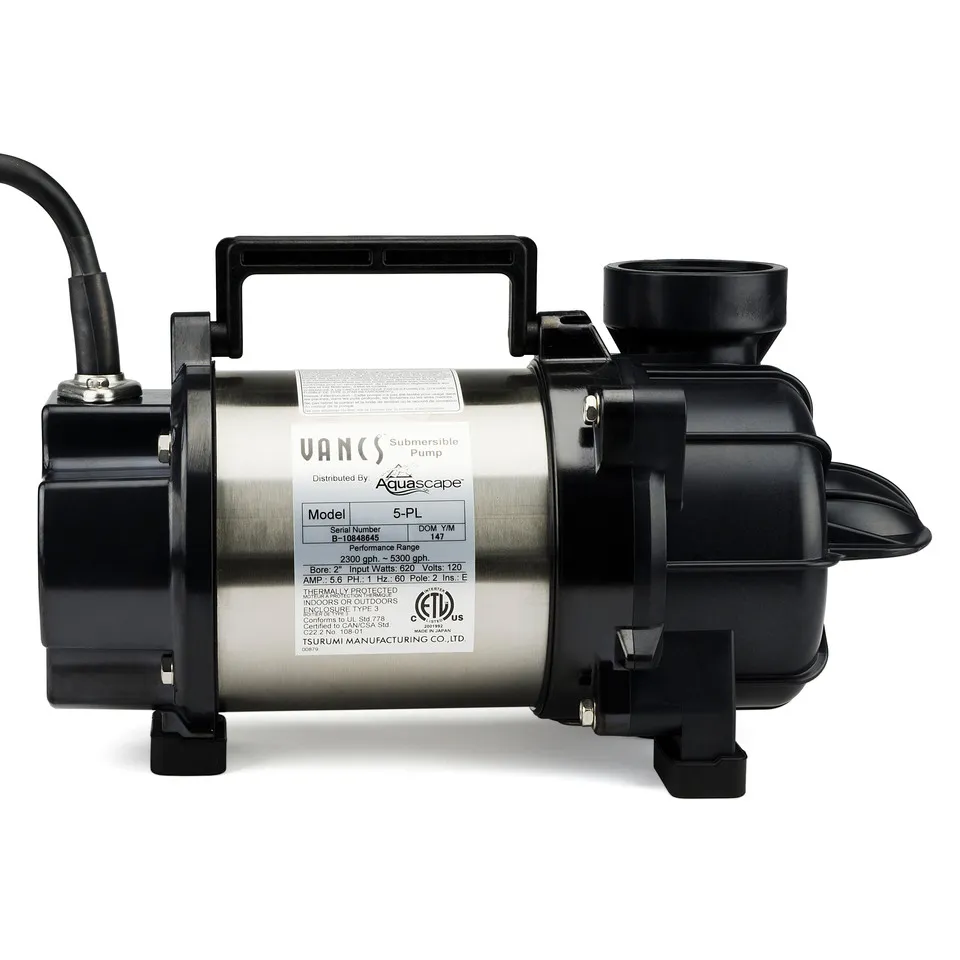

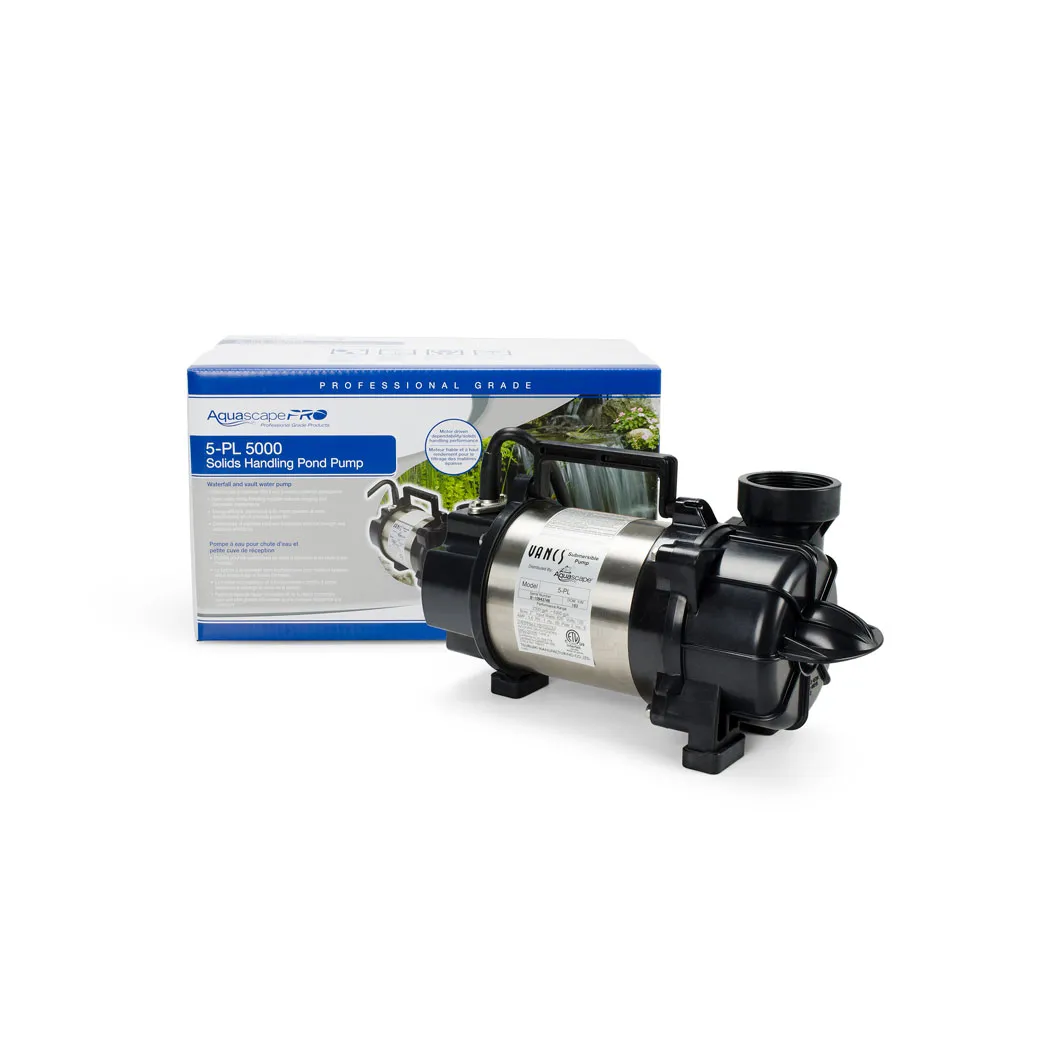

5-PL 5000 Solids-Handling Pond Pump

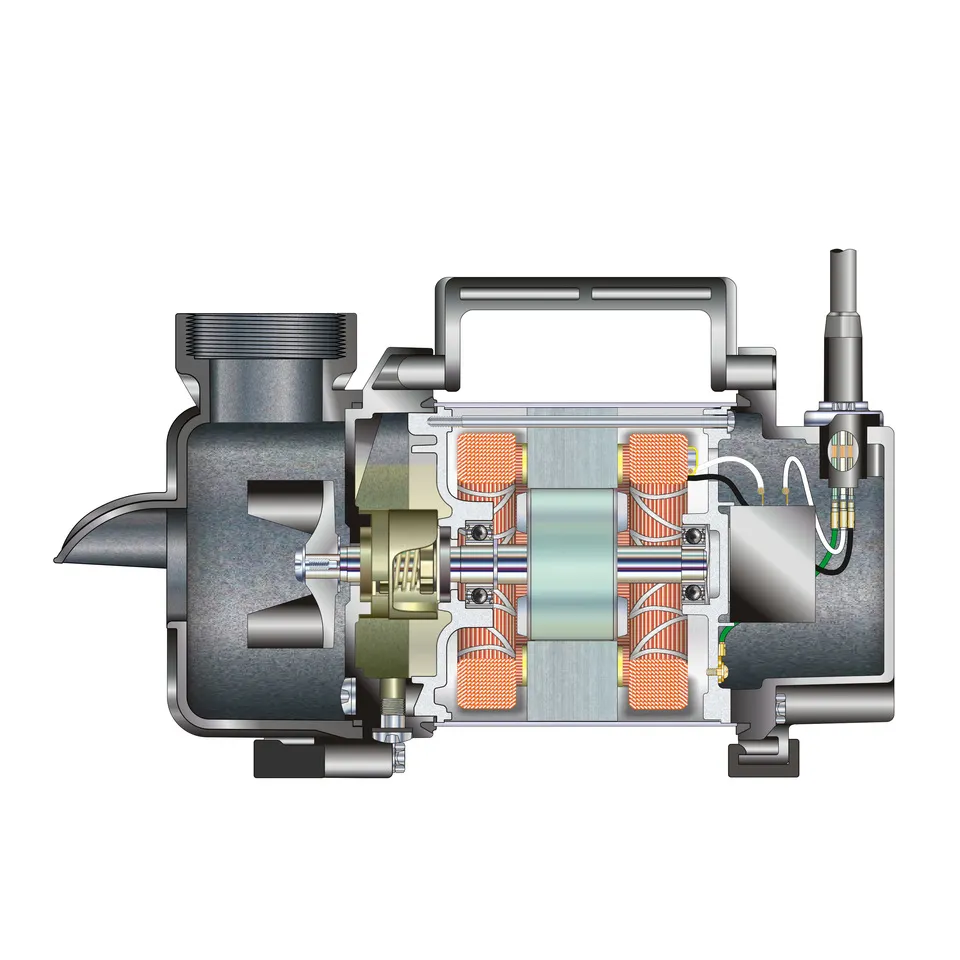

The Aquascape 5-PL 5000 Solids-Handling Pond Pump is ideal for use in ponds, Pondless® waterfalls, and other water feature applications. Known for durability, performance, and value, the 5-PL 5000 Solids-Handling Pond Pump is constructed of stainless steel and composite resin for strength and corrosion resistance. The pump has a maximum flow rate up to 5,300 gallons per hour and its semi-vortex impeller design enables the pump to handle solids effectively, resulting in less maintenance and trouble-free performance. The energy-efficient, continuous-duty, direct-drive motor operates at lower temperatures, extending the life of the pump significantly. The pump also contains a built-in thermal overload, protecting it from damage if ever run in low-water conditions. The 2-inch threaded discharge makes installation quick and easy. The 5-PL 5000 Solids-Handling Pond Pump also carries a 2-year limited warranty.

$899.99

WARNING - California Proposition 65
Learn More

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Ce produit contient des produits chimiques reconnus par l'État de Californie pour causer le cancer et des malformations congénitales ou d'autres problèmes de reproduction. Pour plus d'informations, visitez www.p65warnings.ca.gov

  • Ideal for use in ponds, waterfalls, and other water features
  • Constructed of stainless steel and composite resin for strength and corrosion resistance
  • Maximum flow rate up to 5,300 gallons per hour
  • Semi-vortex, solids-handling impeller decreases maintenance
  • 2-Year Limited Warranty

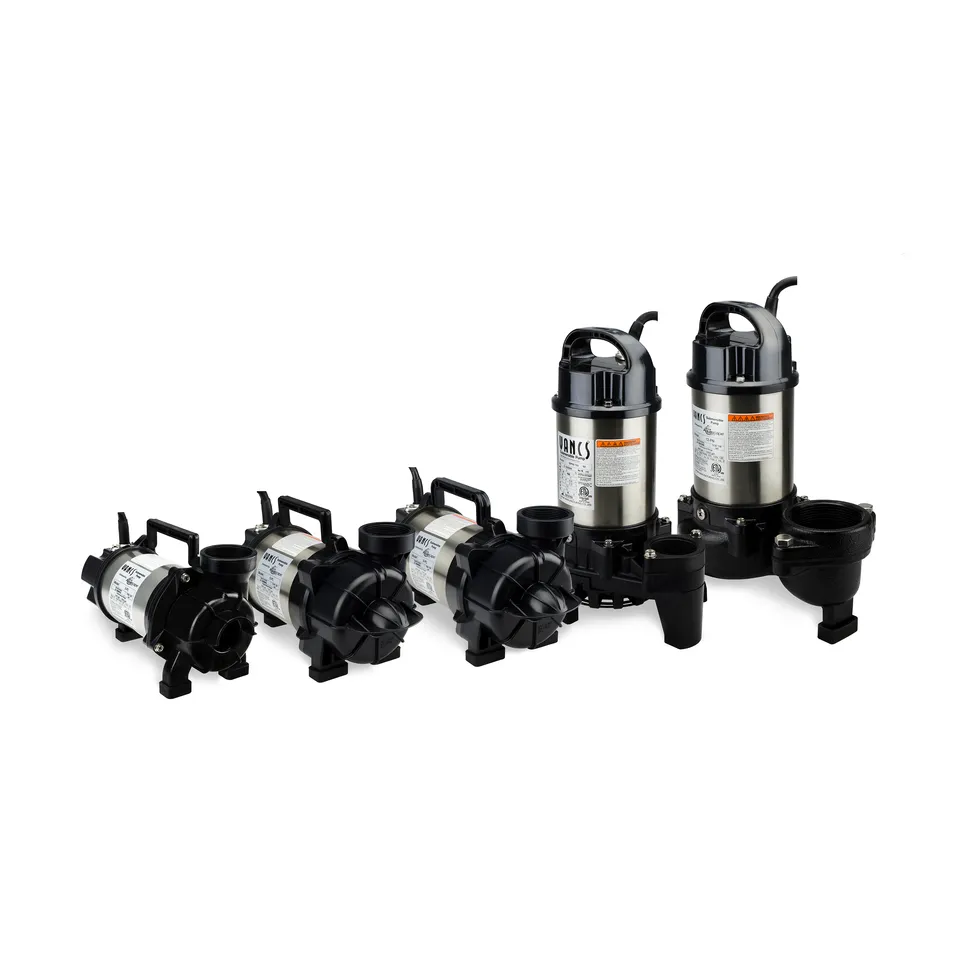

Pump Flow Chart - PL/PN
ModelPurchaseMax Head Height0'5'10'15'20'25'30'35'40'45'50'55'
3-PL965814'30001700
5-PL964423'5300450035001800
9-PL963135'730064005600490041003000
8-PN 961756'55005200480043003600280020001500600
12-PN960423'10000760046001500

Videos

3PL5PL9PL8PN12PN
3PL5PL9PL8PN12PN
Item Number2997529976299772949530391
Maximum Flow Rate (GPH)3,3005,3007,3005,54810,000
Maximum Head Height14 feet23 feet35 feet56 feet23 feet
Motor TypeDirect DriveDirect DriveDirect DriveDirect DriveDirect Drive
Wattage32062010001000900
Amperage3.15.68.69.19.1
Power Cord Length20 feet20 feet20 feet20 feet20 feet
Pump Discharge Diameter2 inch2 inch2 inch2 inch3 inch
Ideal Pipe Diameter1.5 or 2 inch2 or 3 inch2 or 3 inch2 or 3 inch3 inch

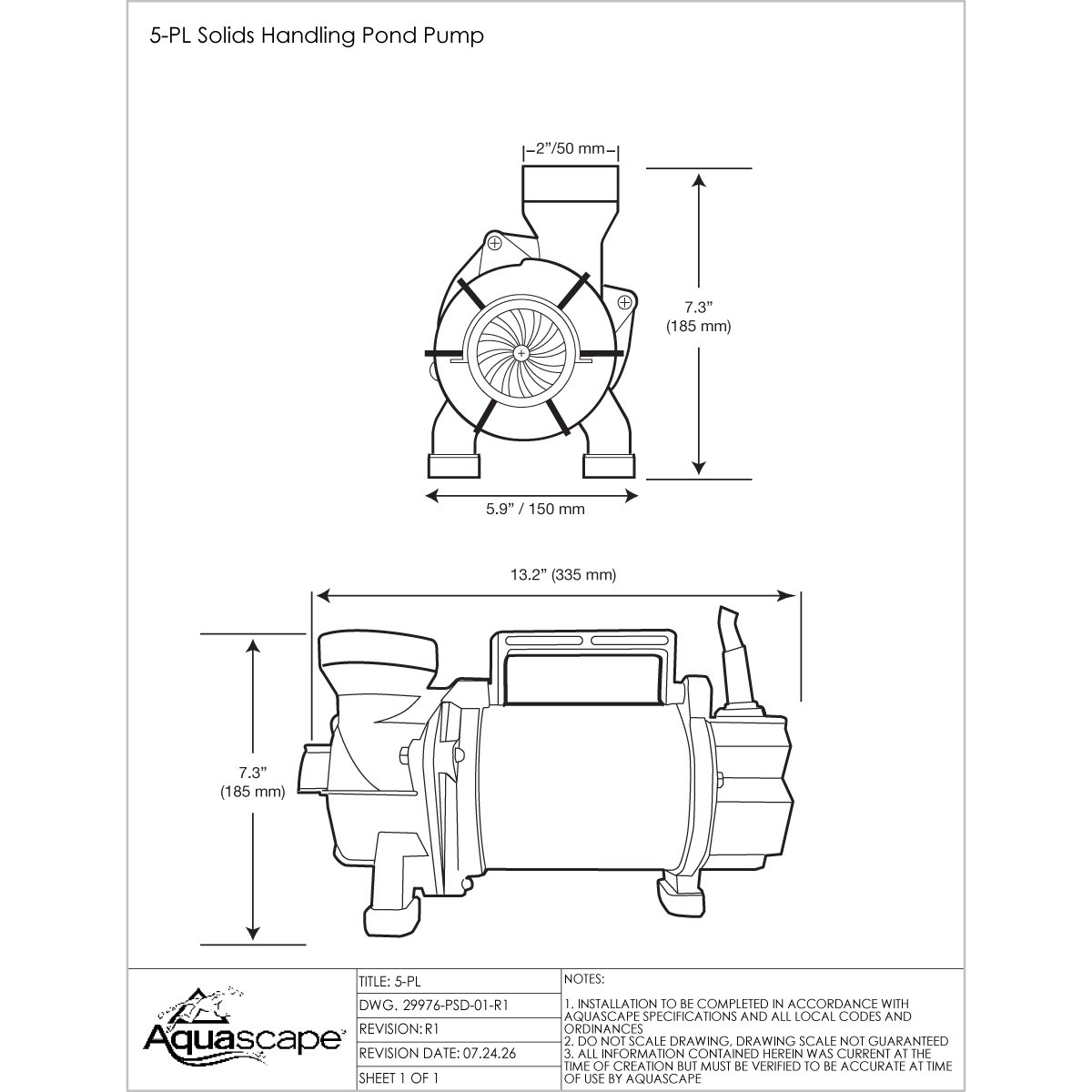

Pump Dimensions12.2 x 5.6 x 7.1 inches (LxWxH)13.2 x 5.9 x 7.3 inches (LxWxH)14 x 5.9 x 7.3 inches (LxWxH)9.3 x 6.4 x 15 inches (LxWxH)11.7 x 7.7 x 15.1 inches (LxWxH)
Warranty (Limited)2 years2 years2 years2 years2 years
View Product

View Product

View Product

View Product

View Product

  ProductPrice
1
5-PL 5000 ImpellerSKU: 30321$69.99
2
5-PL 5000/9-PL 7000 CasingSKU: 30324$139.99
3
5-PL 5000/9-PL 7000/8-PN 5500/12-PN 10,000 OilSKU: 30213$34.99
