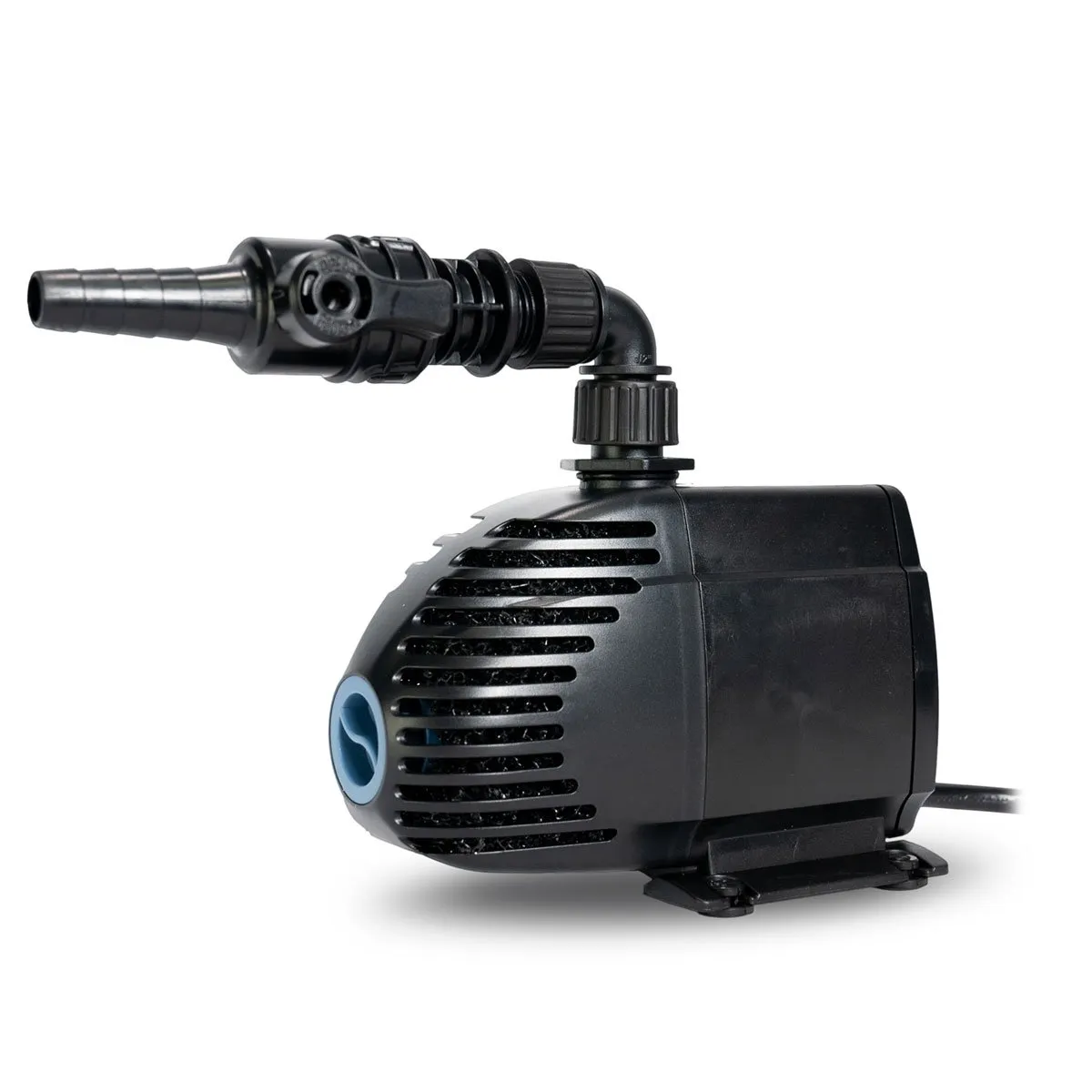

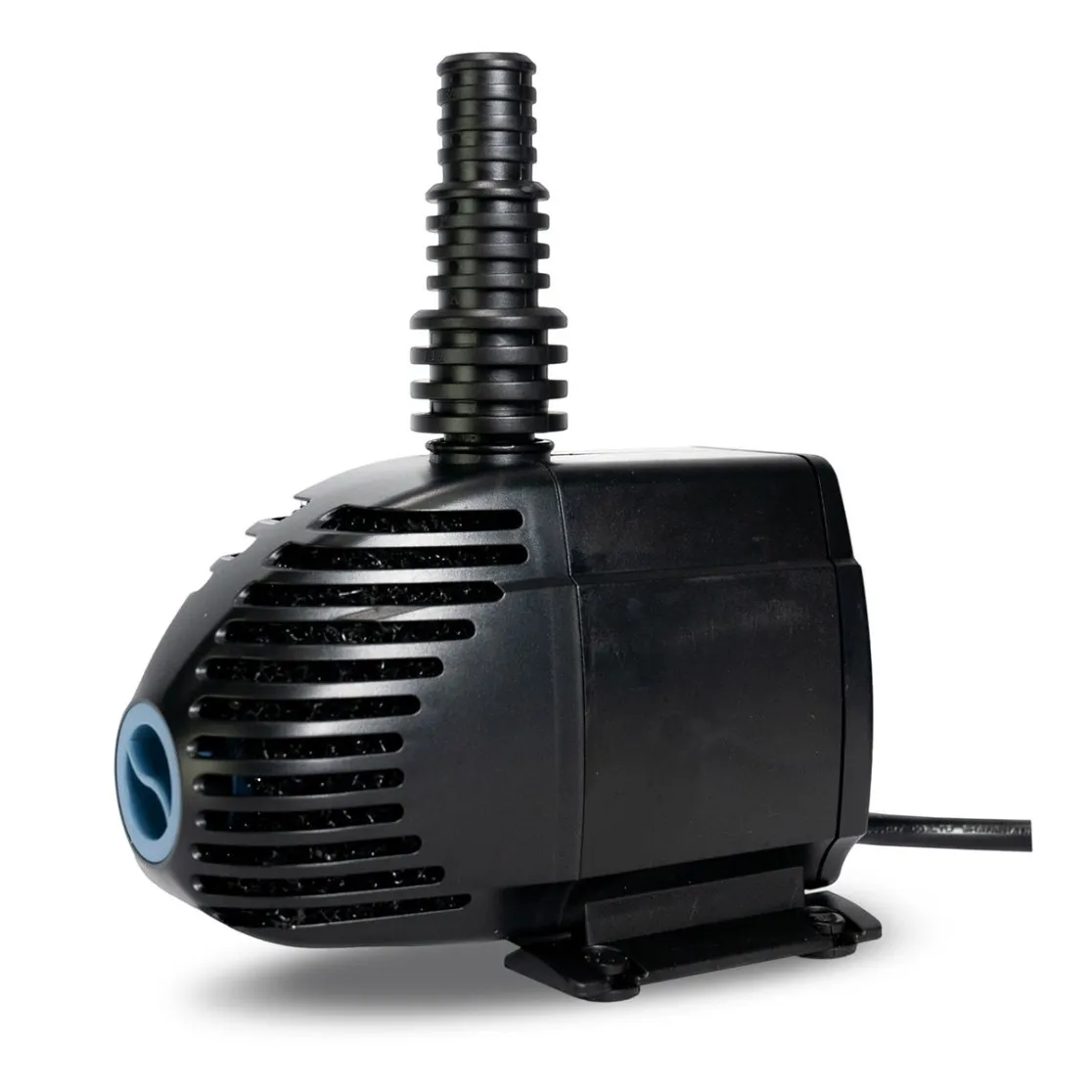

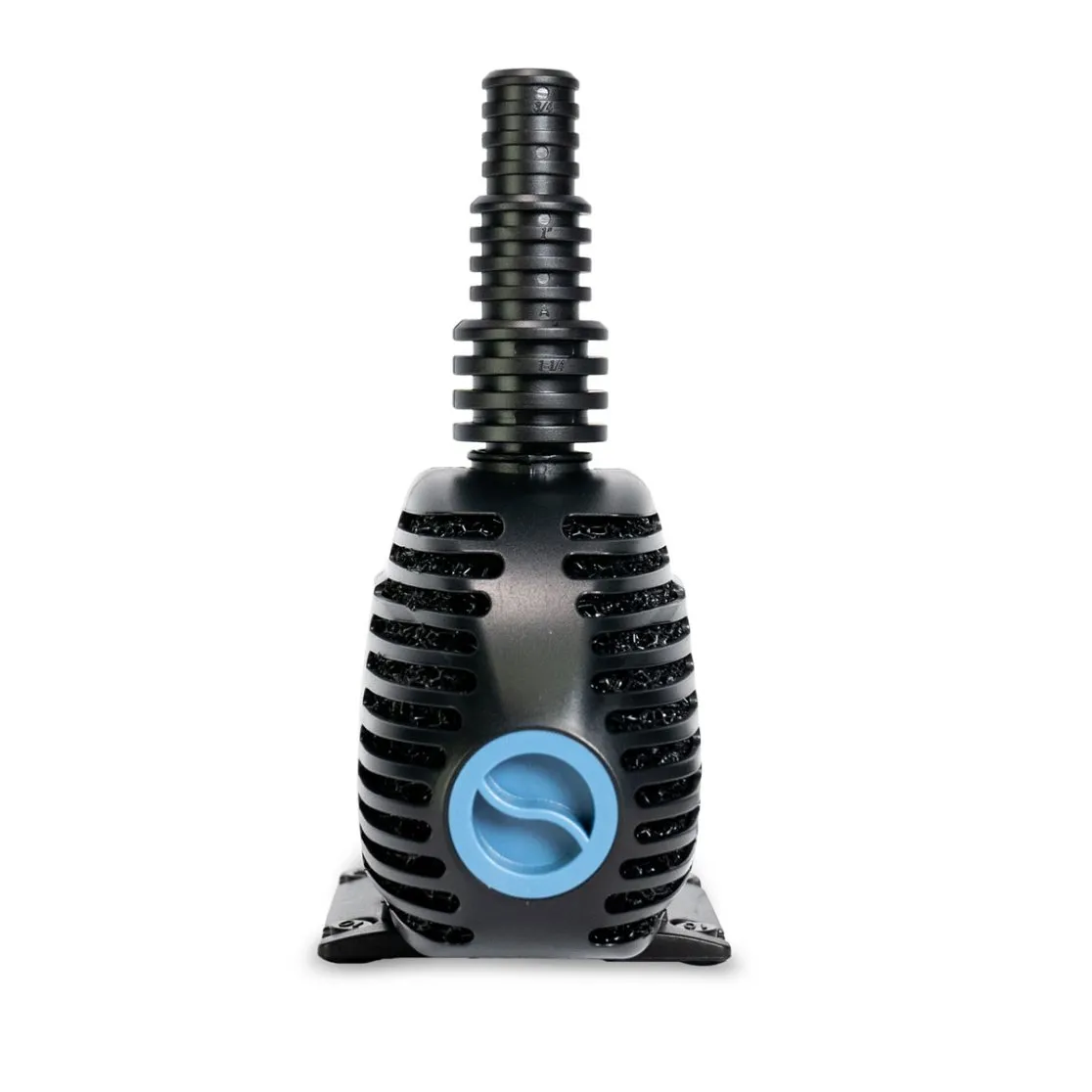

Ultra 800 Water Pump
The Aquascape Ultra 800 Water Pump is ideal for use with decorative fountains, external filters, small ponds, and other various water feature applications. The fish-safe, oil-free design uses mag-drive technology making this pump extremely energy efficient, saving hundreds of dollars over traditional pumps. The included half-inch valve, threaded elbow, and multi-hose fitting make this pump easy to install in a wide variety of applications.

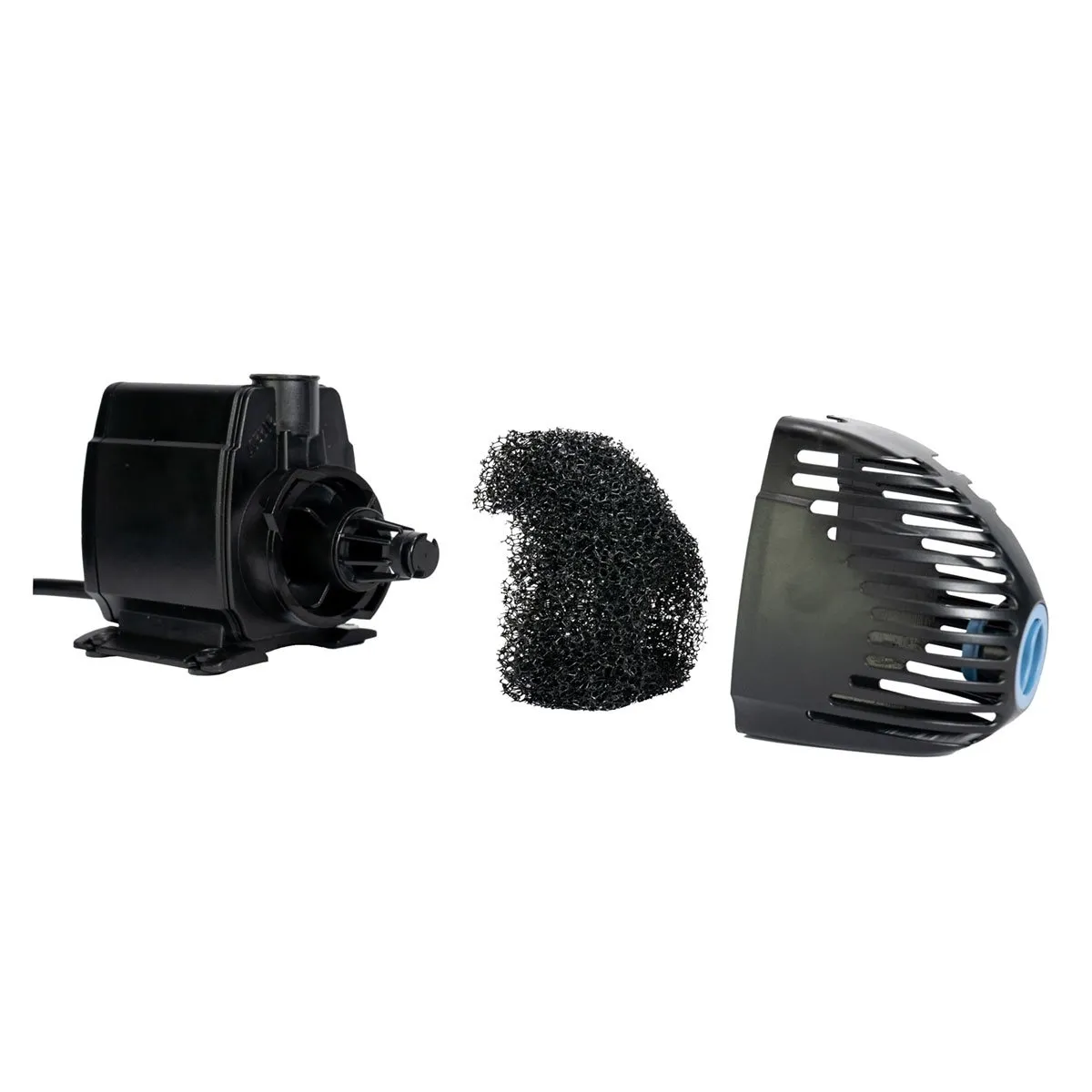

The durable pre-filter cage protects the pump, and the locking cage design makes it easy to remove the pre-filter for cleaning and maintenace, providing years of trouble-free operation. A wide, flat base and rubber feet make the Ultra 800 Water Pump stable and decrease the amount of vibration during use. The included fittings are compatible with most ½”, ¾”, 1″, and 1.25″ pipe.
$159.99
- Ideal for use with decorative fountains, external filters, small ponds, and more
- Extremely energy-efficient, saving hundreds of dollars over traditional water pumps
- Includes ½” valve, threaded elbow, and multi-hose fitting for quick and easy installation
- Durable pre-filter cage design protects pump and reduces pump maintenance
- 3-Year Limited Warranty
Ultra Pump Flow Chart (gph)
| Model | Max Head Height | 0' | 2.5' | 5' | 7.5' | 10' | 12.5' | 15' | 17.5' | 20' | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 400 | 7.5' | 370 | 300 | 200 | |||||||||||||||||||||||
| 550 | 8' | 528 | 425 | 300 | 75 | ||||||||||||||||||||||
| 800 | 9' | 793 | 675 | 500 | 275 | ||||||||||||||||||||||
| 1100 | 12' | 1110 | 1000 | 800 | 600 | 300 | |||||||||||||||||||||
| 1500 | 16.5' | 1480 | 1350 | 1200 | 1050 | 825 | 575 | 200 | |||||||||||||||||||
| 2000 | 20' | 1982 | 1875 | 1750 | 1600 | 1375 | 1125 | 800 | 450 |
Instruction Manuals
CAD Details
Data Sheets and Drawings
| Model | Ultra Pump 400 | Ultra Pump 550 | Ultra Pump 800 | Ultra Pump 1100 | Ultra Pump 1500 | Ultra Pump 2000 |
|---|---|---|---|---|---|---|
| Item Number | 91005 | 91006 | 91007 | 91008 | 91009 | 91010 |
| Maximum Flow Rate (GPH) | 370 | 528 | 793 | 1,110 | 1,480 | 1,982 |
| Maximum Head Height | 7.5 feet | 8 feet | 9 feet | 12 feet | 16.5 feet | 20 feet |
| Motor Type | Mag-drive | Mag-drive | Mag-drive | Mag-drive | Mag-drive | Mag-drive |
| Wattage | 24 | 33 | 58 | 92 | 153 | 250 |
| Amperage | 0.40 | 0.55 | 0.80 | 0.85 | 1.46 | 2.60 |
| Power Cord Length | 12 feet | 12 feet | 25 feet | 25 feet | 25 feet | 25 feet |
| Pump Discharge Diameter | 1/2 in, 3/4 in, 1 in, and 1-1/4 in | 1/2 in, 3/4 in, 1 in, and 1-1/4 in | 1/2 in, 3/4 in, 1 in, and 1-1/4 in | 3/4 in, 1 in, and 1-1/4 in | 3/4 in, 1 in, and 1-1/4 in | 3/4 in, 1 in, and 1-1/4 in |

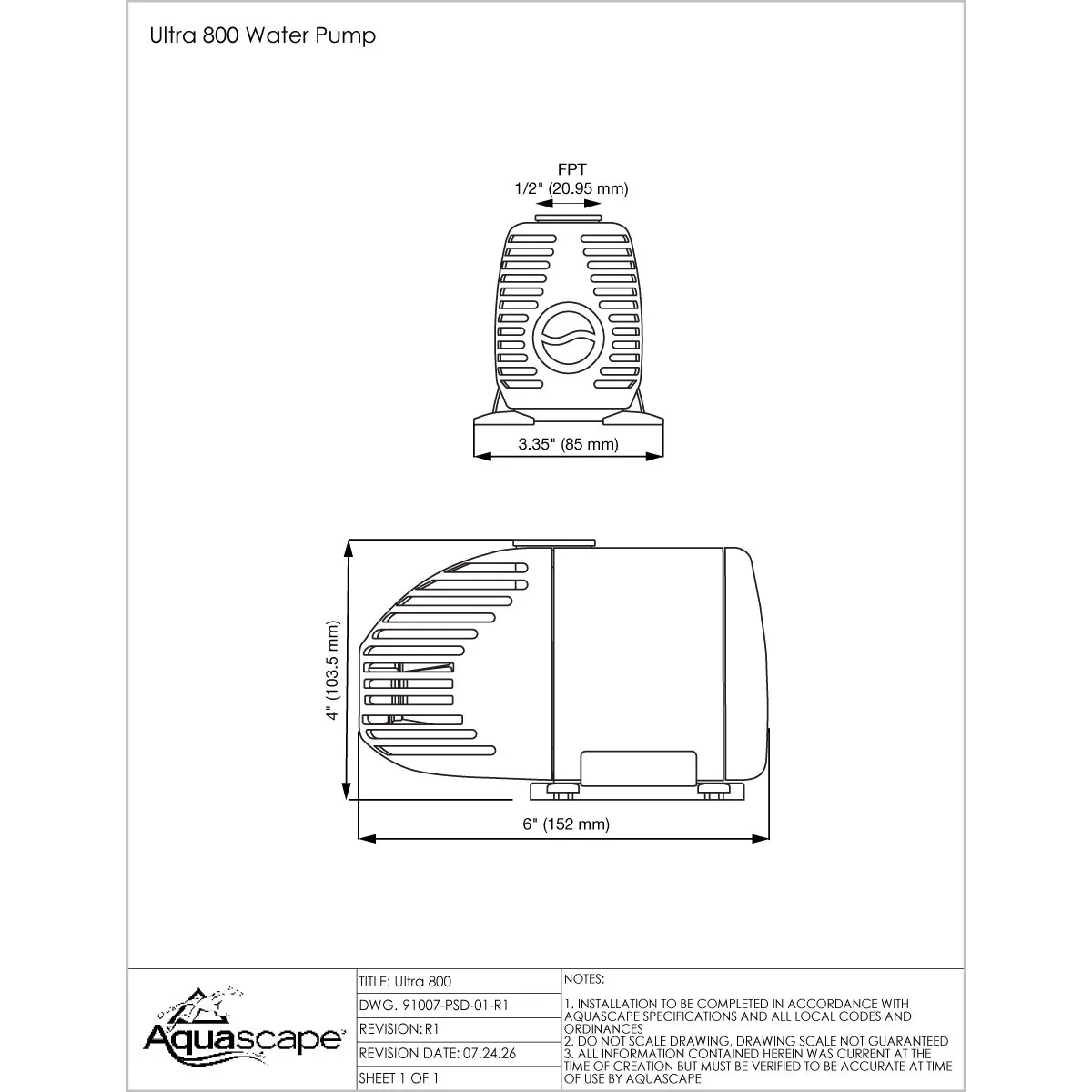

| Pump Dimensions | 5” L x 3” W x 3.25” H | 6”L x 3.35” W x 4”H | 6”L x 3.35” W x 4”H | 7.5” L x 3.7” W x 5” H | 9” L x 5” W x 6” H | 9” L x 5” W x 6” H |
| Ideal Pipe Diameter | 1/2 - 1 inch | 1/2 - 1 inch | 1/2 - 1 inch | 3/4 - 1.25 inch | 3/4 - 1.25 inch | 3/4 - 1.25 inch |
| Warranty (Limited) | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
