Snorkel® Vault Extension

Snorkel® Vault Extension V2

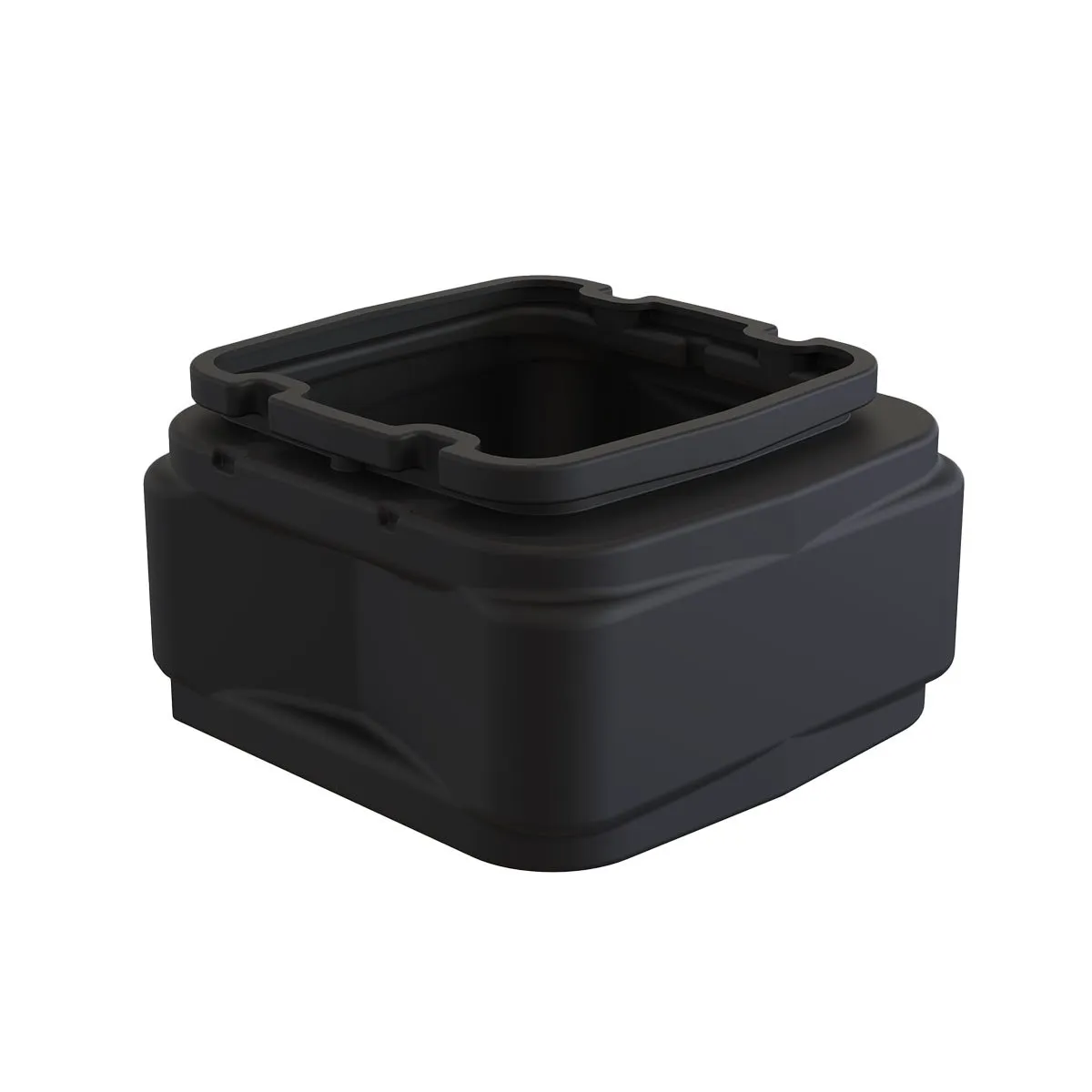

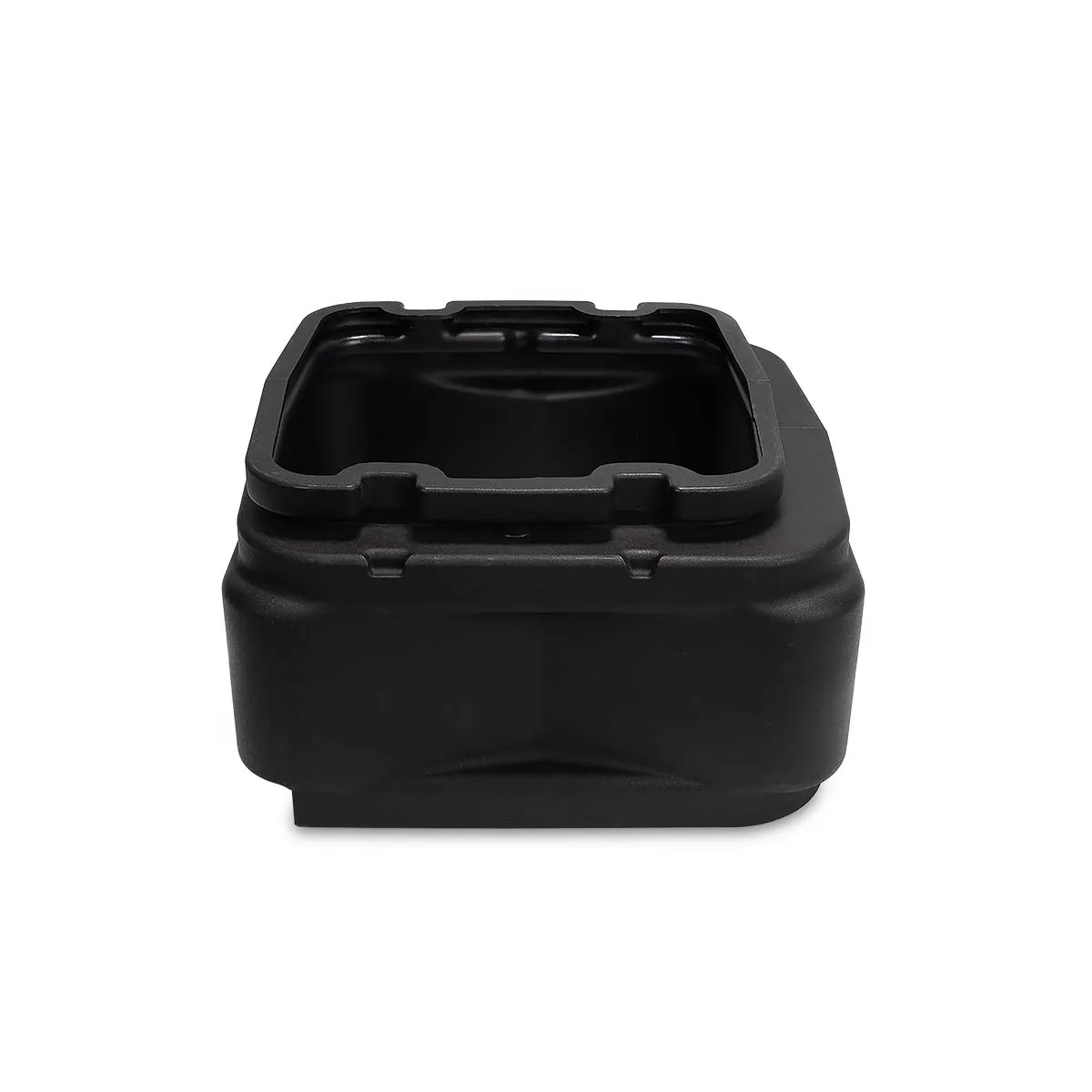

The Snorkel® Vault Extension V2 allows you to increase the installation depth of your wetland filter without losing convenient surface access for maintenance. By securely locking onto the top of the Snorkel® Vault*, using one or more extensions allows for deeper excavation depths, ideal when adding extra layers of gravel or stacking additional FilterBlox™ Modules for higher-capacity filtration. It is built from the same rugged, rotationally molded material, giving it the strength to support the weight of stone, gravel, and foot traffic above.

If you’d like wetland filter sizing information and to see how all these components work together click here for more information.

*Snorkel® Vault and Lid V2 & End Cap for Centipede®

SKU: 51008 Categories: ,

$219.99

Key features:

  • Increases Snorkel® Vault* height for deeper wetland filter installations.
  • Ideal for extra gravel layers or stacked FilterBlox™ Modules to boost filtration capacity.

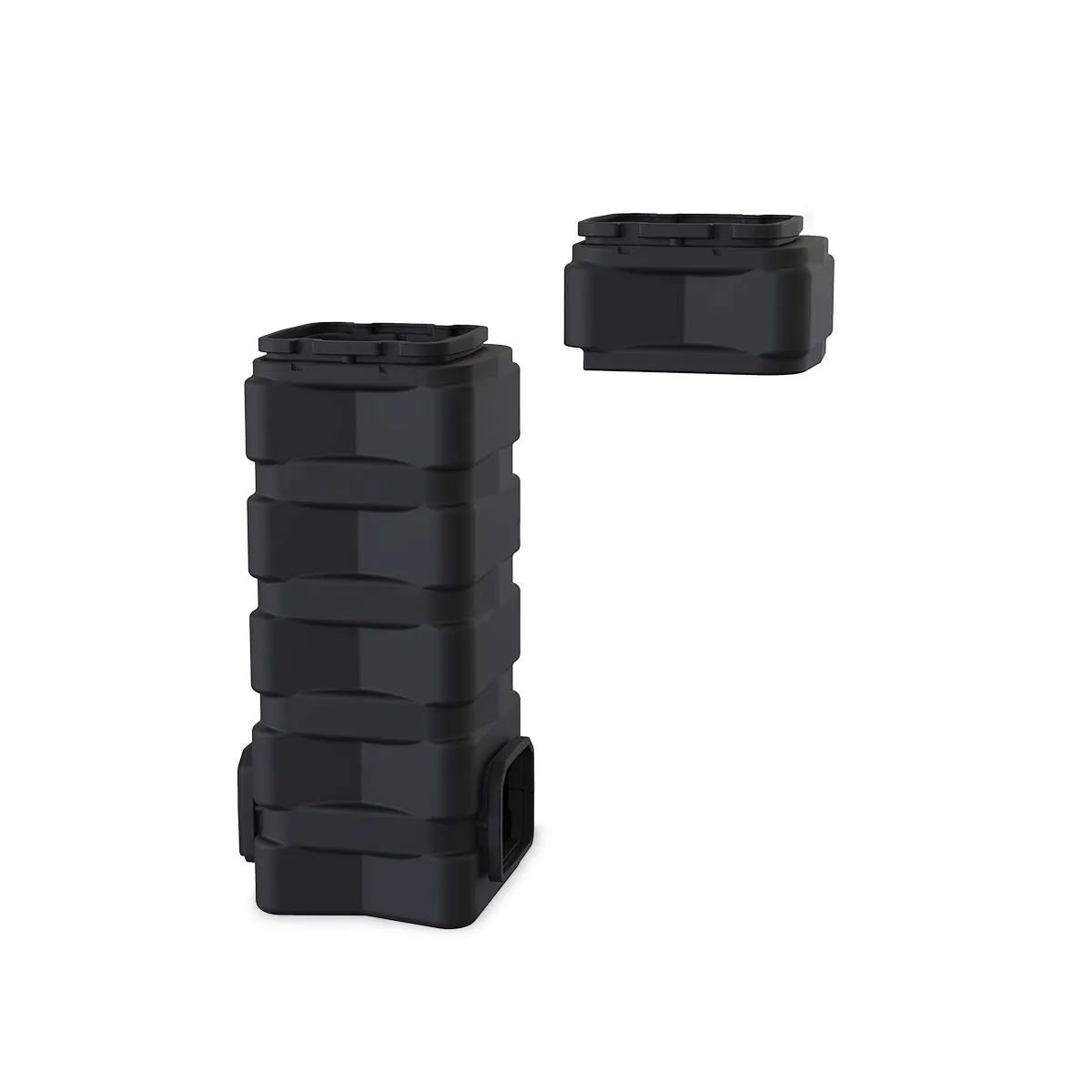

  • Securely locks to Snorkel® Vault* for fast, reliable installation.

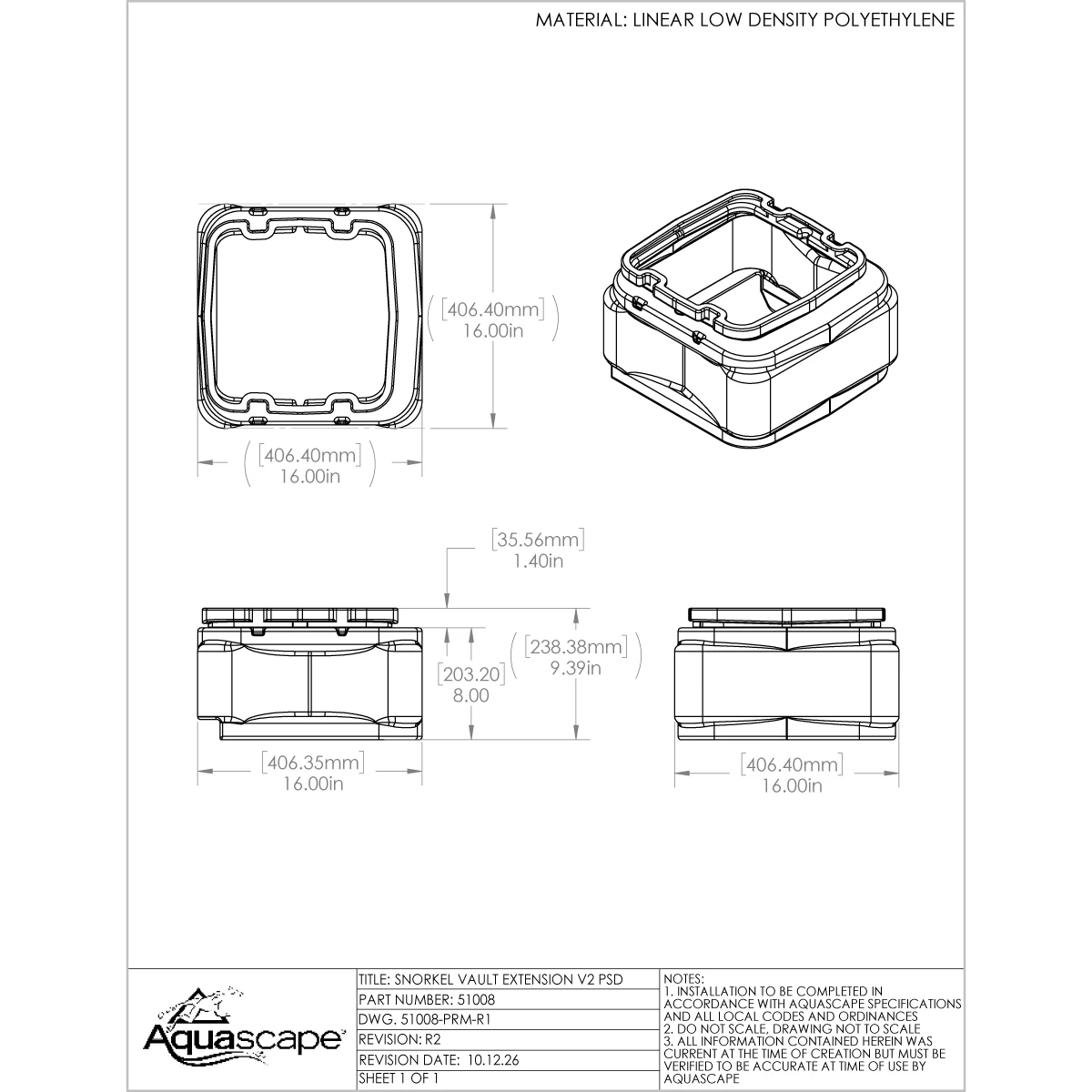

  • Add one or more extensions, each increasing Snorkel® Vault* depth by 9.5″ (24 cm).
  • Durable, rotationally molded construction is built to last.

*Snorkel® Vault and Lid V2 & End Cap for Centipede®

Wetland Filtration Components

See how this product fits into a wetland filtration system

1

2

3

4

5

6

1

Snorkel® Vault*

Provides a central access point for cleaning and maintaining the wetland filter.

*Snorkel® Vault and Lid V2 & End Cap for Centipede®

2

Snorkel® Vault Lid V2

Protects the Snorkel Vault from debris entry, withstanding foot traffic for safe use

3

Centipede® Module V2

Distributes water evenly throughout the wetland filter bed for maximum contact with filter media

4

AquaBlox® Water Storage Modules

Act as a settlement chamber, allowing solids to drop out of suspension before the water rises through the filter media

5

FilterBlox™ Module

Use internal Biological Filter Tubes to maximize surface area, greatly increasing capacity for filtration

6

Centipede® Module End Cap V2

Convenient connection point for incoming plumbing
