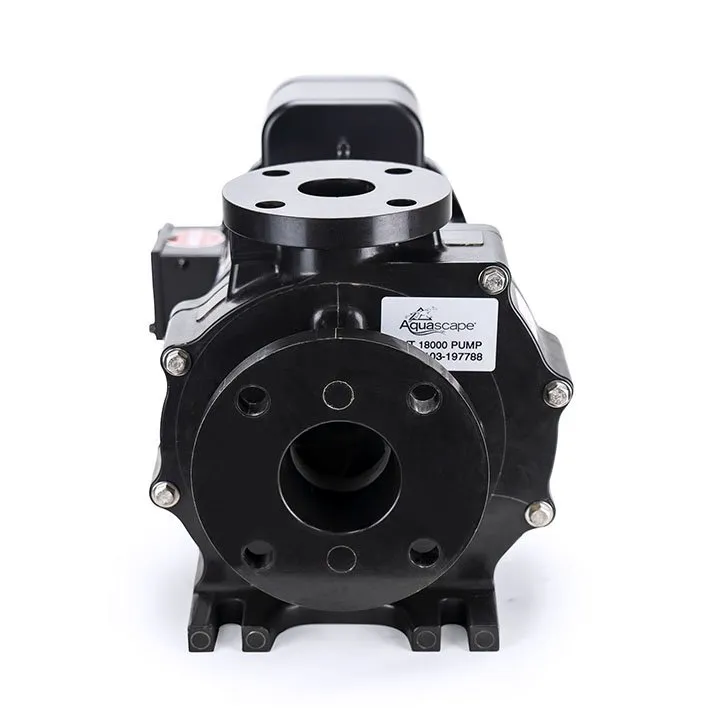

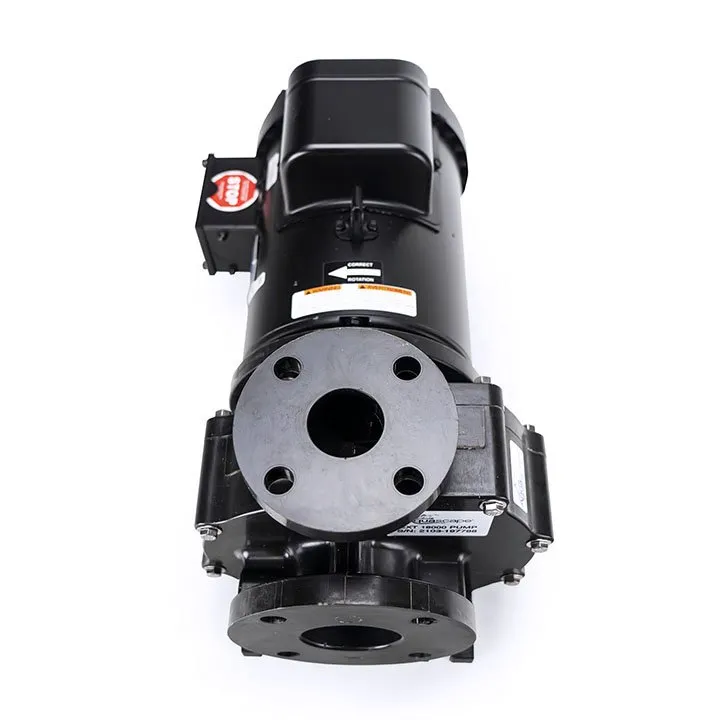

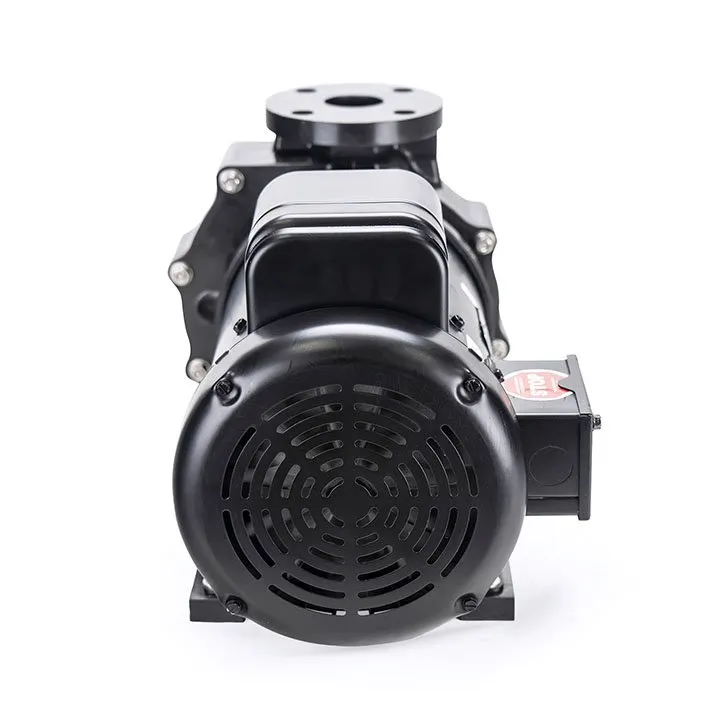

EXT 18000 Pond Pump
The EXT 18000 Pond Pump is ideal for water feature applications requiring high flow with high efficiency in a non-submersible style pump. This pump’s oil free, low RPM, fan-cooled motor provides quiet operation and a long life. The EXT 18000 Pond Pump does not include an electrical cord. The junction box on the pump motor allows for 115V or 230V electric to be customized on site to meet each project’s electrical requirements.
Aquascape has made it easy to simplify the plumbing with the EXT Pump Plumbing Kit (#48027) sold separately.
$3,799.99
- Oil-free, low RPM, motor provides quiet operation and a long life
- Totally Enclosed Fan-Cooled Motor (TEFC)
- Junction box located on pump motor allows 115V or 230V electric to be customized on site
- 3″ – 4 bolt flanged Inlet
- 2″ – 4 bolt flanged discharge
- Semi-closed vane impeller provides efficient water flow and can pass spherical solids up to .75″ in diameter
EXT Pump Flow Chart (gph)
| Model | Max Head Height | 0' | 5' | 10' | 15' | 20' | 25' | 30' | 35' | 40' | 45' | 50' | |||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12000 | 21' | 12000 | 11500 | 9916 | 7760 | 4245 | |||||||||||||||||||||||||||||||||||||||||||||||
| 12000-3P | 21' | 12000 | 11500 | 9916 | 7760 | 4245 | |||||||||||||||||||||||||||||||||||||||||||||||
| 18000 | 45' | 18000 | 17000 | 16500 | 15600 | 14332 | 13000 | 11700 | 9832 | 7720 | 3600 | ||||||||||||||||||||||||||||||||||||||||||
| 18000-3P | 45' | 18000 | 17000 | 16500 | 15600 | 14332 | 13000 | 11700 | 9832 | 7720 | 3600 |
| Model | EXT 12000 | EXT 12000-3P | EXT 18000 | EXT 18000-3P |
|---|---|---|---|---|
| Item Number | 45049 | 45051 | 45050 | 45052 |
| Inlet | 3" | 3" | 3" | 3" |
| Discharge | 2" | 2" | 2" | 2" |
| Maximum Flow (GPH) | 12,500 | 12,500 | 18,400 | 18,400 |
| Maximum Head Height (Feet) | 21' | 21' | 45' | 45' |
| Maximum Power (Watts) | 1,100 | 736 | 3,300 | 1,932 |
| Maximum Current (Amps @ Volts) | 10 @ 115V | 3.2 @ 230V | 30 @ 115V | 8.4 @ 230V |
| Maximum Current (Amps @ Volts) | 5 @ 230V | 1.6 @ 460V | 15 @ 230V | 4.2 @ 460V |
| Phase | Single | 3-Phase | Single | 3-Phase |
| Motor HP | 3/4 | 1 | 3 | 3 |
| Motor Enclosure | TEFC | TEFC | TEFC | TEFC |
| 10ft Power Cord* | ✔ | ✘ | ✘ | ✘ |
*All EXT Pumps power can be customized by a qualified electrician
| Item Number | Image | Product | Price | Add to Cart |
|---|---|---|---|---|
1 |  | EXT Pump Mechanical Seal and O-ring KitSKU: 45060 | $409.99 | |
2 |  | EXT Pump O-ring KitSKU: 45061 | $49.99 |
