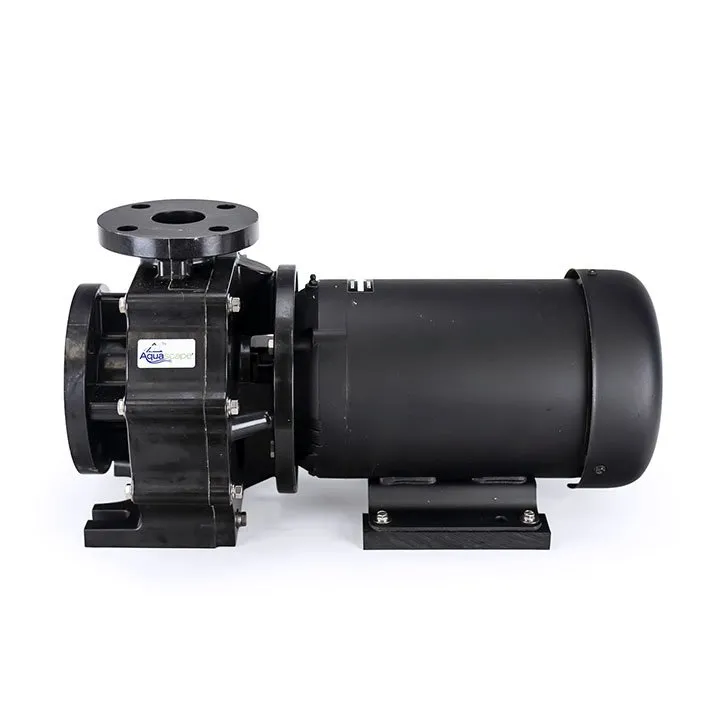

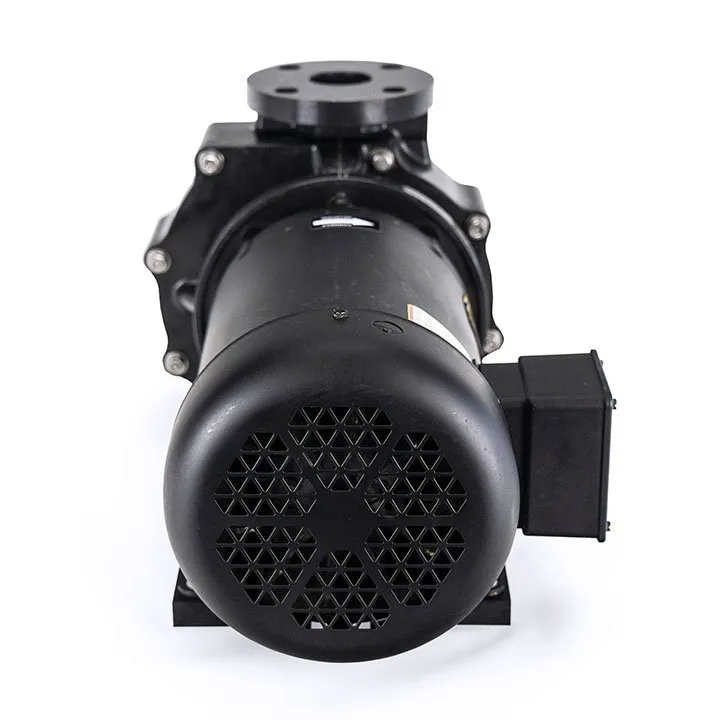

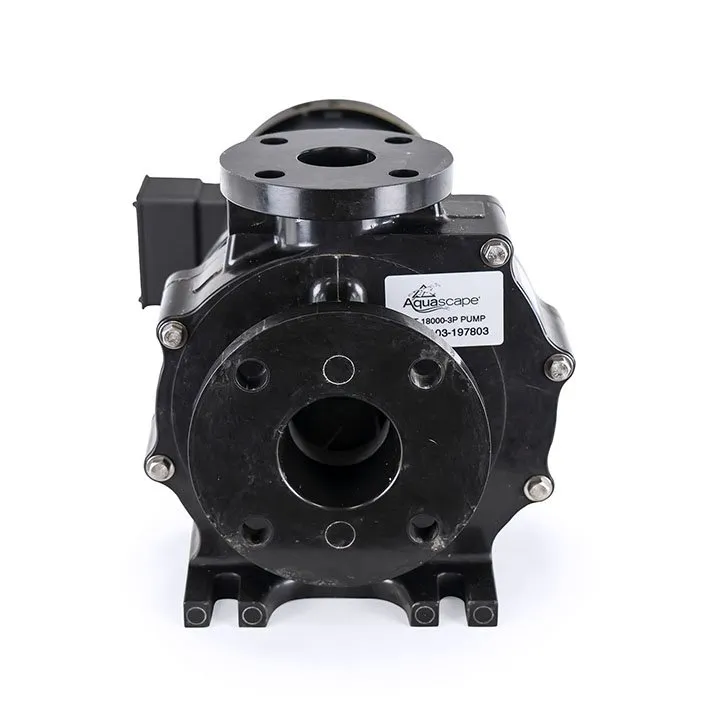

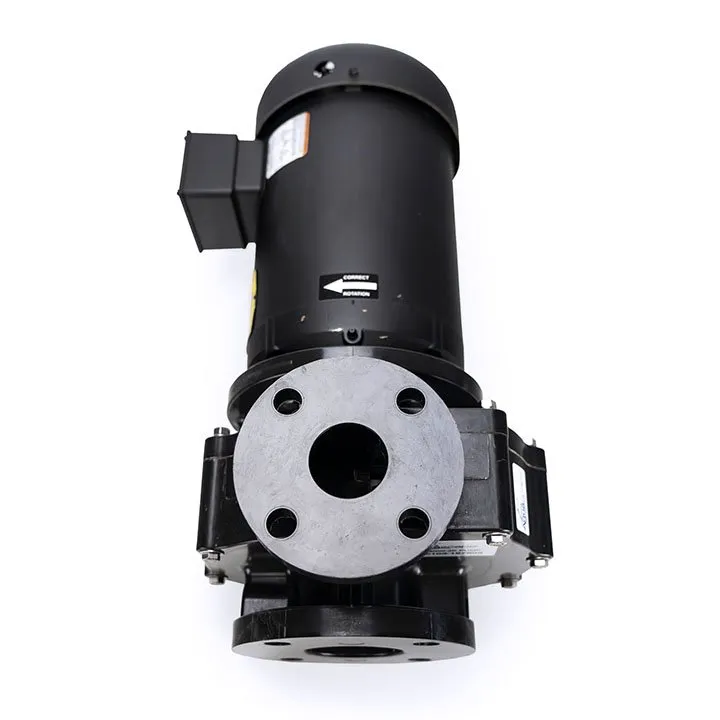

EXT 18000-3P Pond Pump

The EXT 18000-3P Pond Pump features a 3-phase motor, ideal for water feature applications requiring high flow with high efficiency in a non-submersible style pump. This pump’s oil-free, low RPM, fan-cooled motor provides quiet operation and a long life. The EXT 18000-3P Pond Pump does not include an electrical cord. The junction box on the pump motor allows for 115V or 230V electric to be customized on site to meet each project’s electrical requirements.

All EXT-3P (3-phase motors) can be used with an optional variable frequency drive.  A variable frequency drive (VFD) is a controller that varies the voltage and frequency (hertz) of the pumps motor allowing you the ability to control the pumps water flow rate.  The VFD can be used to schedule the pump to slow down during certain hours of the day to conserve electricity and speed up during other hours, such as after work or on the weekends when a larger flow over the waterfalls is desired.  It can also be configured to slowly ramp up pump speed helping to reduce stress on the plumbing fittings during when the pump is starting up.

Aquascape has made it easy to simplify the plumbing with the EXT Pump Plumbing Kit (#48027) sold separately.

SKU: 45052 Category:
Oversized Item - additional shipping fees may apply

$3,649.99

  • Oil-free, low RPM, motor provides quiet operation and a long life
  • Totally Enclosed Fan-Cooled Motor (TEFC)
  • Junction box located on pump motor allows 115V or 230V electric to be customized on site
  • 3″ – 4 bolt flanged Inlet
  • 2″ – 4 bolt flanged discharge
  • Semi-closed vane impeller provides efficient water flow and can pass spherical solids up to .75″ in diameter
Pump Flow Chart - EXT
ModelPurchaseMax Head Height0'5'10'15'20'25'30'35'40'45'50'
120003801921'1200011500991677604245
12000-3P3803621'1200011500991677604245
180003802745'18000170001650015600143321300011700983277203600
18000-3P3804345'18000170001650015600143321300011700983277203600

Data Sheets and Drawings

45052 EXT 18000-3P Data Sheet
EXT Pump Application Drawing
48027 EXT Plumbing Kit Drawing

Videos

EXT 12000EXT 12000-3PEXT 18000EXT 18000-3P
Model Number45049450514505045052
Inlet3"3"3"3"
Discharge2"2"2"2"
Maximum Flow (GPH)12,50012,50018,40018,400
Maximum Head Height (Feet)21'21'45'45'
Maximum Power (Watts)1,1007363,3001,932
Maximum Current (Amps @ Volts)10 @ 115V3.2 @ 230V30 @ 115V8.4 @ 230V
Maximum Current (Amps @ Volts)5 @ 230V1.6 @ 460V15 @ 230V4.2 @ 460V
PhaseSingle3-PhaseSingle3-Phase
Motor HP3/4133
Motor EnclosureTEFCTEFCTEFCTEFC
10ft Power Cord*
View Product

View Product

View Product

View Product


*All EXT Pumps power can be customized by a qualified electrician
