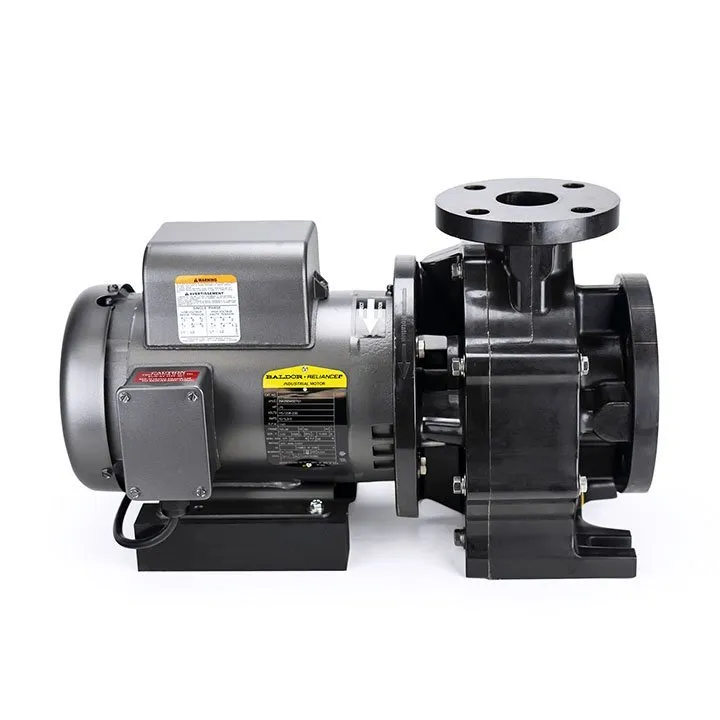

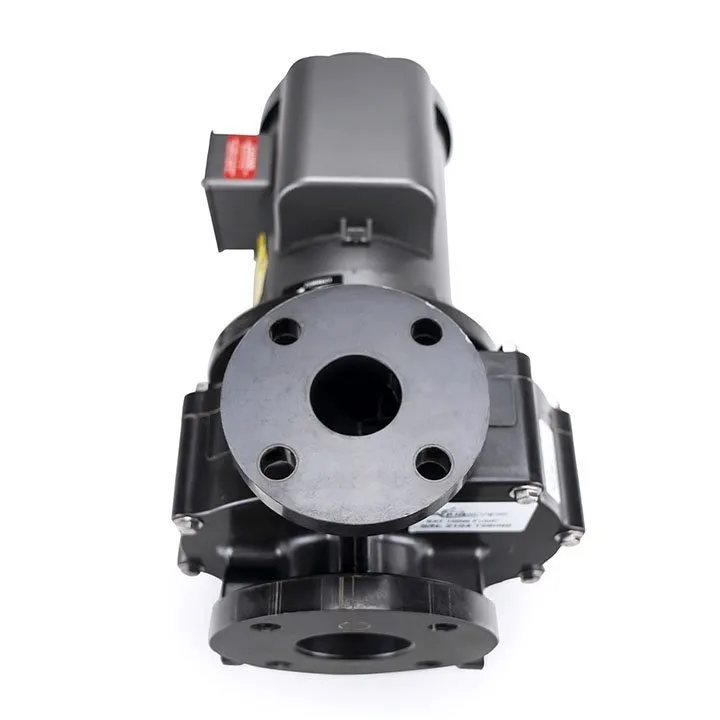

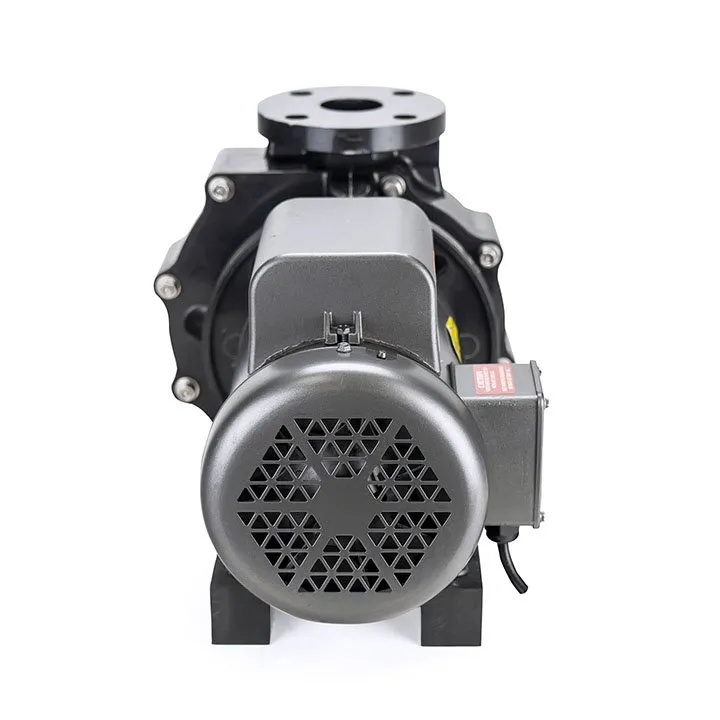

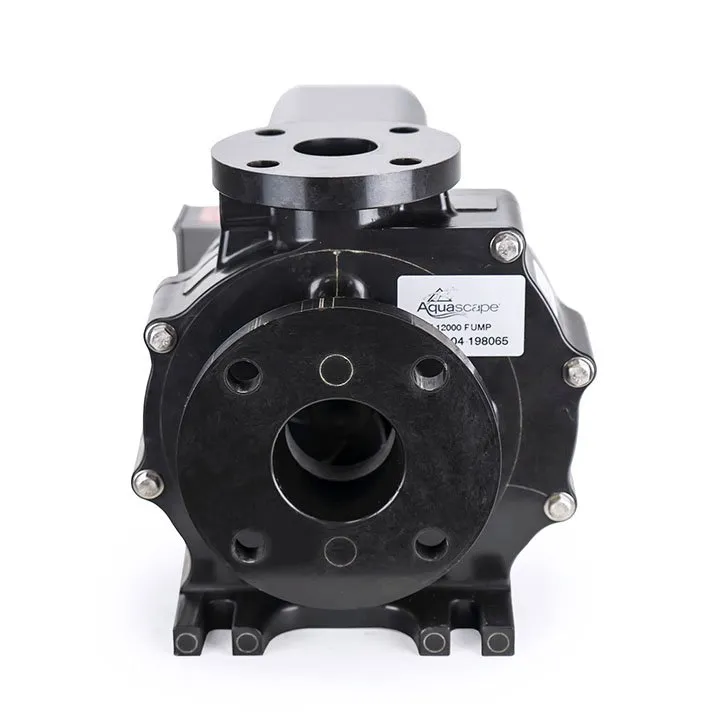

EXT 12000 Pond Pump

The EXT 12000 Pond Pump is ideal for water feature applications requiring high flow with high efficiency in a non-submersible style pump. This pumps oil-free, low RPM, fan-cooled motor provided quite operation and a long life. The EXT 12000 comes standard with a 10-foot, 115V power cord. If special electrical requirements are needed, the junction box on the pump motor allows for 115V or 230V electric to be customized on site to meet each project’s electrical requirements.

Aquascape has made it easy to simplify the plumbing with the EXT Pump Plumbing Kit (#48027) sold separately.

SKU: 45049 Category:
Oversized Item - additional shipping fees may apply

$2,549.99

  • Oil-free, low RPM, motor provides quiet operation and a long life
  • Totally Enclosed Fan-Cooled Motor (TEFC)
  • Junction box located on pump motor allows 115V or 230V electric to be customized on site
  • 3″ – 4 bolt flanged Inlet
  • 2″ – 4 bolt flanged discharge
  • Semi-closed vane impeller provides efficient water flow and can pass spherical solids up to .75″ in diameter
  • The EXT 12000 comes standard with a 10-foot, 115V power cord. If special electrical requirements are needed the junction box on the pump motor allows for 115V or 230V electric to be customized on site to meet each project’s electrical requirements
Pump Flow Chart - EXT
ModelPurchaseMax Head Height0'5'10'15'20'25'30'35'40'45'50'
120003801921'1200011500991677604245
12000-3P3803621'1200011500991677604245
180003802745'18000170001650015600143321300011700983277203600
18000-3P3804345'18000170001650015600143321300011700983277203600

Data Sheets and Drawings

45049 EXT 12000 Data Sheet
EXT Pump Application Drawing
48027 EXT Plumbing Kit Drawing

Videos

EXT 12000EXT 12000-3PEXT 18000EXT 18000-3P
Model Number45049450514505045052
Inlet3"3"3"3"
Discharge2"2"2"2"
Maximum Flow (GPH)12,50012,50018,40018,400
Maximum Head Height (Feet)21'21'45'45'
Maximum Power (Watts)1,1007363,3001,932
Maximum Current (Amps @ Volts)10 @ 115V3.2 @ 230V30 @ 115V8.4 @ 230V
Maximum Current (Amps @ Volts)5 @ 230V1.6 @ 460V15 @ 230V4.2 @ 460V
PhaseSingle3-PhaseSingle3-Phase
Motor HP3/4133
Motor EnclosureTEFCTEFCTEFCTEFC
10ft Power Cord*
View Product

View Product

View Product

View Product


*All EXT Pumps power can be customized by a qualified electrician
