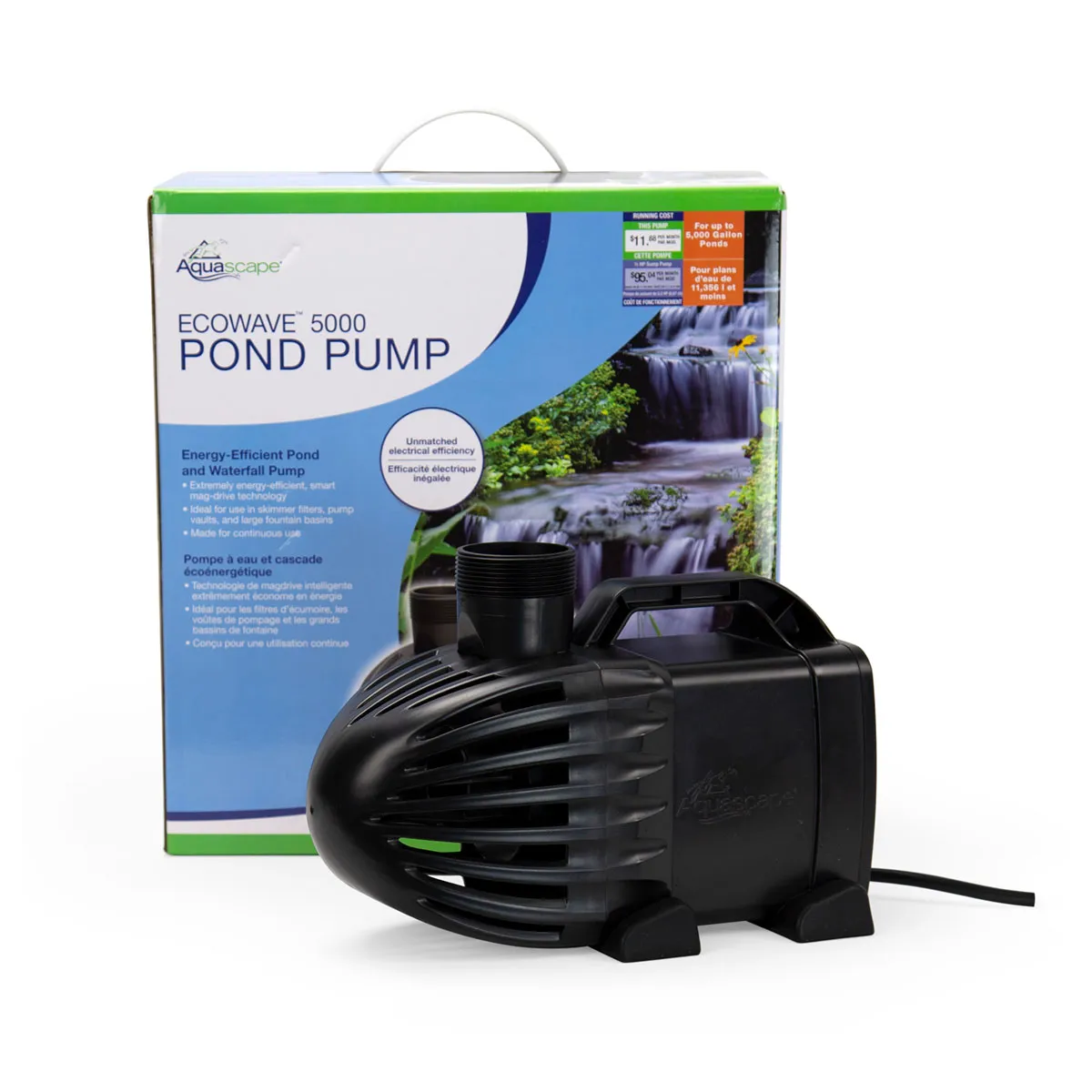

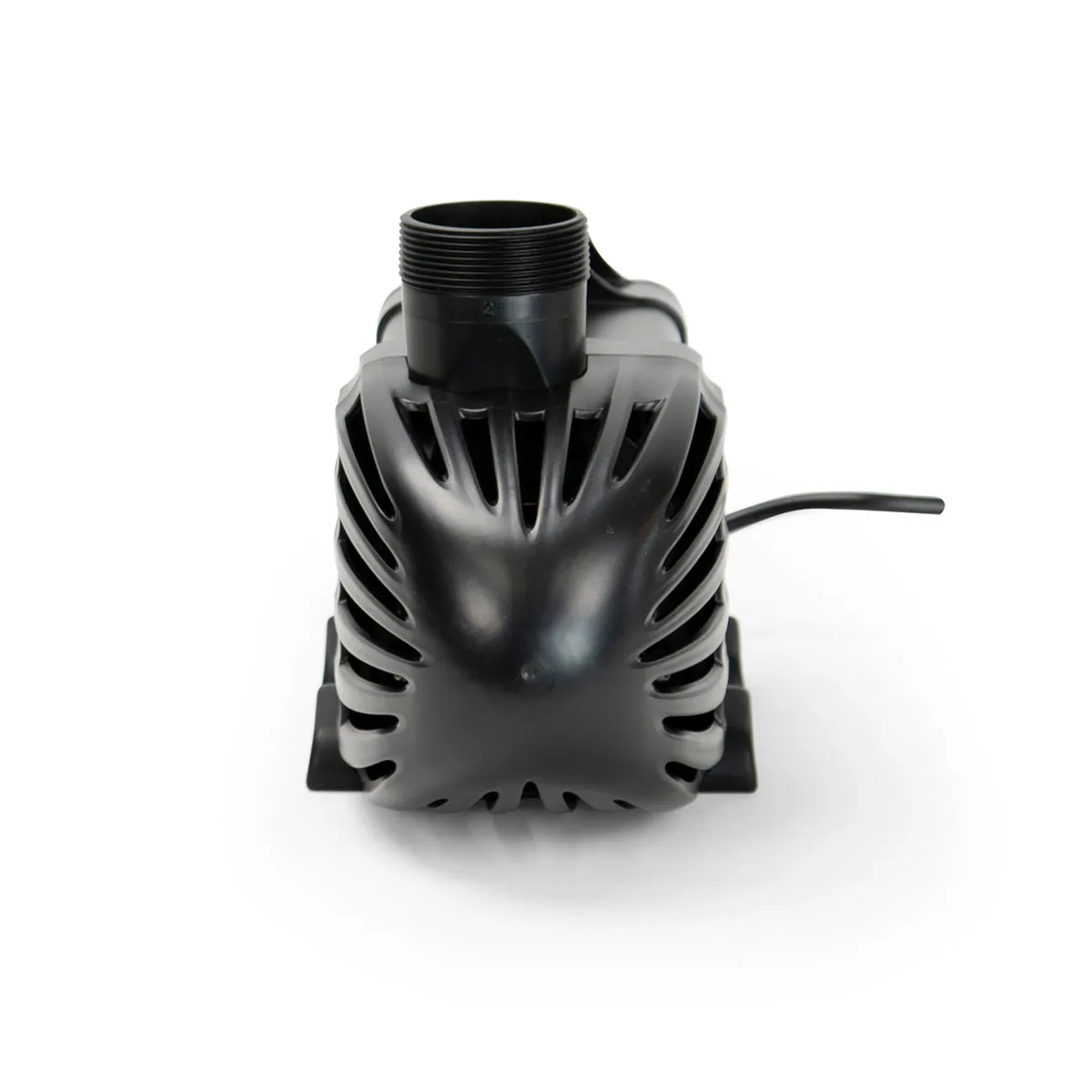

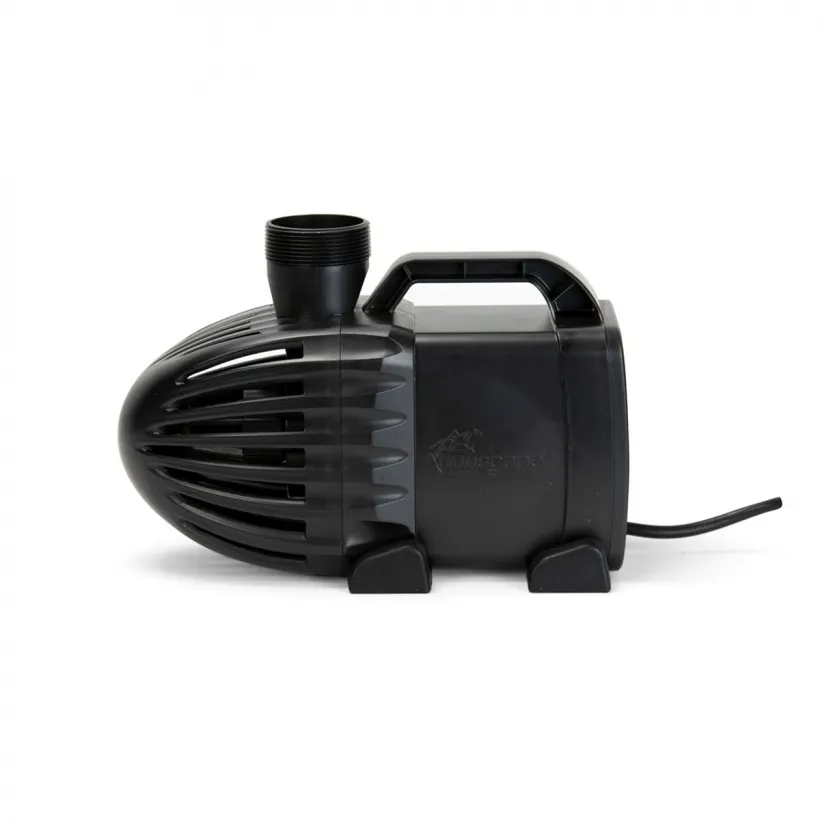

EcoWave® 5000 Pond Pump
Aquascape EcoWave® 5000 Pond Pumps is a magnetically driven pond and waterfall pump developed to provide high flow rates at low head heights. The internal smart mag-drive motor technology and vortex style impeller ensure unmatched electrical efficiency, minimizing the electrical consumption of your pond or waterfall. The EcoWave® 5000 Pond Pump is ideal for use in pond skimmers and Pondless® Waterfall Vault applications.
$389.99
- Extremely energy-efficient, smart mag-drive technology
- Ideal for use in skimmer filters, waterfall vaults, and large fountain basins
- Made for continuous use
- Includes fittings for quick and easy, tool-free installation
- 3-Year Limited Warranty
EcoWave Pump Flow Chart (gph)
| Model | Max Head Height | 0' | 2.5' | 5' | 7.5' | 10' | 12.5' | 15' | 17.5' | 20' | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000 | 14.4' | 2020 | 1350 | 860 | 650 | 400 | 150 | ||||||||||||||||||||
| 3000 | 17.5' | 2960 | 2150 | 1470 | 1100 | 850 | 550 | 300 | |||||||||||||||||||
| 4000 | 20' | 4000 | 2950 | 2210 | 1650 | 1250 | 1000 | 750 | 400 | ||||||||||||||||||
| 5000 | 21' | 5000 | 4050 | 3205 | 2450 | 1850 | 1450 | 1100 | 750 | 300 |
Instruction Manuals

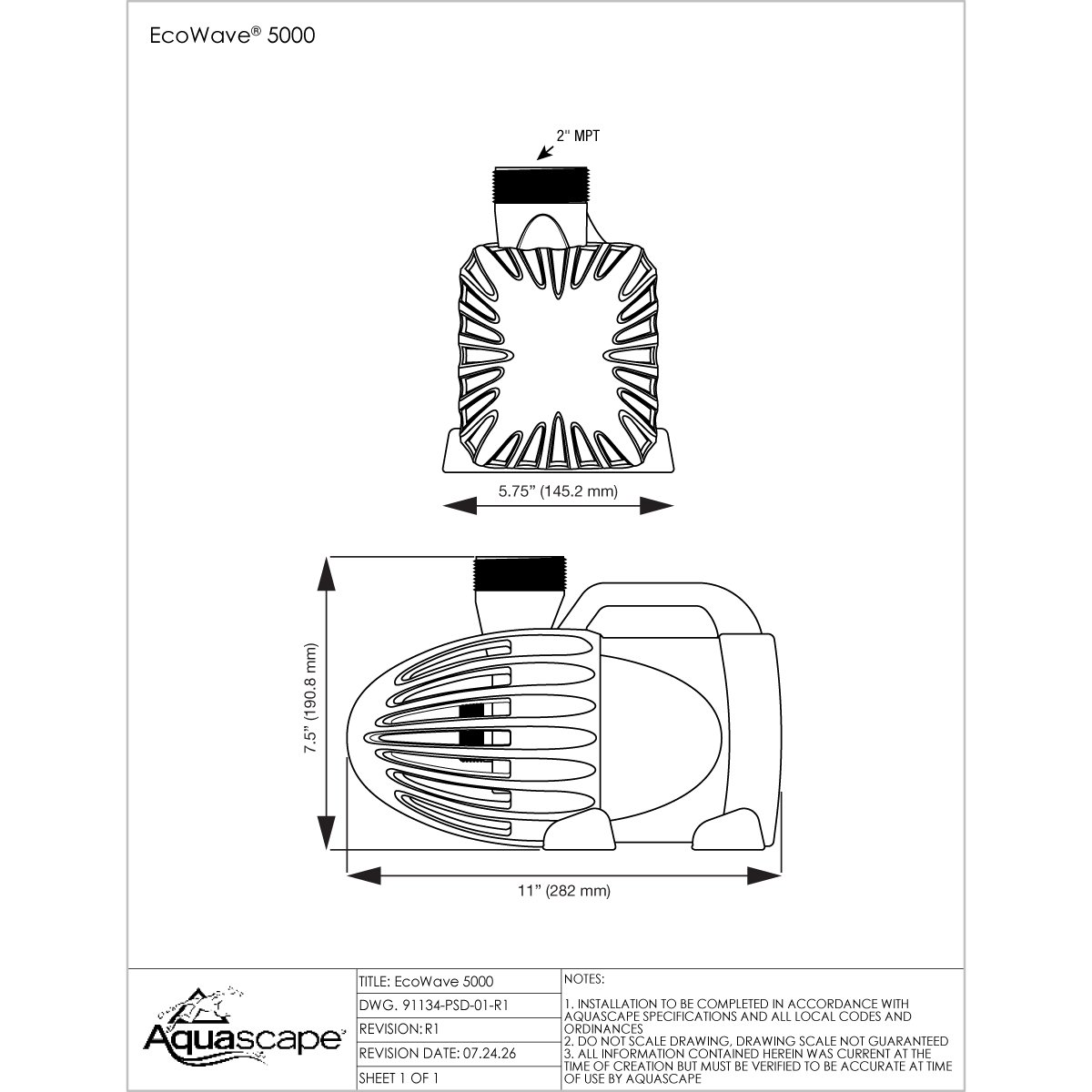

Data Sheets and Drawings
Guides
| Model | EcoWave 2000 | EcoWave 3000 | EcoWave 4000 | EcoWave 5000 |
|---|---|---|---|---|
| Item Number | 91131 | 91132 | 91133 | 91134 |
| Maximum Flow Rate (GPH) | 2,020 | 2,960 | 4,000 | 5,000 |
| Maximum Head Height | 14.4 feet | 17.5 feet | 20 feet | 21 feet |
| Motor Type | Mag-drive | Mag-drive | Mag-drive | Mag-drive |
| Wattage | 65 | 90 | 130 | 150 |
| Amperage | 0.54 | 0.75 | 1.08 | 1.25 |
| Power Cord Length | 20 feet | 20 feet | 20 feet | 20 feet |
| Pump Discharge Diameter | 2" MPT | 2" MPT | 2" MPT | 2" MPT |
| Ideal Pipe Diameter | 1.5 - 2 inch | 1.5 - 2 inch | 1.5 - 2 inch | 2 inch |
| Pump Dimensions | 11 x 5.75 x 7.5 inches (LxWxH) | 11 x 5.75 x 7.5 inches (LxWxH) | 11 x 5.75 x 7.5 inches (LxWxH) | 11 x 5.75 x 7.5 inches (LxWxH) |
| Warranty (Limited) | 3 years | 3 years | 3 years | 3 years |
| Item Number | Image | Product | Price | Add to Cart |
|---|---|---|---|---|
1 |  | EcoWave® 4000/5000 Intake Screen (fits EcoWave 15000/20000)SKU: 91149 | $35.99 | |
2 |  | EcoWave® 5000 Water Chamber Cover And O Ring (fits EcoWave 20000)SKU: 91154 | $45.99 | |
3 |  | EcoWave® 5000 Impeller Kit (fits EcoWave 20000)SKU: 91141 | $87.99 | |
4 |  | EcoWave® Discharge Fitting KitSKU: 91135 | $39.99 |
