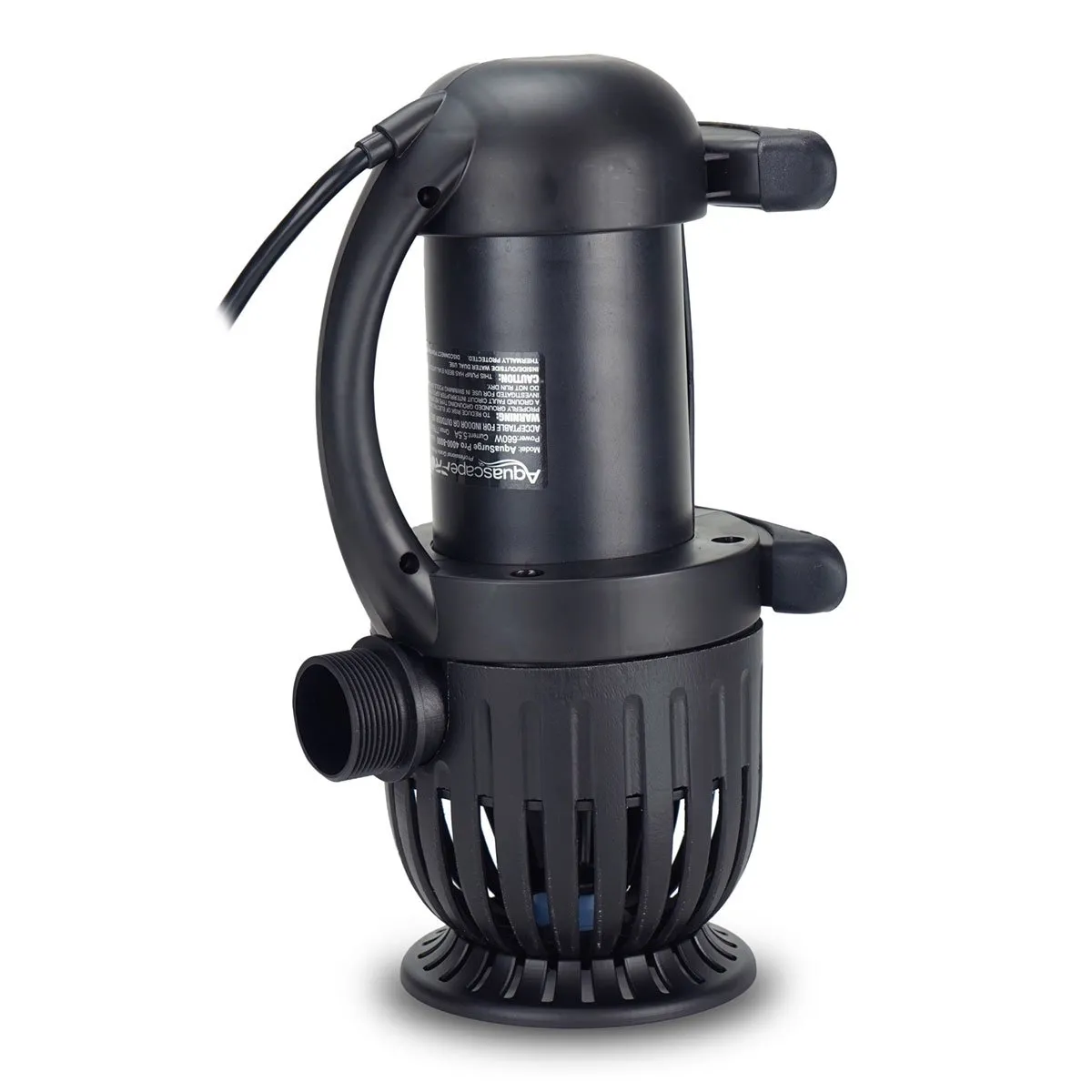

AquaSurge® 5000 Pond Pump
The Aquascape AquaSurge® 5000 Pond Pump is ideal for use in ponds, Pondless® Waterfalls, and other water feature applications. With a maximum flow rate up to 5,000 gallons per hour, the pump is made for continuous use in either vertical or horizontal orientation. Asynchronous motor technology makes this pump extremely energy efficient, saving you hundreds of dollars over traditional water pumps, and the oil-free design is fish-safe. A variety of fittings is included for simple installation, including a rotational ball output that allows the discharge position to be easily adjusted. The AquaSurge® 5000 Pond Pump will not corrode or rust and its rubber feet will prevent noise and vibration while in use, making this the pump of choice for discriminating homeowners and pond professionals alike.
$659.99
- Ideal for use in ponds, waterfalls, and other water features
- Extremely energy-efficient, saving hundreds of dollars over traditional water pumps
- 5,000 gallons per hour

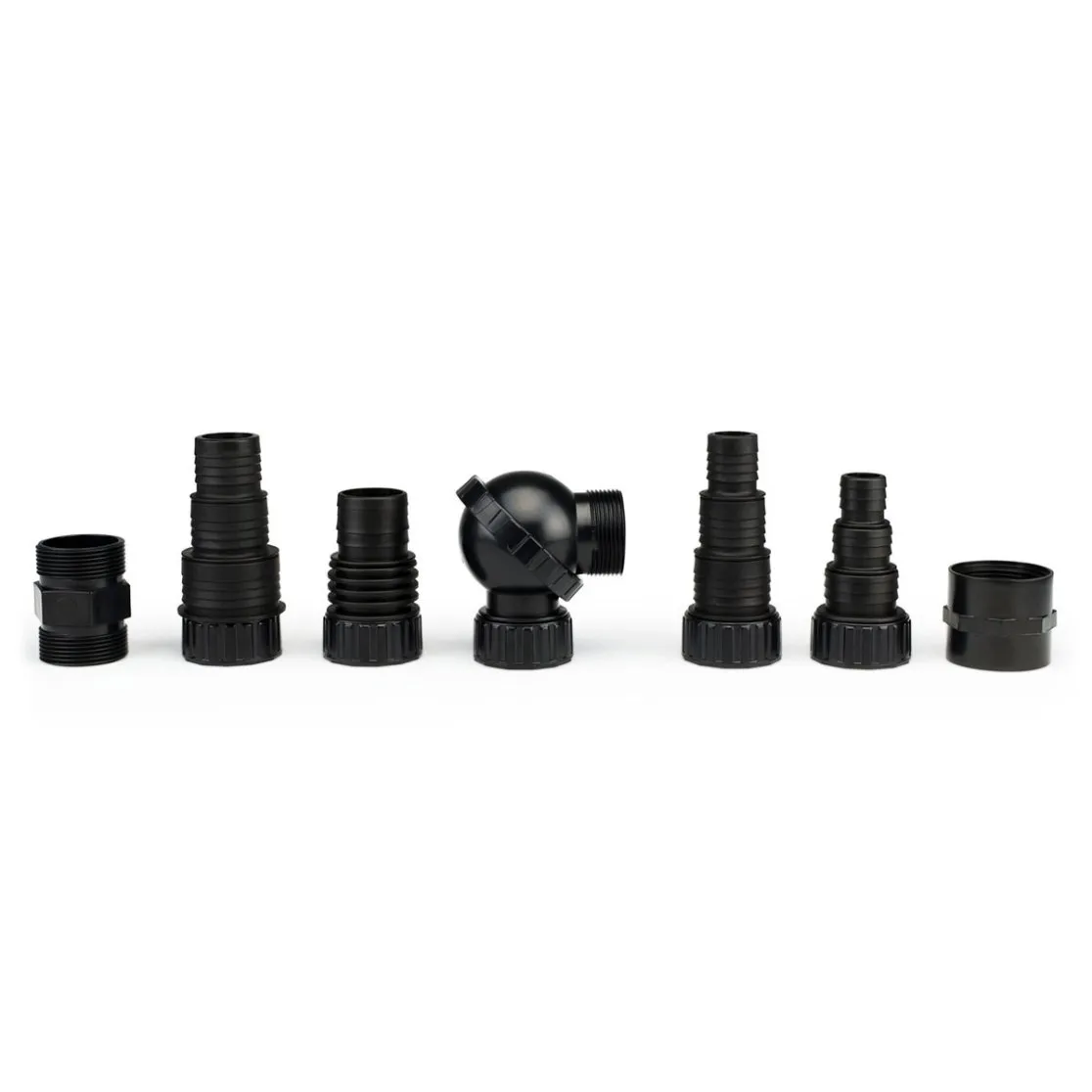

- Comes complete with all necessary fittings
- 3-Year Limited Warranty
AquaSurge Pump Flow Chart (gph)
| Model | Max Head Height | 0' | 5' | 10' | 15' | 20' | 25' | 30' | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000 | 12.5' | 2193 | 1850 | 1465 | ||||||||||||||||||||||||||||
| 3000 | 15' | 3196 | 2700 | 2350 | ||||||||||||||||||||||||||||
| 4000 | 18.5' | 3947 | 3750 | 3350 | 2250 | |||||||||||||||||||||||||||
| 5000 | 24' | 5284 | 5000 | 4750 | 3250 | 1750 | ||||||||||||||||||||||||||
| 2000-4000 | 18.5' | 3947 | 3750 | 3350 | 2250 | |||||||||||||||||||||||||||
| 4000-8000 | 28' | 7793 | 7350 | 7000 | 5850 | 4300 | 2000 |
Instruction Manuals

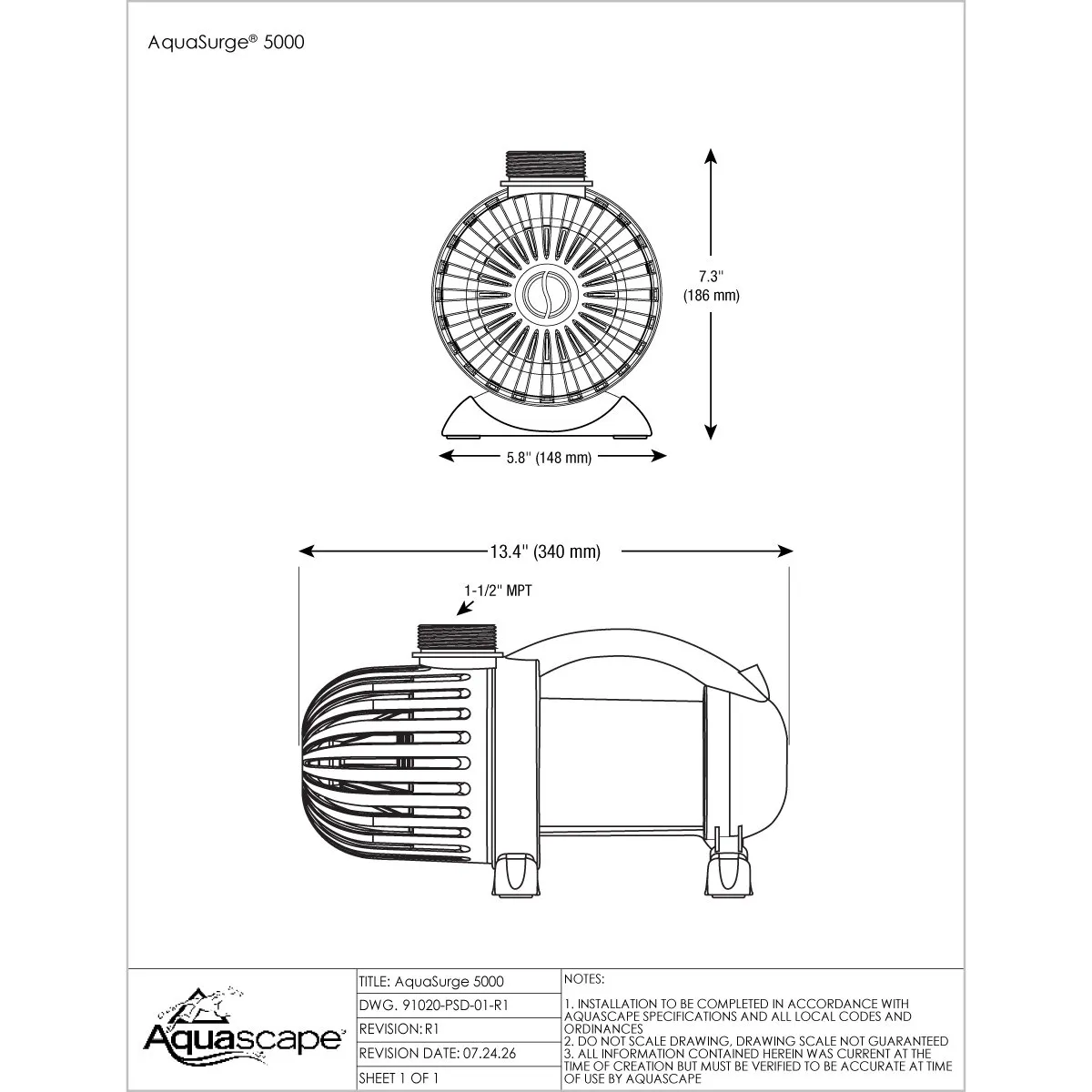

Data Sheets and Drawings
Guides
| Model | AquaSurge 2000 | AquaSurge 3000 | AquaSurge 4000 | AquaSurge 5000 | AquaSurge Adjustable Flow Pond Pump 2000-4000 | AquaSurge Adjustable Flow Pond Pump 4000-8000 |
|---|---|---|---|---|---|---|
| Item Number | 91017 | 91018 | 91019 | 91020 | 45009 | 45010 |
| Maximum Flow Rate | 2193 GPH / 8000 LPH | 3196 GPH / 12000 LPH | 3947 GPH / 14500 LPH | 5284 GPH / 20000 LPH | 3947 GPH / 14500 LPH | 7793 GPH / 29500 LPH |
| Adjustable Flow | ✘ | ✘ | ✘ | ✘ | ✔ | ✔ |
| Maximum Head Height | 12.5 feet | 15 feet | 18.5 feet | 24 feet | 18.5 feet | 28 feet |
| Motor Type | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous |
| Wattage | 160 | 165 | 215 | 360 | 180 to 215 | 500 to 660 |
| Amperage | 1.3 | 1.4 | 1.82 | 3 | 1.82 | 5.5 |
| Power Cord Length | 20 feet | 20 feet | 20 feet | 20 feet | 20 feet | 20 feet |
| Pump Discharge Diameter | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT | 1.5-inch MPT |
| Ideal Pipe Diameter | 1.5 or 2 inch | 1.5 or 2 inch | 1.5 or 2 inch | 2 inch | 1.5 or 2 inch | 2 or 3 inch |
| Pump Dimensions | 12 x 5.5 x 7 inches (LxWxH) | 12 x 5.5 x 7 inches (LxWxH) | 14 x 6 x 7.5 inches (LxWxH) | 14 x 6 x 7.5 inches (LxWxH) | 14 x 6 x 7.5 inches (LxWxH) | 14 x 6 x 7.5 inches (LxWxH) |
| App/WIFI Connected | ✘ | ✘ | ✘ | ✘ | ✔ | ✔ |
| Warranty (Limited) | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
