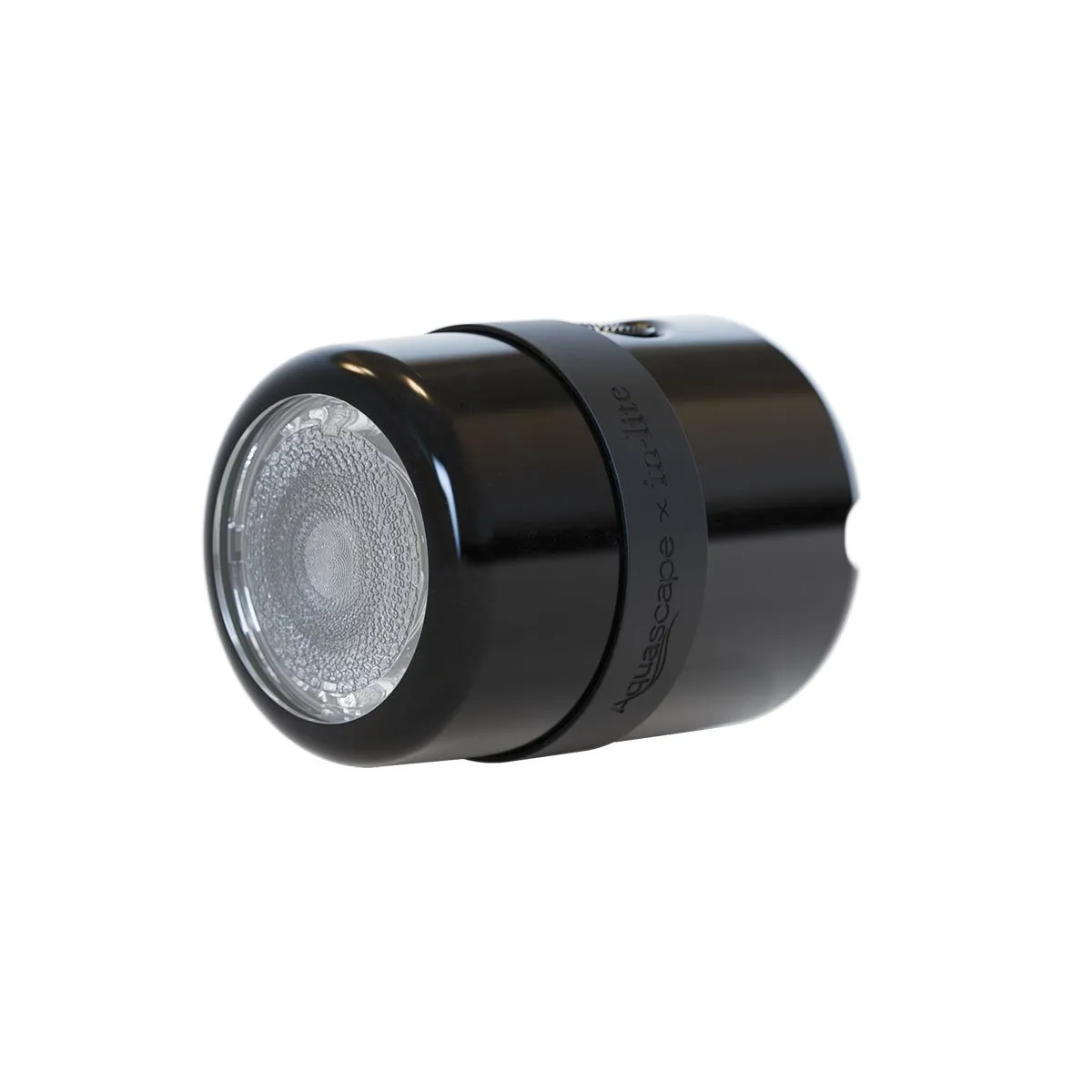

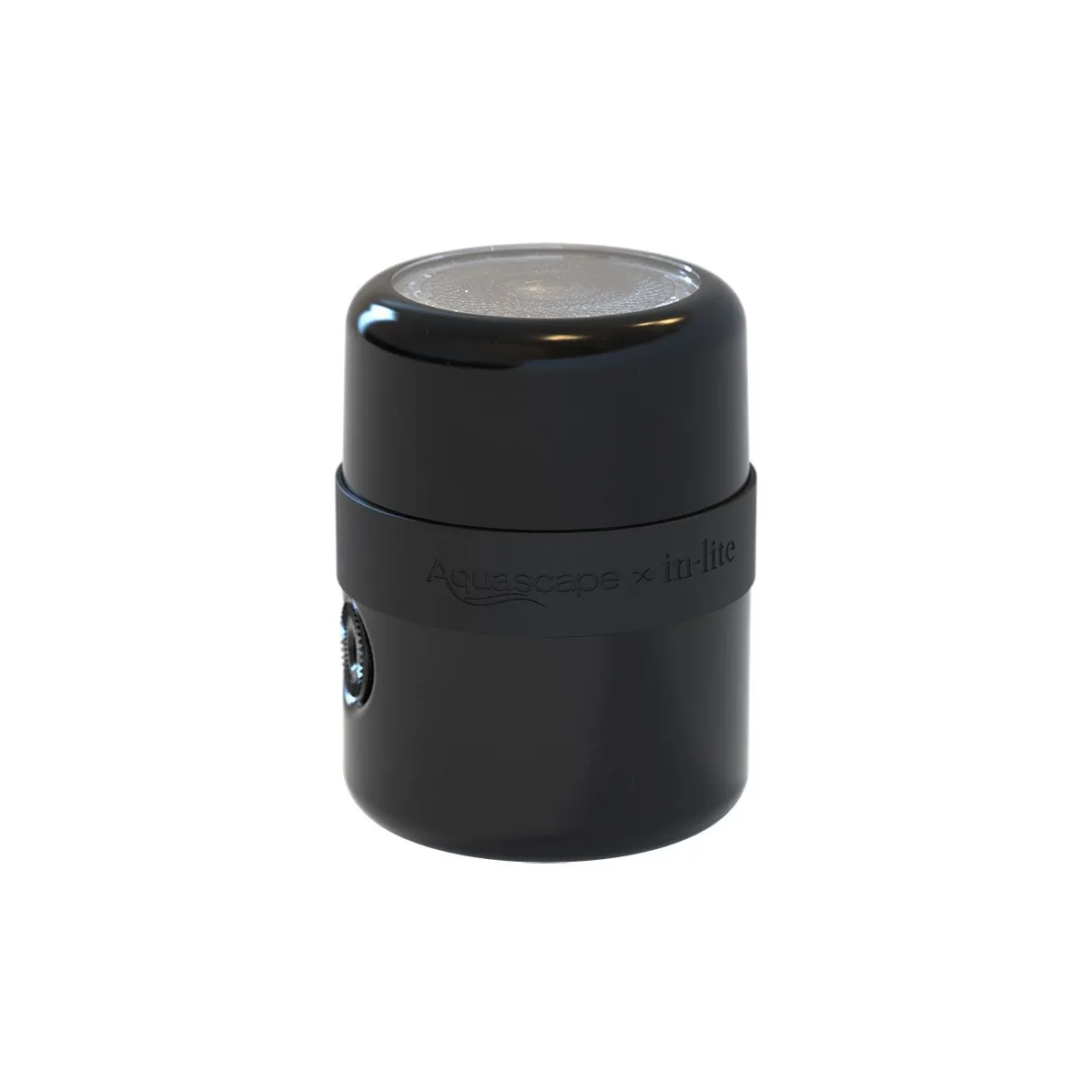

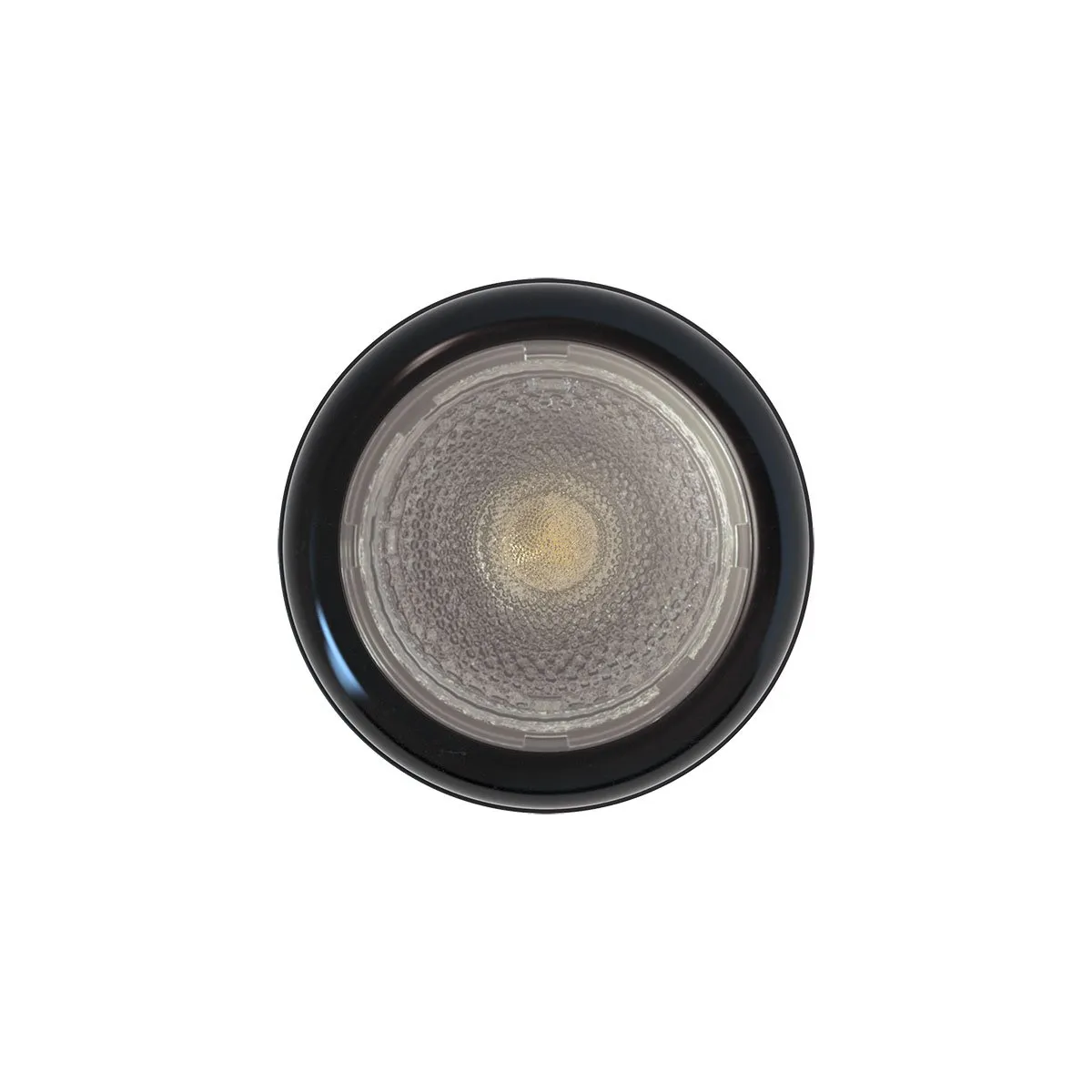

Aquascape® x in-lite® MINI BEAM

The Aquascape® x in-lite® MINI BEAM is a compact underwater LED spotlight designed for ponds, waterfalls, streams, fountains, and landscape features. Ideal for accent lighting and smaller water features, it delivers focused illumination while remaining easy to conceal.

Best For: Accent lighting, small waterfalls, streams, landscape details, and discreet installations.

Create subtle nighttime highlights that add depth, dimension, and visual interest to water features and surrounding landscapes.

Key Benefits

  • Compact design hides easily among rocks, plants, and waterfalls
  • Produces 124 lumens while consuming only 1.3 watts
  • Fully submersible with IP68 certification to depths of 10 feet
  • Fits inside standard 2-inch PVC for simplified installation and servicing
  • Warm 3000K light enhances water, stone, and landscape features
  • Includes Easy-Lock Connector for quick system integration
Categories: ,

NEW for 2027!

Please click here if you would like to be notified when this product is available.
WARNING - California Proposition 65 Learn More

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Ce produit contient des produits chimiques reconnus par l'État de Californie pour causer le cancer et des malformations congénitales ou d'autres problèmes de reproduction. Pour plus d'informations, visitez www.p65warnings.ca.gov

Compact Lighting for Small Features and Fine Details

Add subtle depth and dimension to ponds, waterfalls, streams, fountains, and landscape features with the Aquascape® x in-lite® MINI BEAM. The compact MINI BEAM is easy to conceal while delivering smooth, focused illumination for smaller water features, close-range details, and layered lighting designs.

The MINI BEAM uses a high-output LED and precision optics to create a consistent beam pattern with smooth illumination from edge to edge. The fixture produces 124 lumens while consuming just 1.3 watts, providing exceptional efficiency without sacrificing performance. Its warm 3000K color temperature and CRI of 93 reveal the natural colors and textures of water, stone, and surrounding plant material.

Built for Water Features

Designed specifically for Aquascape-style installations, the MINI BEAM features a flat-bottom housing that allows secure placement within rock walls, streams, waterfalls, and fountains. An integrated cord relief lets the power cord pass beneath the fixture for stable and clean positioning.

The fixture is engineered to fit inside standard flexible or rigid 2-inch PVC. This allows contractors to create accessible lighting niches inside rock walls for easy fixture adjustment and future servicing without disturbing surrounding stonework.

When the fixture cord needs to be extended underwater, the optional Aquascape Underwater Extension Kit adds 3 M of cord using the in-lite® compact mini-connector, the connection method used throughout the in-lite lighting system. The extension includes a gel-filled Aquascape WaterLock that encloses and secures the mini-connector, creating a watertight connection certified for underwater use.

Underwater Rated

The IP68-certified MINI BEAM can be installed fully submerged at depths up to 10 feet or used in traditional landscape applications. Every fixture includes a 6.5-foot cord and EASY-LOCK Connector for quick connection to the Aquascape x in-lite lighting system.

Installation Flexibility

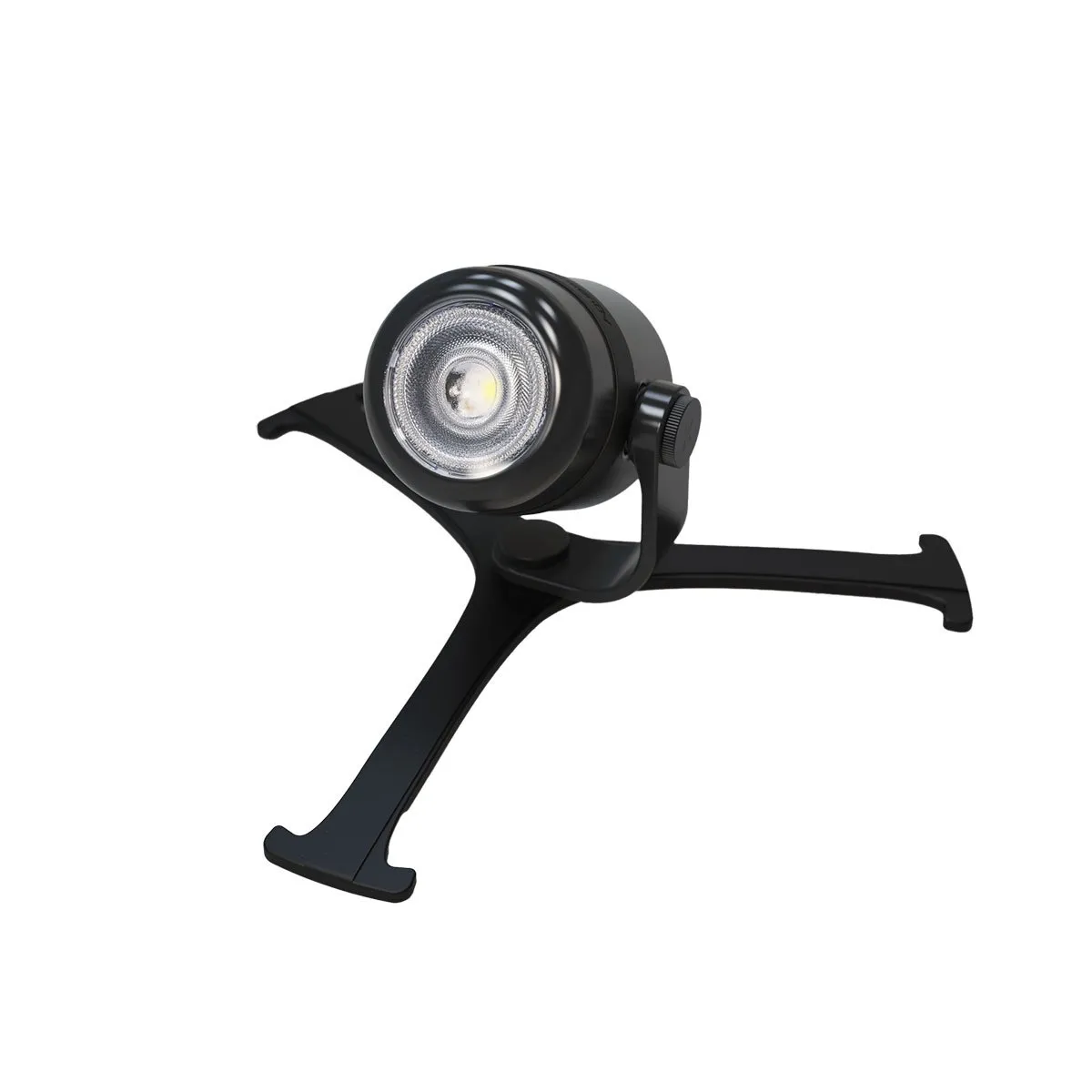

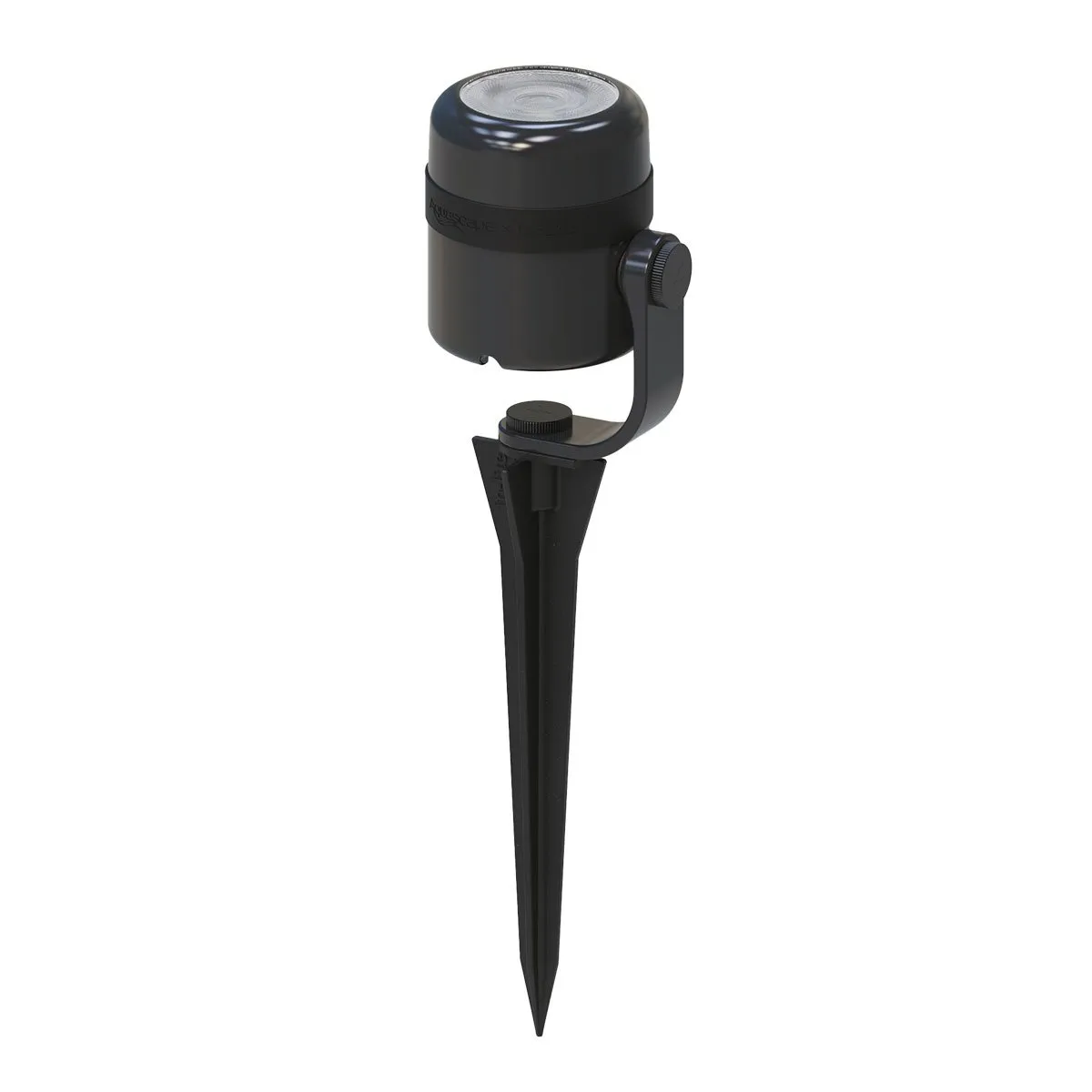

The MINI BEAM is compatible with several optional accessories that make installation easier in both underwater and traditional landscape applications. Extend wiring with the Underwater Extension Kit, adjust fixture placement using the Flexible Stand Kit or landscape Stake Kit, and reduce glare with the snap-on Visor.

Optional accessories make it easy to extend wiring, adjust fixture positioning, and reduce glare without modifying the installation.

Specifications

  • Light Output: 124 Lumens
  • Power Consumption: 1.3 Watts
  • Color Temperature: 3000K
  • CRI: 93
  • Beam Angle: 24°
  • Max Submersion Depth: 10 ft.
  • PVC Compatibility: 2-inch PVC
  • Warranty: 5 Years

Compatible Accessories

  • Aquascape Underwater Extension Kit
  • Landscape Stake Kit
  • Flexible Stand Kit
  • Snap-On Visor
