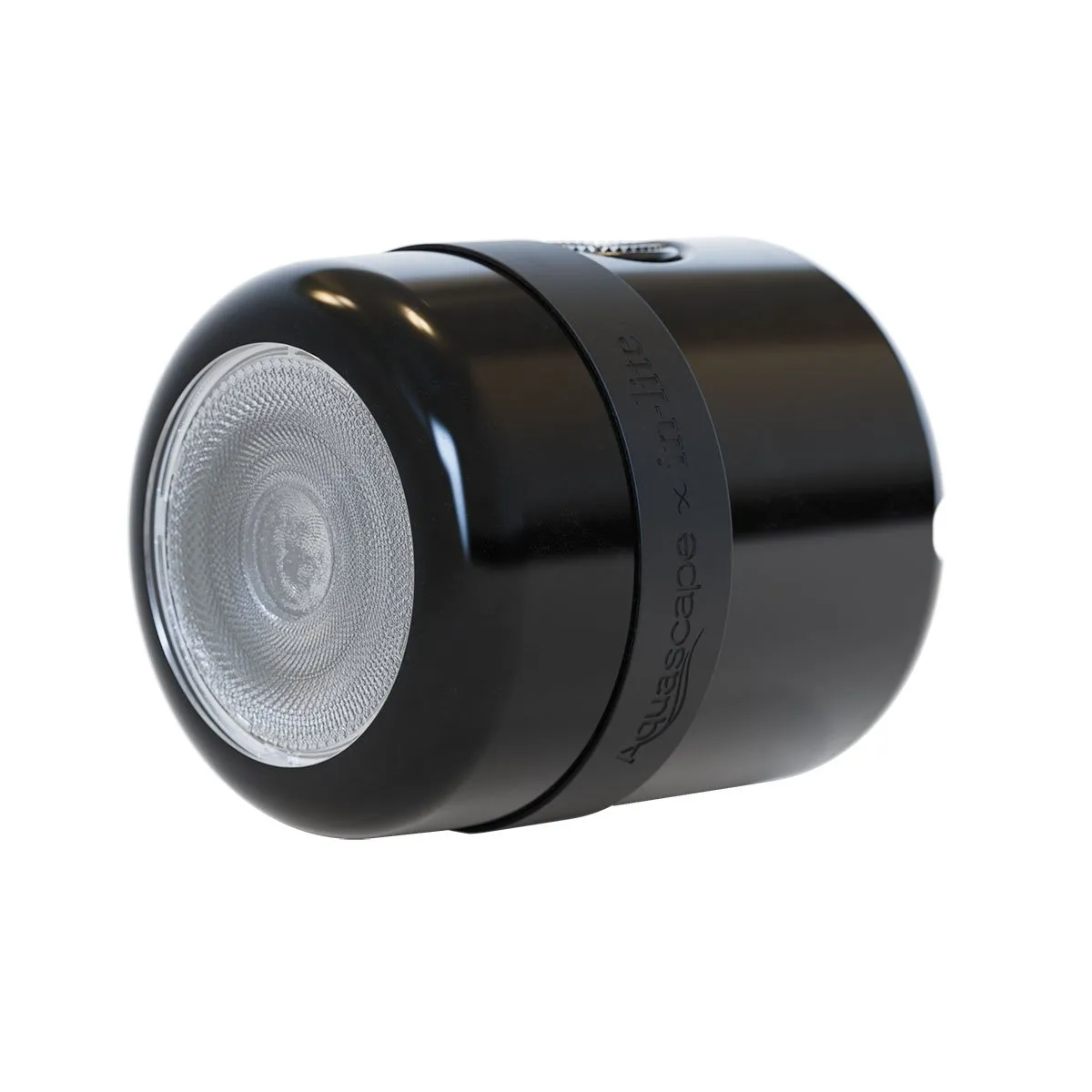

Big Beam Side

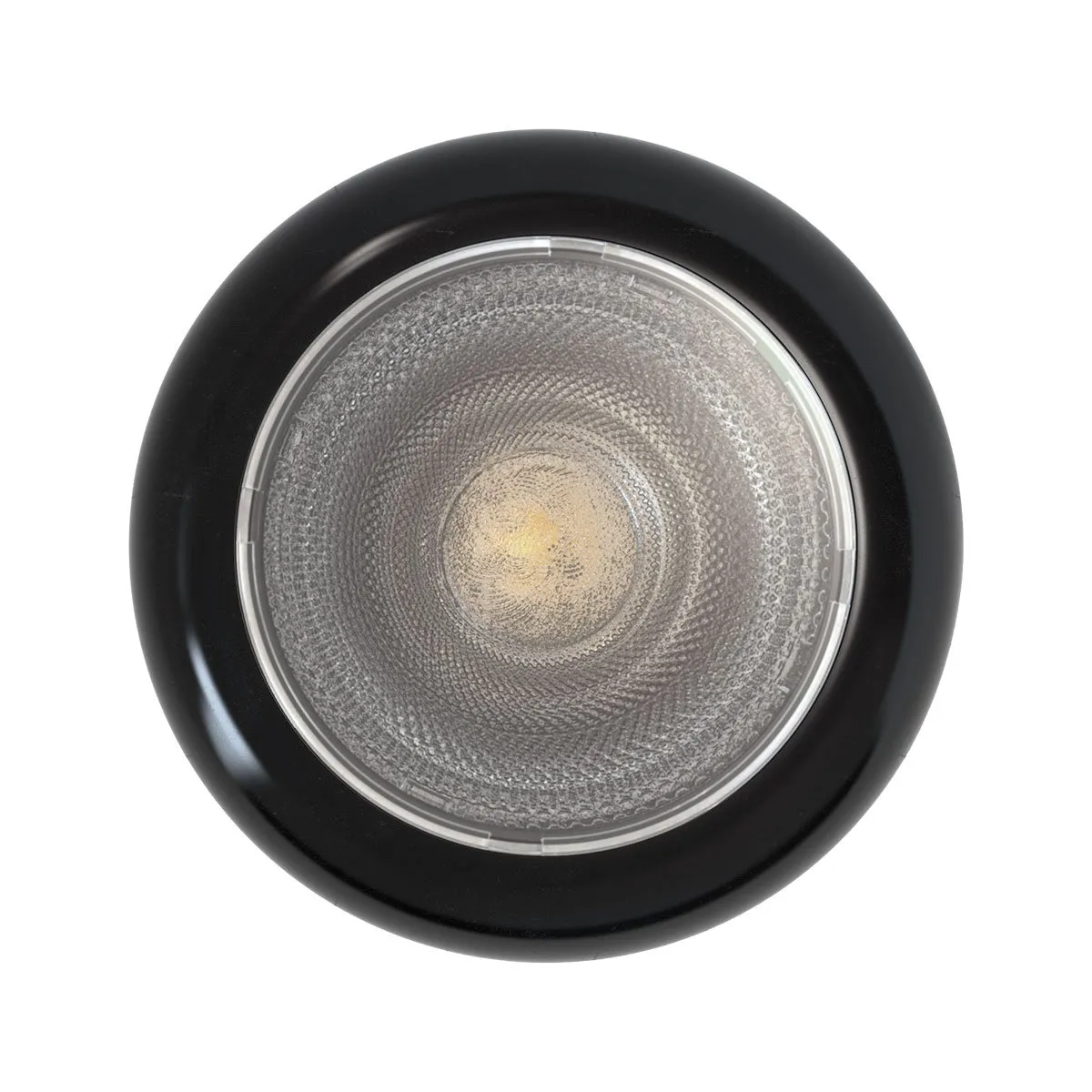

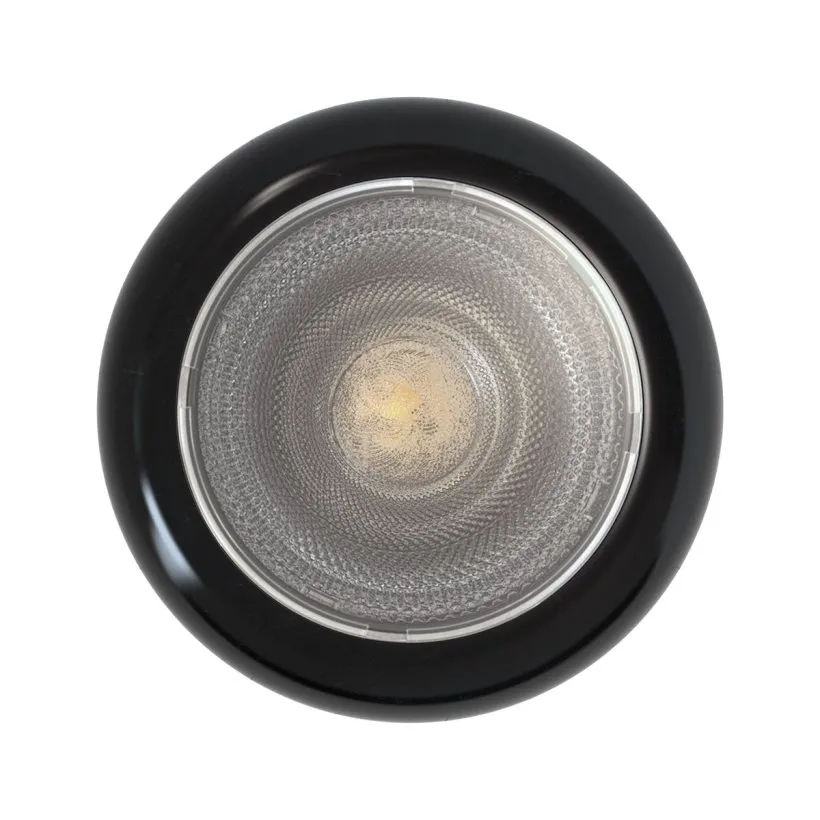

Big Beam Top

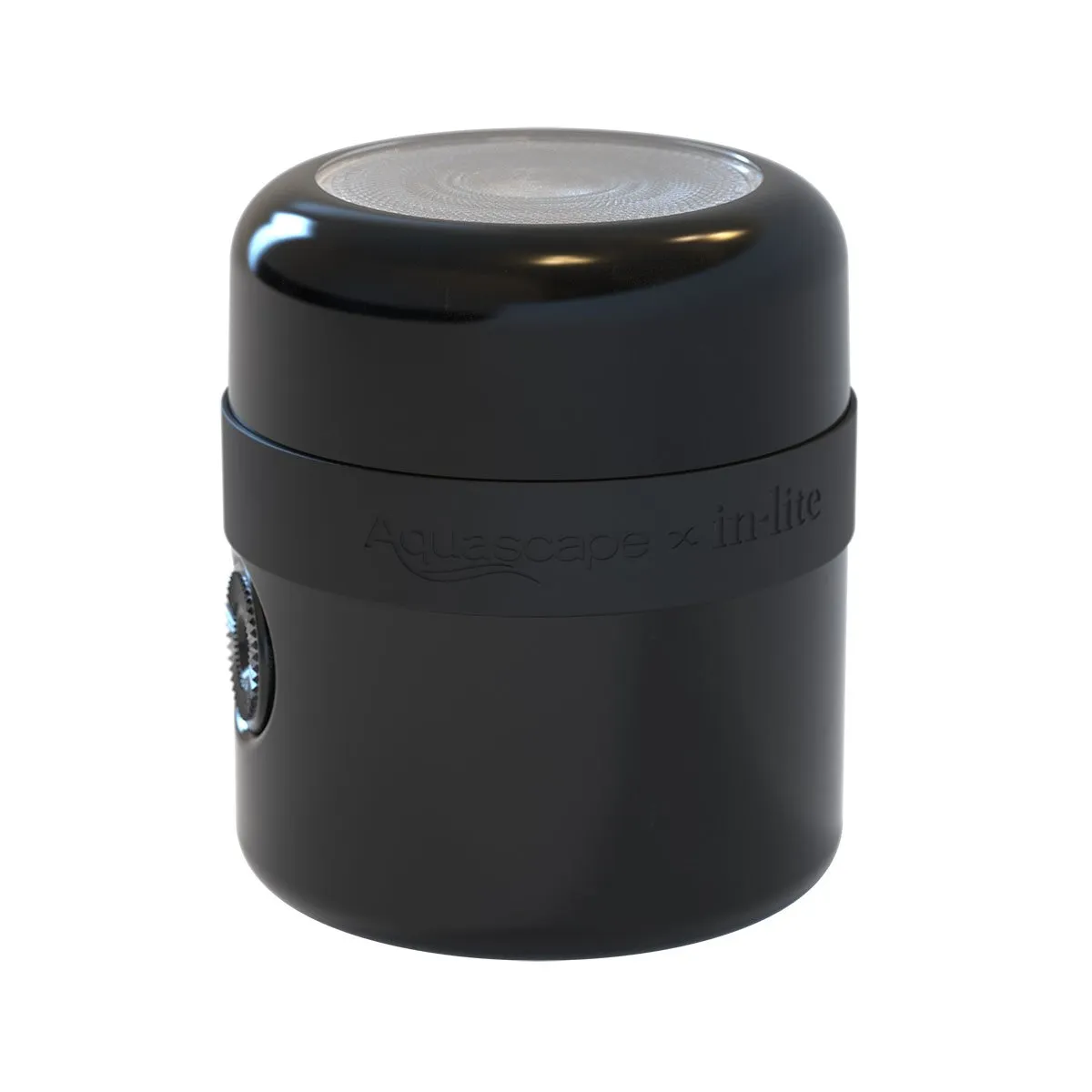

Big Beam

Aquascape® x in-lite® BIG BEAM

The Aquascape® x in-lite® BIG BEAM is a powerful underwater LED spotlight designed for ponds, waterfalls, streams, fountains, and landscape features. Ideal for larger water features and prominent focal points, it delivers maximum light output and visual impact while remaining compact and easy to install.

Best For: Large waterfalls, dramatic focal points, expansive ponds, and installations requiring maximum illumination.

Create bold nighttime displays with powerful, focused illumination that highlights the most important features in the landscape.

Key Benefits

  • Produces 439 lumens while consuming only 5.1 watts
  • Highest-output fixture in the Beam family
  • Fully submersible with IP68 certification to depths of 10 feet
  • Fits inside standard 3-inch PVC for simplified installation and servicing
  • Warm 3000K light enhances water, stone, and landscape features

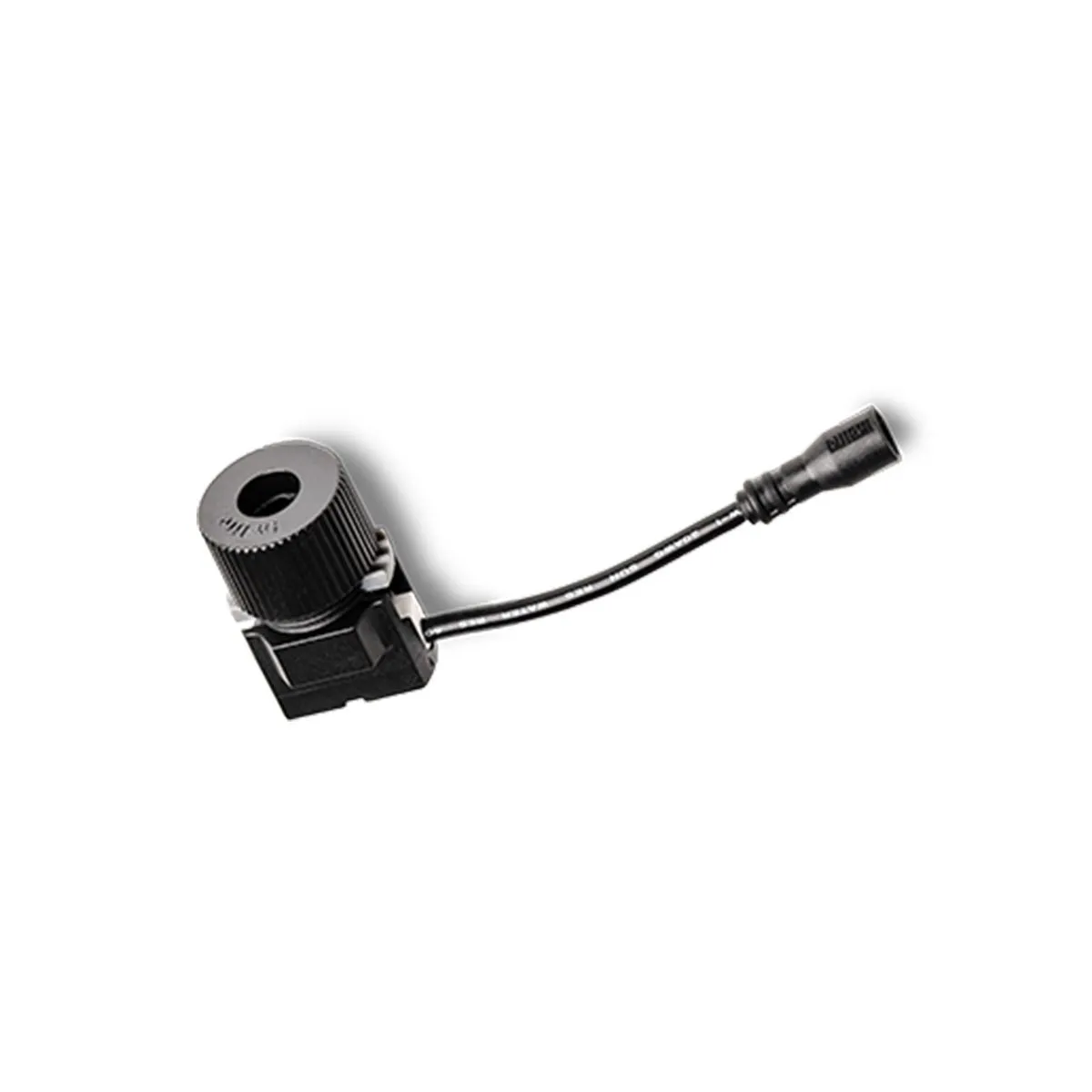

  • Includes EASY-LOCK connector for quick system integration
Categories: ,

NEW for 2027!

Please click here if you would like to be notified when this product is available.
WARNING - California Proposition 65 Learn More

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

Ce produit contient des produits chimiques reconnus par l'État de Californie pour causer le cancer et des malformations congénitales ou d'autres problèmes de reproduction. Pour plus d'informations, visitez www.p65warnings.ca.gov

Powerful Lighting for Large Features and Focal Points

Bring ponds, waterfalls, streams, fountains, and landscape features to life after dark with the Aquascape® x in-lite® BIG BEAM. Designed for larger water features and focal-point applications, the BIG BEAM provides powerful, focused illumination wherever greater light output is desired.

The BIG BEAM uses a high-output LED and precision optics to create a smooth, consistent beam pattern with even illumination from edge to edge. The fixture produces 439 lumens while consuming only 5.1 watts, delivering impressive performance with exceptional efficiency. Its warm 3000K color temperature and CRI of 92 reveal the natural colors and textures of water, stone, and surrounding plant material.

Built for Water Features

Designed specifically for Aquascape-style installations, the BIG BEAM features a flat-bottom housing that allows secure placement within rock walls, streams, waterfalls, and fountains. An integrated cord relief lets the power cord pass beneath the fixture for stable and clean positioning.

The fixture is engineered to fit inside standard flexible or rigid 3-inch PVC. This allows contractors to create accessible lighting niches inside rock walls for easy fixture adjustment and future servicing without disturbing surrounding stonework.

When the fixture cord needs to be extended underwater, the optional Aquascape Underwater Extension Kit adds 3 M of cord using the in-lite® compact mini-connector, the connection method used throughout the in-lite lighting system. The extension includes a gel-filled Aquascape WaterLock that encloses and secures the mini-connector, creating a watertight connection certified for underwater use.

Underwater Rated

The IP68-certified BIG BEAM can be installed fully submerged at depths up to 10 feet or used in traditional landscape applications. Every fixture includes a 6.5-foot cord and Easy-Lock Connector for quick connection to the Aquascape x in-lite lighting system.

Installation Flexibility

The BIG BEAM is compatible with several optional accessories that make installation easier in both underwater and traditional landscape applications. Extend wiring with the Underwater Extension Kit, adjust fixture placement using the Flexible Stand Kit or landscape Stake Kit, and reduce glare with the snap-on Visor.

Optional accessories make it easy to extend wiring, adjust fixture positioning, and reduce glare without modifying the installation.

Specifications

  • Light Output: 439 Lumens
  • Power Consumption: 5.1 Watts
  • Color Temperature: 3000K
  • CRI: 92
  • Beam Angle: 24°
  • Max Submersion Depth: 10 ft.
  • PVC Compatibility: 3-inch PVC
  • Warranty: 5 Years

Compatible Accessories

  • Aquascape Underwater Extension Kit
  • Landscape Stake Kit
  • Flexible Stand Kit
  • Snap-On Visor
