3-PL 3000 Solids-Handling Pond Pump

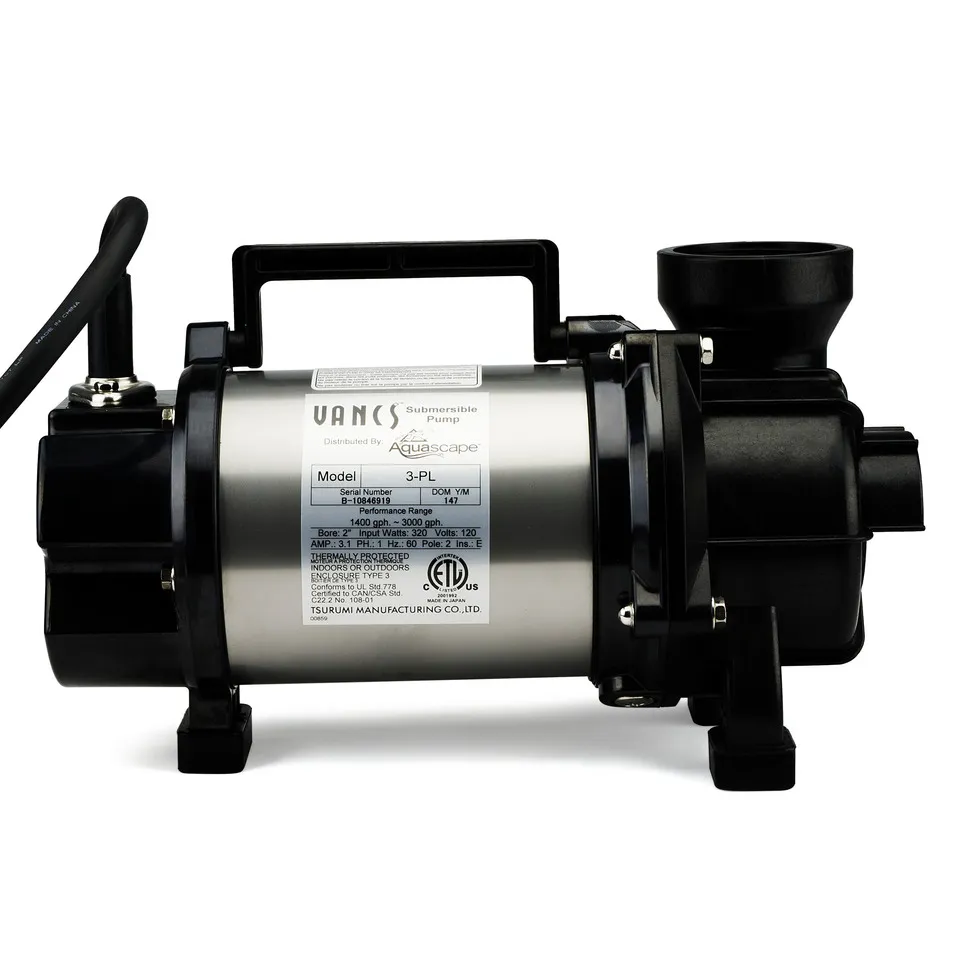

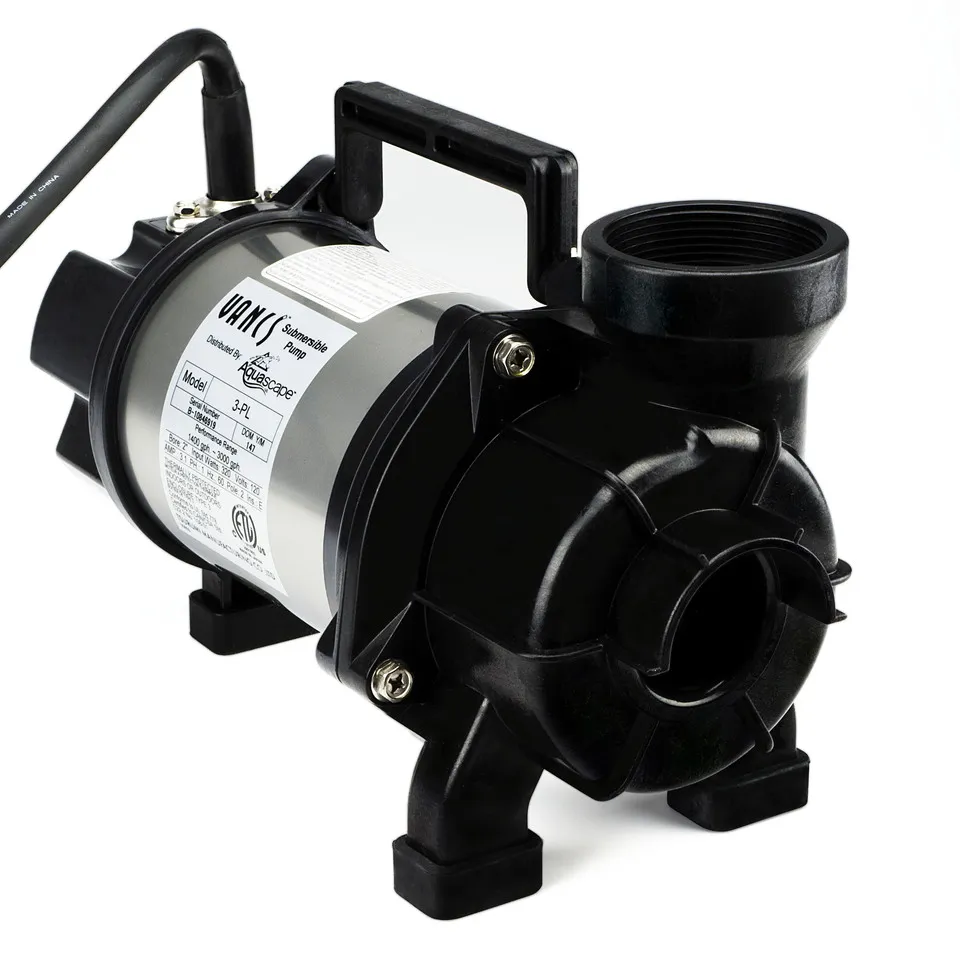

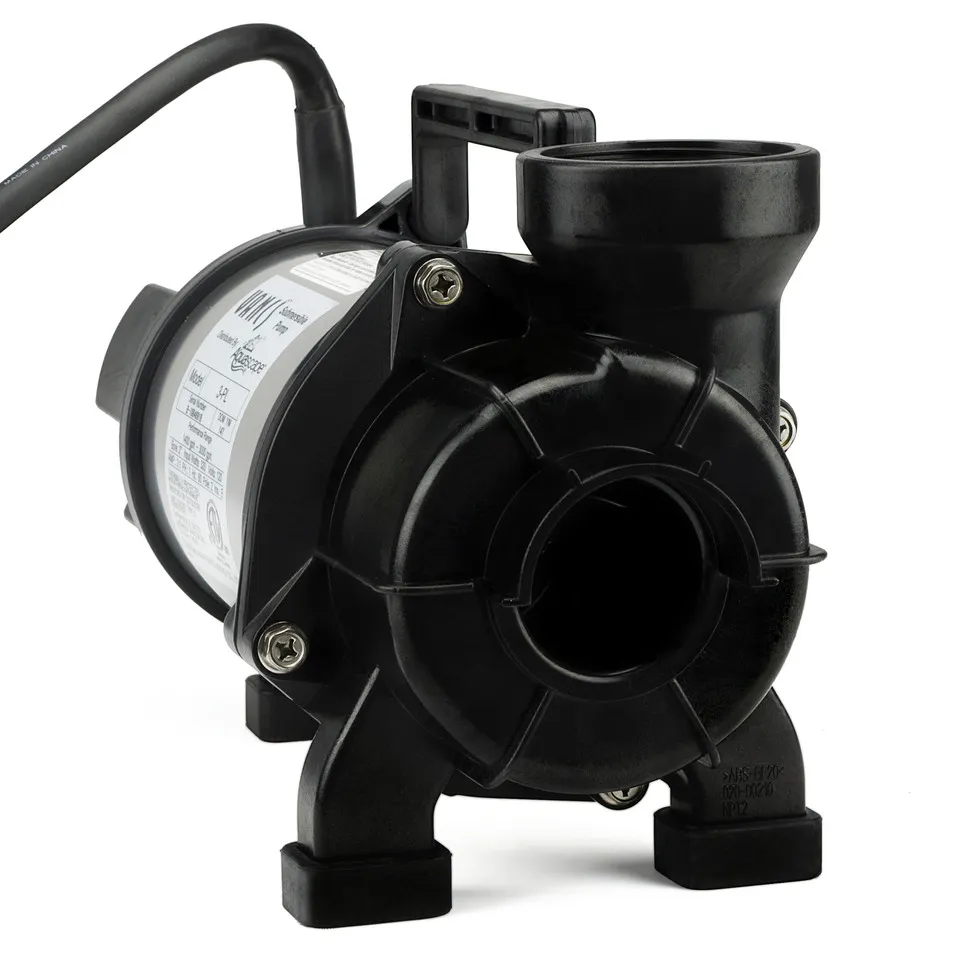

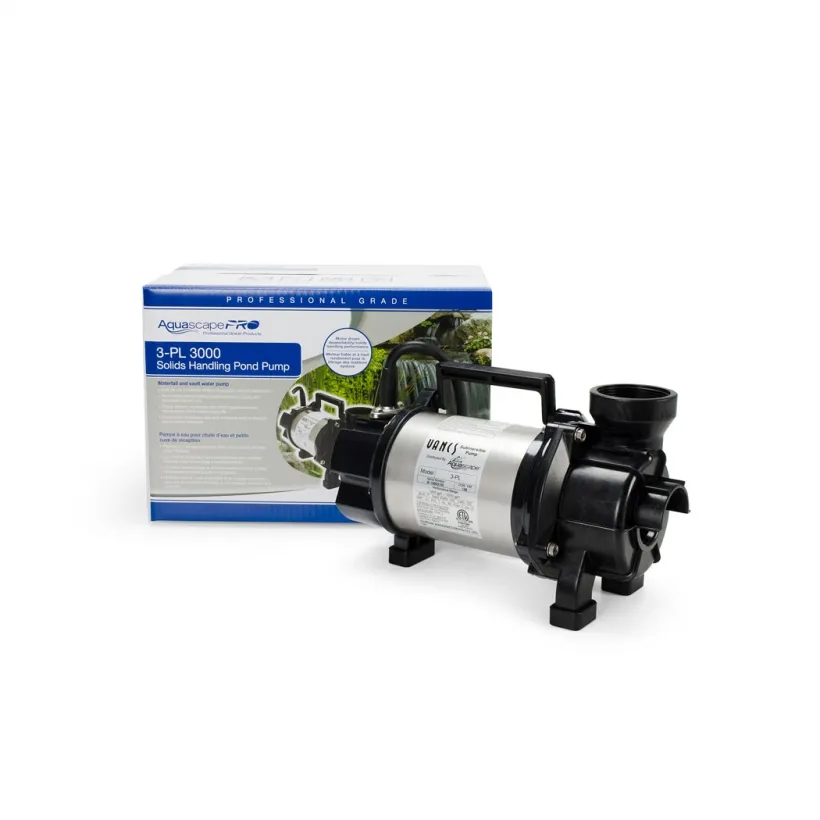

The Aquascape 3-PL 3000 Solids-Handling Pond Pump is ideal for use in ponds, Pondless® Waterfalls, and other water feature applications. Known for durability, performance, and value, the 3-PL 3000 Solids-Handling Pond Pump is constructed of stainless steel and composite resin for strength and corrosion resistance. The pump has a maximum flow rate up to 3,000 gallons per hour and its semi-vortex impeller design enables the pump to handle solids effectively, resulting in less maintenance and trouble-free performance. The energy-efficient, continuous-duty, direct-drive motor operates at lower temperatures, extending the life of the pump significantly. The pump also contains a built-in thermal overload, protecting it from damage if ever run in low-water conditions. The 2-inch threaded discharge makes installation quick and easy. The 3-PL 3000 Solids-Handling Pond Pump also carries a 2-year limited warranty.
$799.99
- Ideal for use in ponds, waterfalls, and other water features
- Constructed of stainless steel and composite resin for strength and corrosion resistance
- Maximum flow rate up to 3,000 gallons per hour
- Semi-vortex, solids-handling impeller decreases maintenance
- 2-Year Limited Warranty

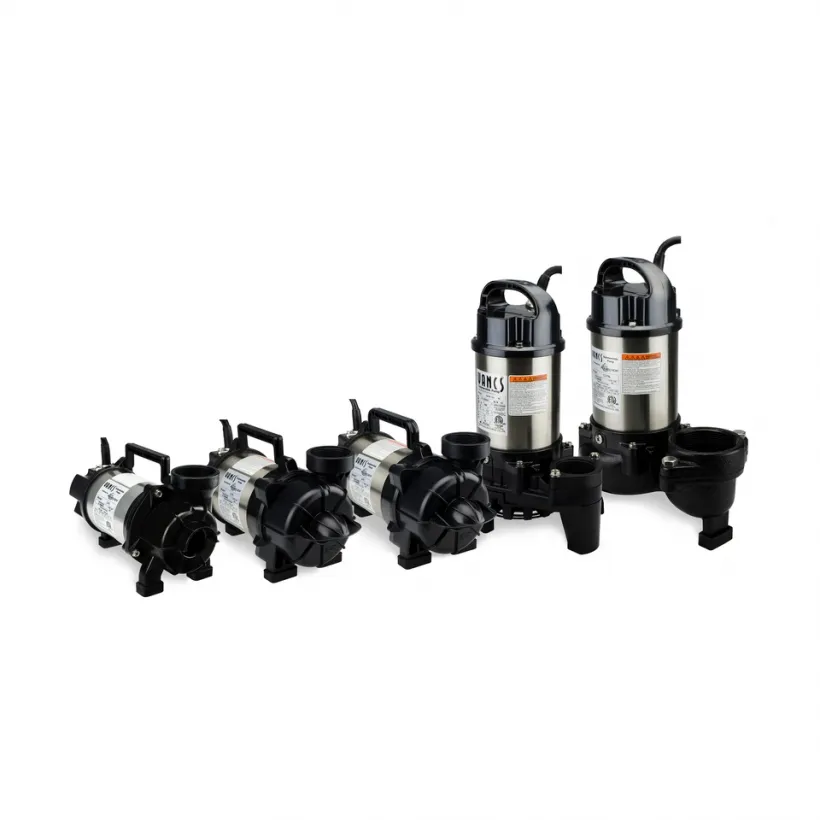

PL/PN Pump Flow Chart (gph)
| Model | Max Head Height | 0' | 5' | 10' | 15' | 20' | 25' | 30' | 35' | 40' | 45' | 50' | 55' | |||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3-PL | 14' | 3000 | 1700 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 5-PL | 23' | 5300 | 4500 | 3500 | 1800 | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| 9-PL | 35' | 7300 | 6400 | 5600 | 4900 | 4100 | 3000 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 8-PN | 56' | 5500 | 5200 | 4800 | 4300 | 3600 | 2800 | 2000 | 1500 | 600 | ||||||||||||||||||||||||||||||||||||||||||||||||
| 12-PN | 23' | 10000 | 7600 | 4600 | 1500 |
Instruction Manuals
CAD Details
Data Sheets and Drawings
Guides
| Model | 3PL |
|---|---|
| Item Number | 29975 |
| Maximum Flow Rate (GPH) | 3,000 |
| Maximum Head Height | 14 feet |
| Motor Type | Direct Drive |
| Wattage | 330 |
| Amperage | 3.2 |
| Power Cord Length | 20 feet |
| Pump Discharge Diameter | 2 inch |
| Ideal Pipe Diameter | 1.5 or 2 inch |

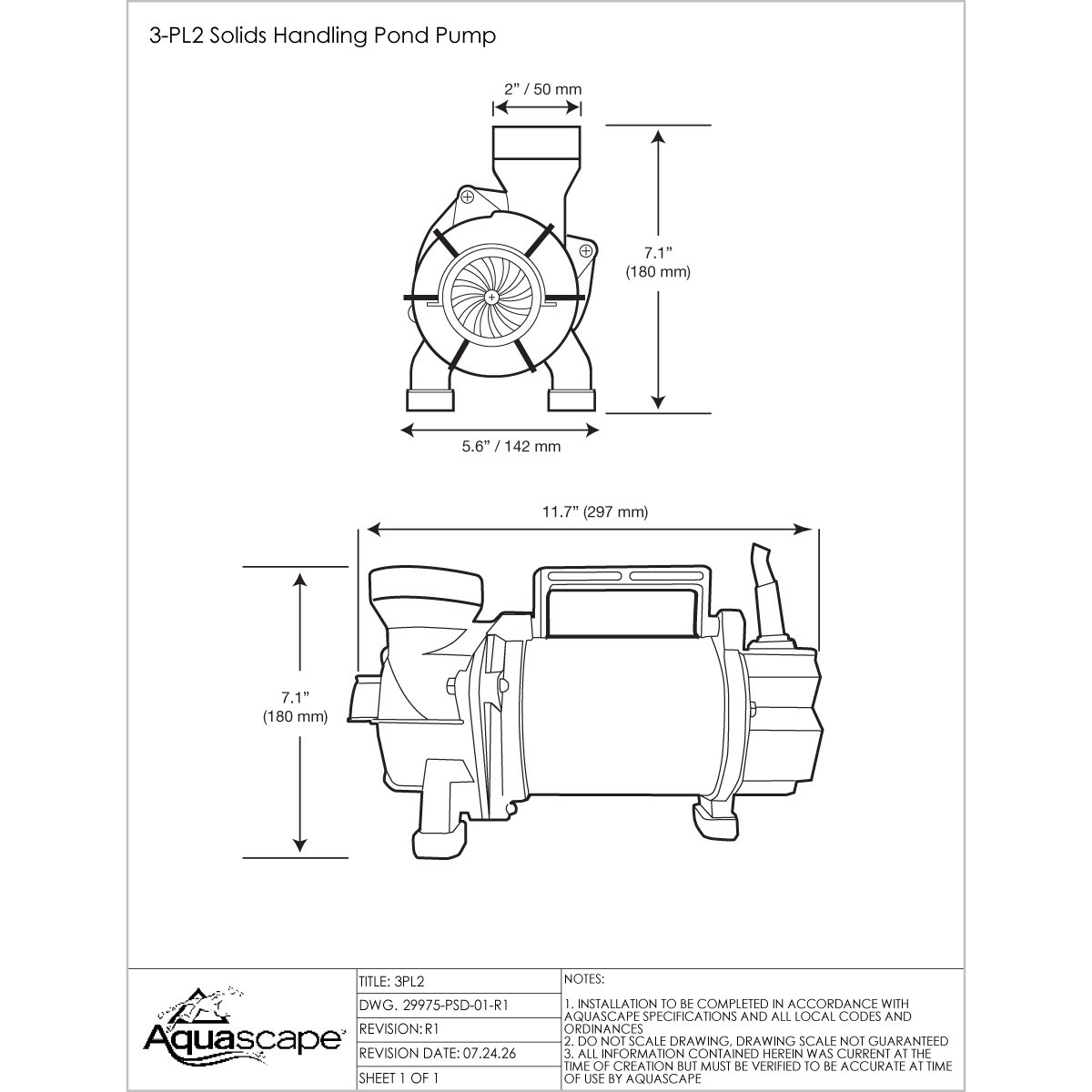

| Pump Dimensions | 11.7 x 5.6 x 7.1 inches (LxWxH) |
| Warranty (Limited) | 2 years |

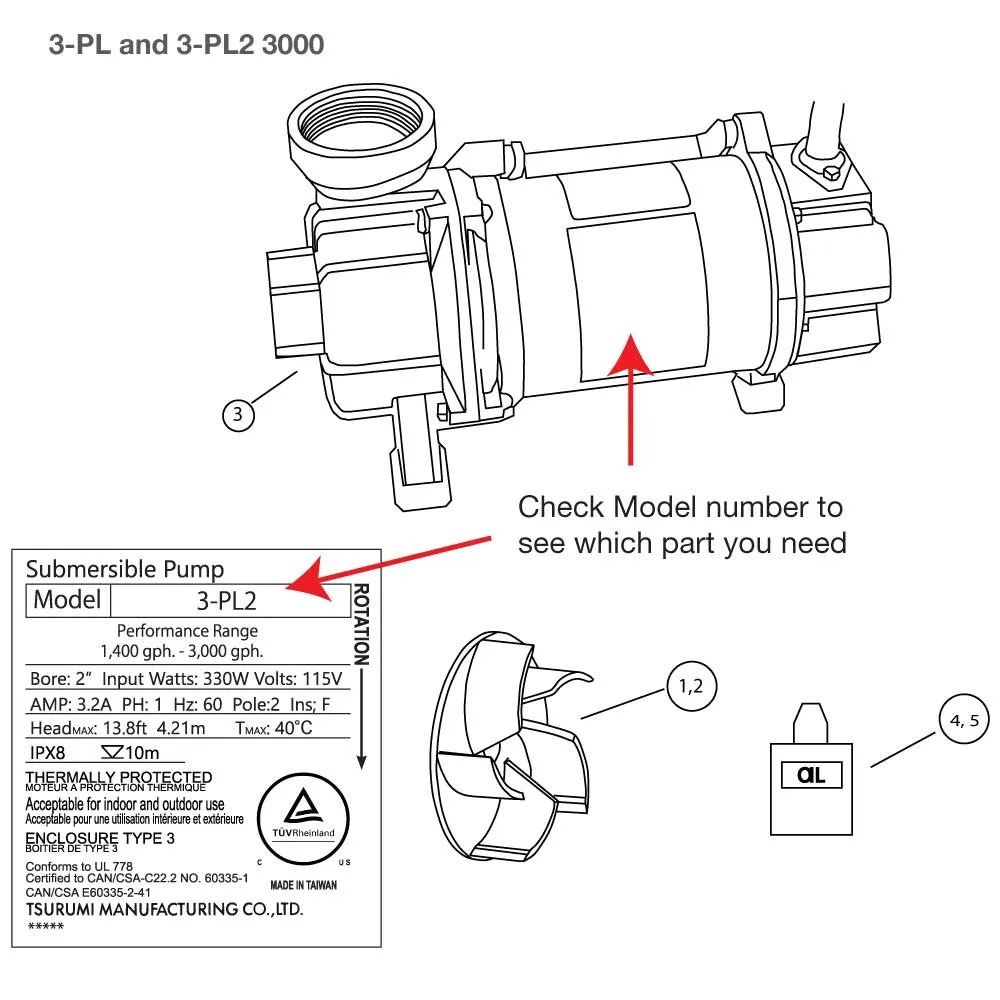

| Item Number | Image | Product | Price | Add to Cart |
|---|---|---|---|---|
1 |  | 3-PL2 3000 Impeller - 3-PLSKU: 30320 | $59.99 | |
2 |  | 3-PL 3000 CasingSKU: 30323 | $159.99 | |
3 |  | Replacement Oil - 3-PL (150 ml)SKU: 30212 | $29.99 | |
4 | | Replacement Oil - 3-PL2 (125ml)SKU: 45076 | $31.99 | |
5 |  | 3-PL Mechanical Seal KitSKU: 45059 | $69.99 |
